INTRODUCTION - ENGINE COOLING

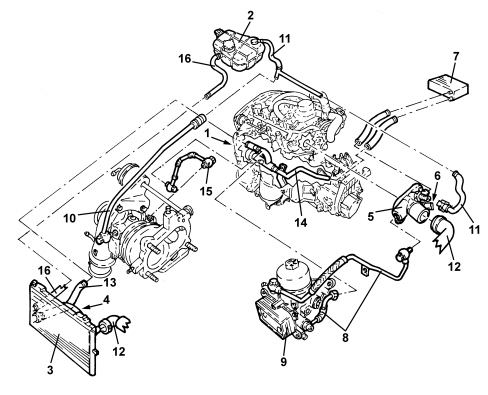

1.4 16v TJet

ENGINE COOLING SYSTEM

1. Water pump

2. System supply reservoir

3. Radiator

4. Fan

5. Thermostat

6. Water temperature sensor

7. Heater unit

8. Oil/coolant heat exchanger supply and return pipes

9. Coolant/oil heat exchanger

10. Turbocharger coolant supply pipes

11. Degassing pipe

12. Radiator supply pipe

13. Radiator outlet pipe

14. Water pump rigid return pipe

15. Turbocharger coolant return pipe

16. System supply pipe

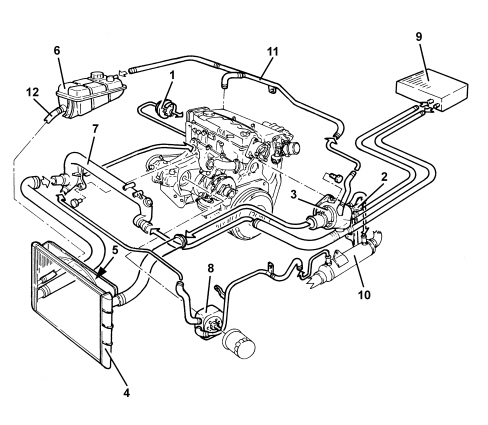

1.9 JTD 8v, 1.9 JTD 16v

ENGINE COOLING SYSTEM

1. Water pump

2. Water temperature sensor

3. Thermostat

4. Radiator

5. Fan

6. System supply reservoir

7. Water pump rigid return pipe

8. Water/engine oil heat exchanger

9. Heater

10. E.G.R. exhaust gas heat exchanger

11. Degassing pipe

12. System supply pipe

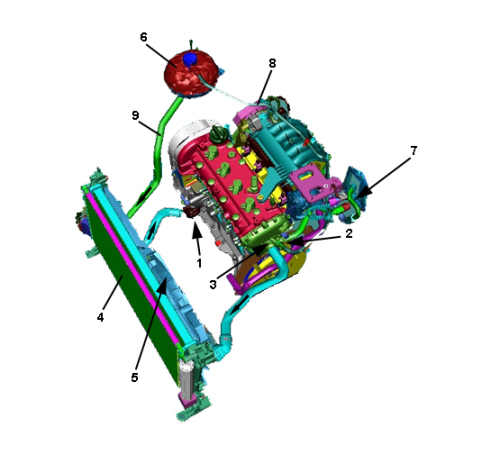

1.4 16v

ENGINE COOLING SYSTEM

The engine cooling system comprises the components illustrated in the diagram.

1. Water pump

2. Engine coolant temperature sensor

3. Thermostat

4. Radiator

5. Fan

6. System supply reservoir

7. Heater supply and return pipes

8. Degassing pipe

9. System supply pipe
