REVERSING LIGHTS - COMPONENT LOCATION

2.2, 1.9 JTD 8v, 1.9 JTD 16v

Component code	Description	Reference to the assembly
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A MULTI-FUNCTION COMPONENTS
B099	MAXI FUSE BOX ON BATTERY	Op. 5530B BATTERY AND LEADS
C015	DRIVER''S DASHBOARD EARTH
C020	PASSENGER SIDE DASHBOARD EARTH
C030	LEFT REAR EARTH
D001	FRONT/DASHBOARD COUPLING
D004	FRONT/ENGINE COUPLING
F035	LEFT REAR LIGHT CLUSTER (MOVING SECTION ON BOOT LID)	Op. 5540A LIGHTING
F036	RIGHT REAR LIGHT CLUSTER (MOVING SECTION ON BOOT LID)	Op. 5540A LIGHTING
H005	STEERING COLUMN SWITCH UNIT	Op. 5550A STALK UNIT
I020	REVERSING LIGHTS SWITCH
M001	BODY COMPUTER	Op. 5505A MULTI-FUNCTION COMPONENTS
M084	PARKING SENSOR CONTROL UNIT	Op. 5580H PARKING OBSTACLE DETECTION DEVICE
M173	DRIVE ALIGNMENT NODE
P020	RADIO	Op. 5570T CAR RADIO AND CAR TELEPHONE

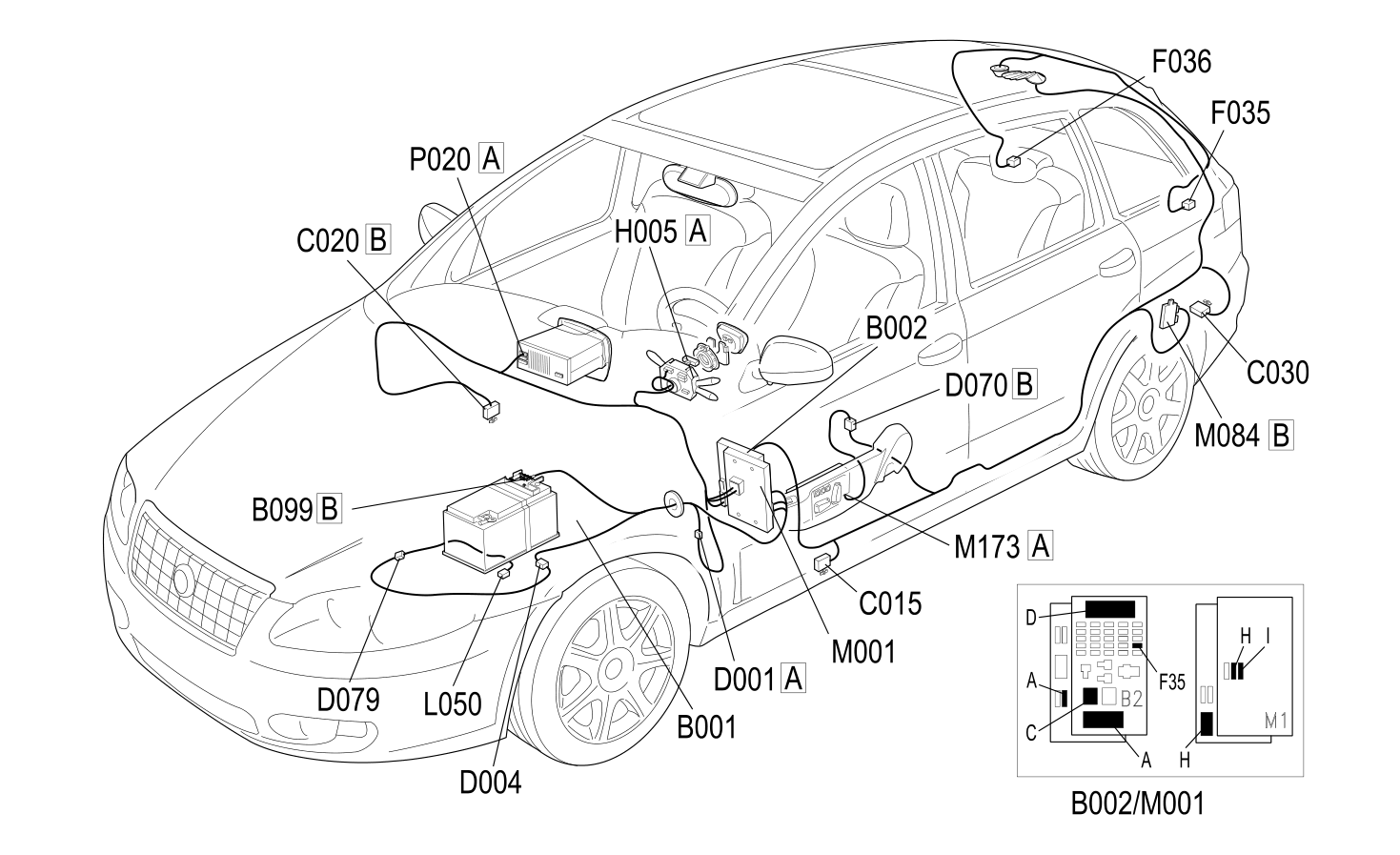

2.2 · AUTOMATIC TRANSMISSION

Component code	Description	Reference to the assembly
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A MULTI-FUNCTION COMPONENTS
B099	MAXI FUSE BOX ON BATTERY	Op. 5530B BATTERY AND LEADS
C015	DRIVER''S DASHBOARD EARTH
C020	PASSENGER SIDE DASHBOARD EARTH
C030	LEFT REAR EARTH
D001	FRONT/DASHBOARD COUPLING
D004	FRONT/ENGINE COUPLING
D079	TRANSMISSION SENSORS COUPLING
F035	LEFT REAR LIGHT CLUSTER (MOVING SECTION ON BOOT LID)	Op. 5540A LIGHTING
F036	RIGHT REAR LIGHT CLUSTER (MOVING SECTION ON BOOT LID)	Op. 5540A LIGHTING
H005	STEERING COLUMN SWITCH UNIT	Op. 5550A STALK UNIT
L050	AUTOMATIC TRANSMISSION SOLENOID VALVES	Op. 2130B AUTOMATIC TRANSMISSION COMPONENTS
M001	BODY COMPUTER	Op. 5505A MULTI-FUNCTION COMPONENTS
M084	PARKING SENSOR CONTROL UNIT	Op. 5580H PARKING OBSTACLE DETECTION DEVICE
M173	DRIVE ALIGNMENT NODE
P020	RADIO	Op. 5570T CAR RADIO AND CAR TELEPHONE

1.9 JTD 16v · AUTOMATIC TRANSMISSION

Component code	Description	Reference to the assembly
B001	ENGINE COMPARTMENT JUNCTION UNIT	Op. 5505A MULTI-FUNCTION COMPONENTS
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A MULTI-FUNCTION COMPONENTS
B099	MAXI FUSE BOX ON BATTERY	Op. 5530B BATTERY AND LEADS
C015	DRIVER''S DASHBOARD EARTH
C020	PASSENGER SIDE DASHBOARD EARTH
C030	LEFT REAR EARTH
C060	INJECTION CONTROL UNIT EARTH
D001	FRONT/DASHBOARD COUPLING
D004	FRONT/ENGINE COUPLING
F035	LEFT REAR LIGHT CLUSTER (MOVING SECTION ON BOOT LID)	Op. 5540A LIGHTING
F036	RIGHT REAR LIGHT CLUSTER (MOVING SECTION ON BOOT LID)	Op. 5540A LIGHTING
H005	STEERING COLUMN SWITCH UNIT	Op. 5550A STALK UNIT
M001	BODY COMPUTER	Op. 5505A MULTI-FUNCTION COMPONENTS
M055	AUTOMATIC TRANSMISSION CONTROL UNIT	Op. 2135B AUTOMATIC TRANSMISSION ELECTRICAL CONTROLS
M084	PARKING SENSOR CONTROL UNIT	Op. 5580H PARKING OBSTACLE DETECTION DEVICE
M173	DRIVE ALIGNMENT NODE
P020	RADIO	Op. 5570T CAR RADIO AND CAR TELEPHONE

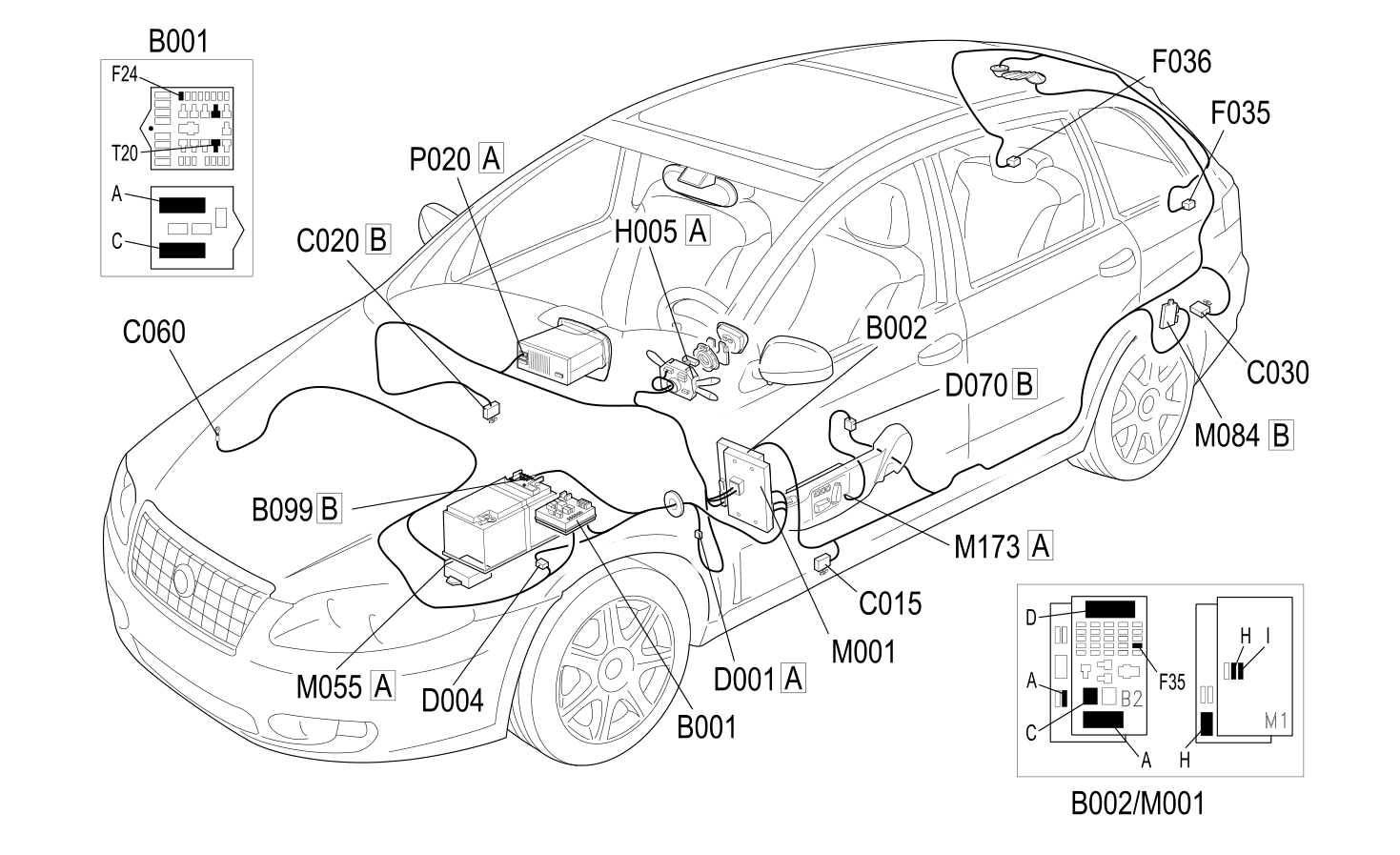

2.4 JTD 20v

Component code	Description	Reference to the assembly
B001	ENGINE COMPARTMENT JUNCTION UNIT	Op. 5505A MULTI-FUNCTION COMPONENTS
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A MULTI-FUNCTION COMPONENTS
B099	MAXI FUSE BOX ON BATTERY	Op. 5530B BATTERY AND LEADS
C015	DRIVER''S DASHBOARD EARTH
C020	PASSENGER SIDE DASHBOARD EARTH
C030	LEFT REAR EARTH
C060	INJECTION CONTROL UNIT EARTH
D001	FRONT/DASHBOARD COUPLING
D004	FRONT/ENGINE COUPLING
F035	LEFT REAR LIGHT CLUSTER (MOVING SECTION ON BOOT LID)	Op. 5540A LIGHTING
F036	RIGHT REAR LIGHT CLUSTER (MOVING SECTION ON BOOT LID)	Op. 5540A LIGHTING
H005	STEERING COLUMN SWITCH UNIT	Op. 5550A STALK UNIT
M001	BODY COMPUTER	Op. 5505A MULTI-FUNCTION COMPONENTS
M055	AUTOMATIC TRANSMISSION CONTROL UNIT	Op. 2135B AUTOMATIC TRANSMISSION ELECTRICAL CONTROLS
M084	PARKING SENSOR CONTROL UNIT	Op. 5580H PARKING OBSTACLE DETECTION DEVICE
M173	DRIVE ALIGNMENT NODE
P020	RADIO	Op. 5570T CAR RADIO AND CAR TELEPHONE

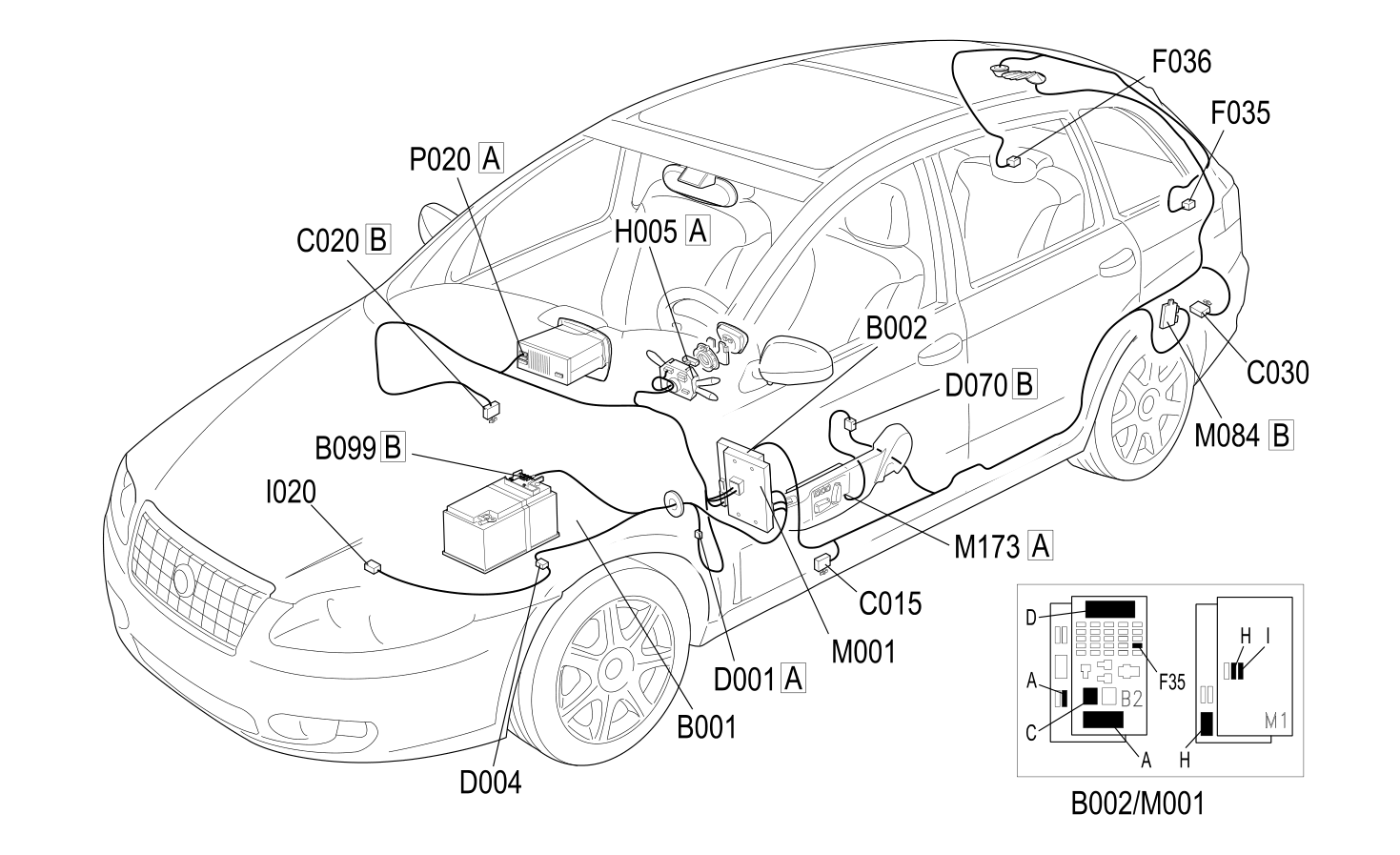

1.8

Component code	Description	Reference to the assembly
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A MULTI-FUNCTION COMPONENTS
B099	MAXI FUSE BOX ON BATTERY	Op. 5530B BATTERY AND LEADS
C015	DRIVER''S DASHBOARD EARTH
C020	PASSENGER SIDE DASHBOARD EARTH
C030	LEFT REAR EARTH
D001	FRONT/DASHBOARD COUPLING
D004	FRONT/ENGINE COUPLING
F035	LEFT REAR LIGHT CLUSTER (MOVING SECTION ON BOOT LID)	Op. 5540A LIGHTING
F036	RIGHT REAR LIGHT CLUSTER (MOVING SECTION ON BOOT LID)	Op. 5540A LIGHTING
H005	STEERING COLUMN SWITCH UNIT	Op. 5550A STALK UNIT
I020	REVERSING LIGHTS SWITCH	Op. 5550D BRAKE AND REVERSING LIGHTS
M001	BODY COMPUTER	Op. 5505A MULTI-FUNCTION COMPONENTS
M084	PARKING SENSOR CONTROL UNIT	Op. 5580H PARKING OBSTACLE DETECTION DEVICE
M173	DRIVE ALIGNMENT NODE	Op. 7045J FRONT SEAT ELECTRIC MOVEMENTS
P020	RADIO	Op. 5570T CAR RADIO AND CAR TELEPHONE
