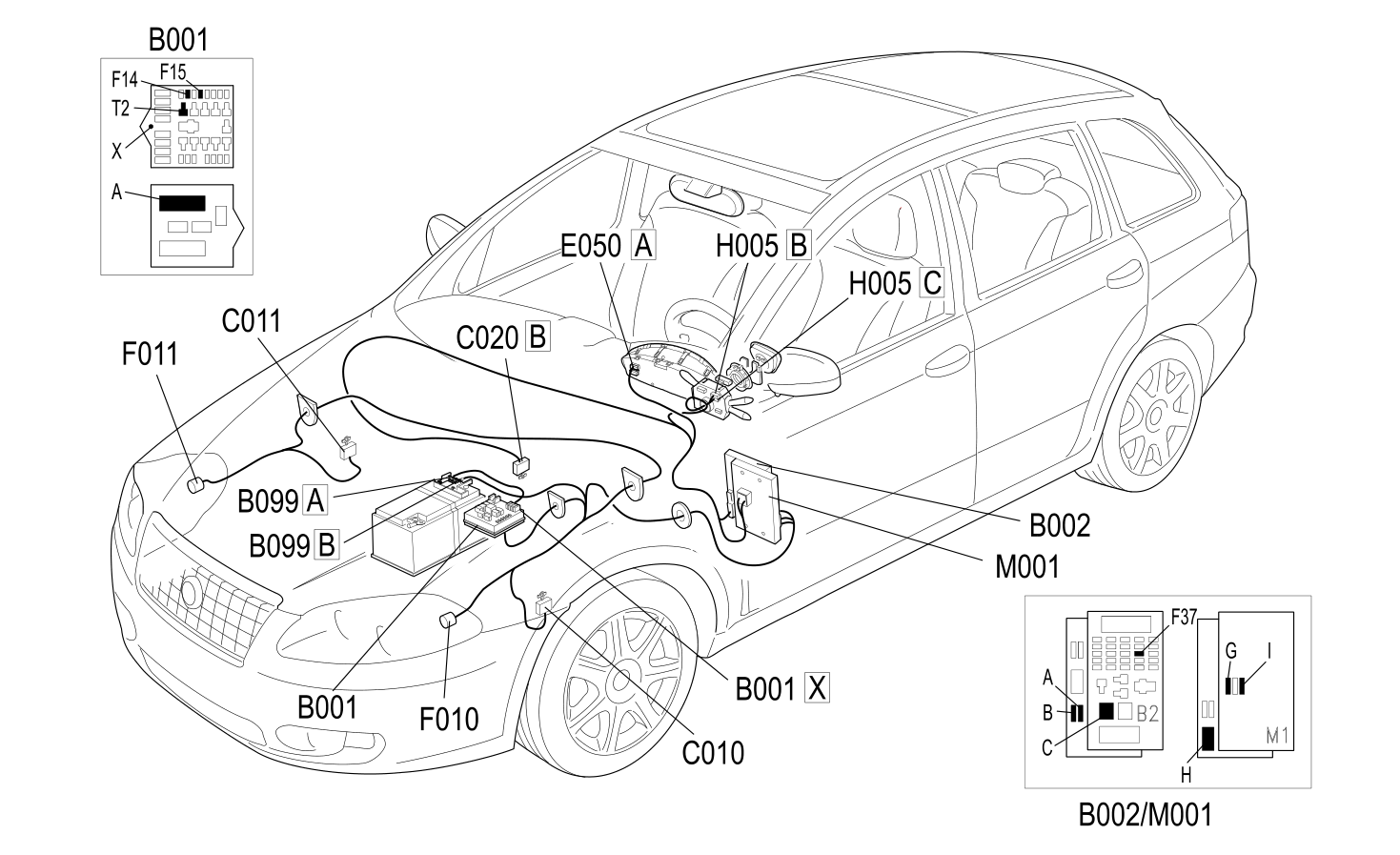

HIGH BEAMS COMPONENT LOCATION
| Component code | Description | Reference to the assembly |
|---|---|---|
| B001 | ENGINE COMPARTMENT JUNCTION UNIT | Op. 5505A MULTI-FUNCTION COMPONENTS |
| B002 | JUNCTION UNIT UNDER DASHBOARD | Op. 5505A MULTI-FUNCTION COMPONENTS |
| B099 | MAXI FUSE BOX ON BATTERY | Op. 5530B BATTERY AND LEADS |
| C010 | LEFT FRONT EARTH | |
| C011 | RIGHT FRONT EARTH | |
| C020 | PASSENGER SIDE DASHBOARD EARTH | |
| E050 | INSTRUMENT PANEL | Op. 5560B ANALOGUE CONTROL PANEL |
| F010 | LEFT HEADLAMP | Op. 5540B HEADLAMPS |
| F011 | RIGHT HEADLAMP | Op. 5540B HEADLAMPS |
| H005 | STEERING COLUMN SWITCH UNIT | Op. 5550A STALK UNIT |
| M001 | BODY COMPUTER | Op. 5505A MULTI-FUNCTION COMPONENTS |
| Component code | Description | Reference to the assembly |
|---|---|---|
| B001 | ENGINE COMPARTMENT JUNCTION UNIT | Op. 5505A MULTI-FUNCTION COMPONENTS |
| B002 | JUNCTION UNIT UNDER DASHBOARD | Op. 5505A MULTI-FUNCTION COMPONENTS |
| B099 | MAXI FUSE BOX ON BATTERY | Op. 5530B BATTERY AND LEADS |
| C010 | LEFT FRONT EARTH | |
| C011 | RIGHT FRONT EARTH | |
| C020 | PASSENGER SIDE DASHBOARD EARTH | |
| E050 | INSTRUMENT PANEL | Op. 5560B ANALOGUE CONTROL PANEL |
| F010 | LEFT HEADLAMP | Op. 5540B HEADLAMPS |
| F011 | RIGHT HEADLAMP | Op. 5540B HEADLAMPS |
| H005 | STEERING COLUMN SWITCH UNIT | Op. 5550A STALK UNIT |
| M001 | BODY COMPUTER | Op. 5505A MULTI-FUNCTION COMPONENTS |
