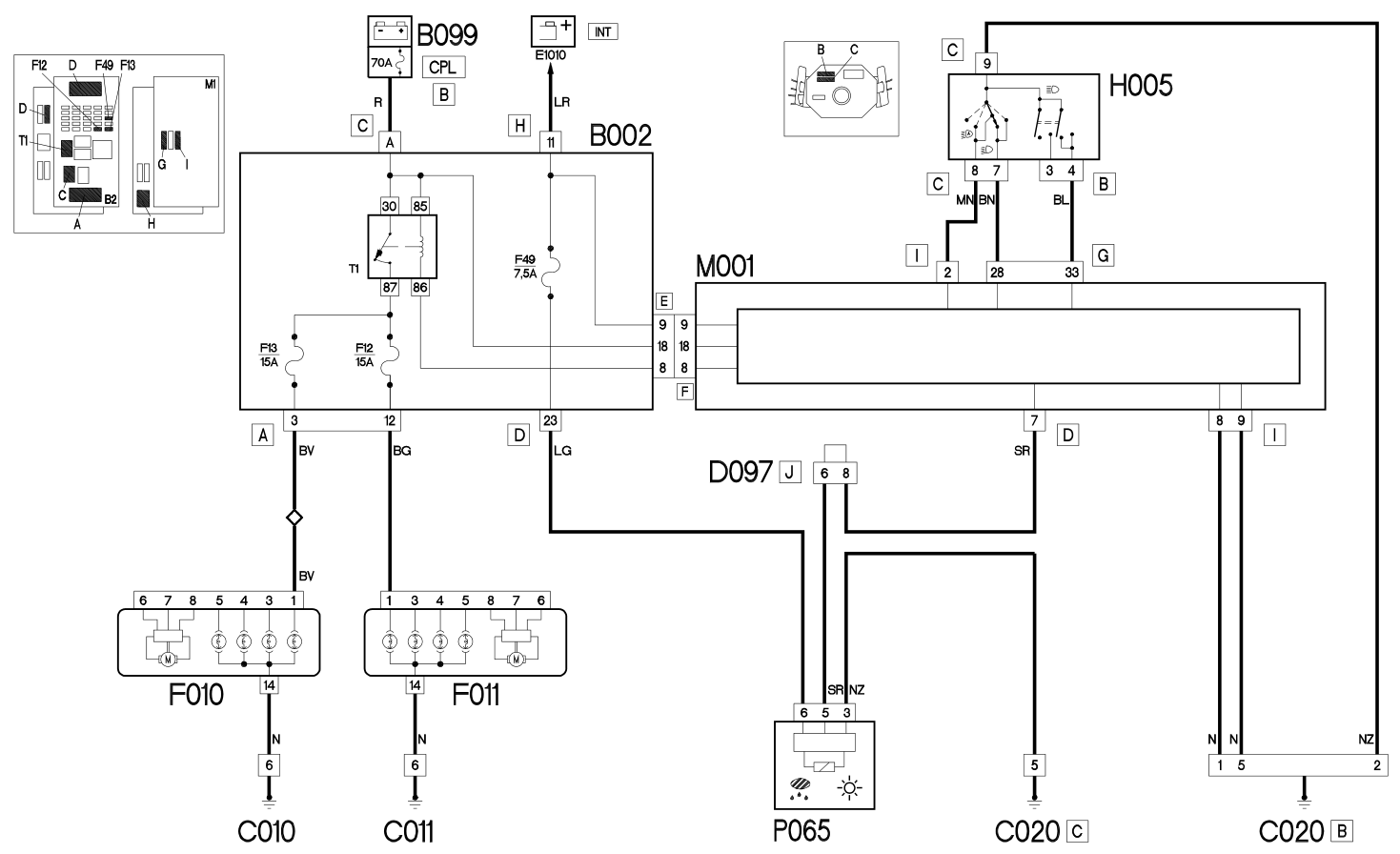

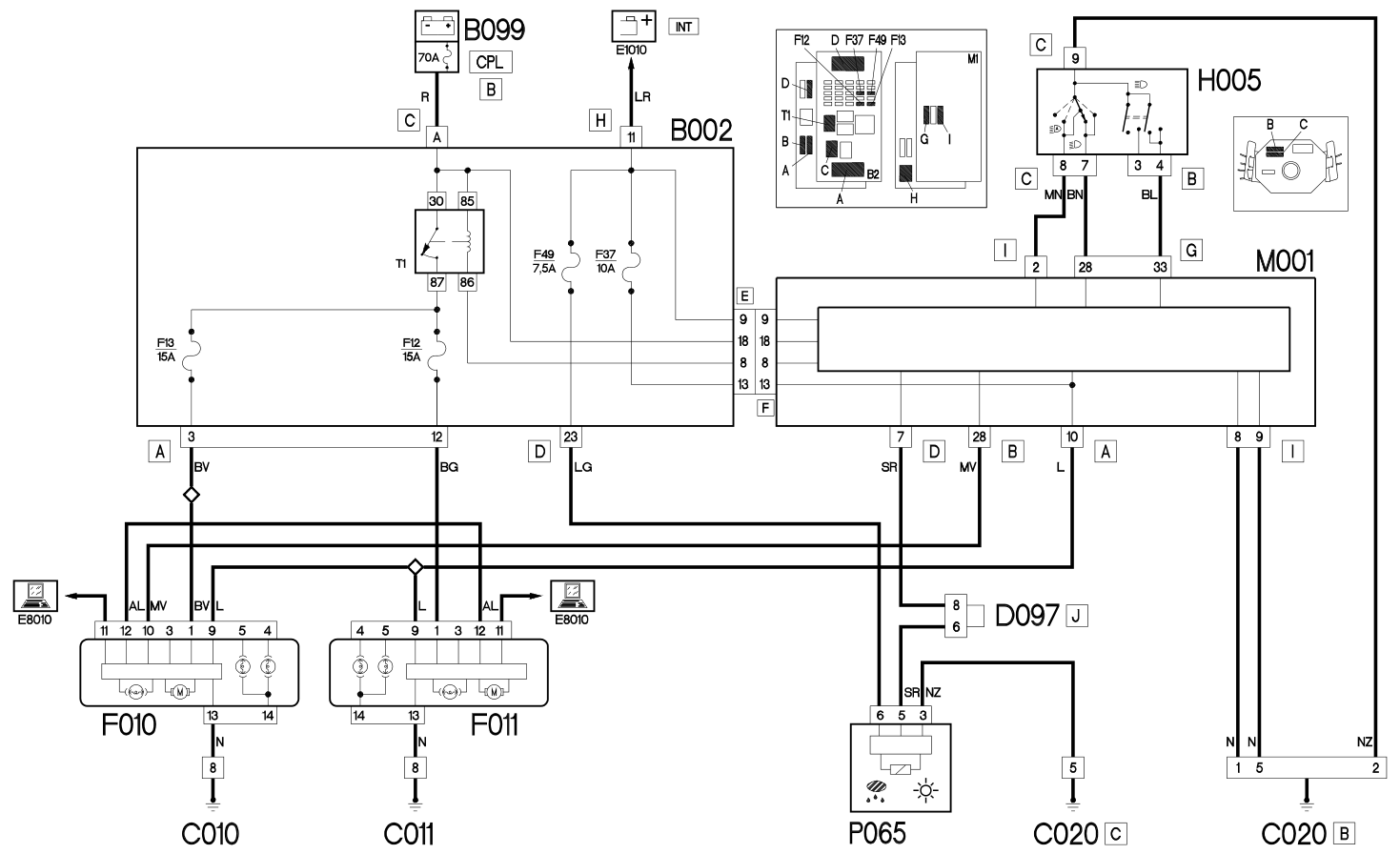

DIPPED HEADLIGHTS - WIRING DIAGRAM
Components
| Component code | Description | Reference to the assembly |
|---|---|---|
| B002 | JUNCTION UNIT UNDER DASHBOARD | Op. 5505A MULTI-FUNCTION COMPONENTS |
| B099 | MAXI FUSE BOX ON BATTERY | Op. 5530B BATTERY AND LEADS |
| C010 | LEFT FRONT EARTH | |
| C011 | RIGHT FRONT EARTH | |
| C020 | PASSENGER SIDE DASHBOARD EARTH | |
| D097 | SHORT CIRCUIT COUPLING | |
| F010 | LEFT HEADLAMP | Op. 5540B HEADLAMPS |
| F011 | RIGHT HEADLAMP | Op. 5540B HEADLAMPS |
| H005 | STEERING COLUMN SWITCH UNIT | Op. 5550A STALK UNIT |
| M001 | BODY COMPUTER | Op. 5505A MULTI-FUNCTION COMPONENTS |
| P065 | ELECTRO-CHROMIC INTERIOR REAR VIEW MIRROR | Op. 7065C ACCESSORIES AND DECORATIONS |
Components
| Component code | Description | Reference to the assembly |
|---|---|---|
| B002 | JUNCTION UNIT UNDER DASHBOARD | Op. 5505A MULTI-FUNCTION COMPONENTS |
| B099 | MAXI FUSE BOX ON BATTERY | Op. 5505A MULTI-FUNCTION COMPONENTS |
| C010 | LEFT FRONT EARTH | |
| C011 | RIGHT FRONT EARTH | |
| C020 | PASSENGER SIDE DASHBOARD EARTH | |
| D097 | SHORT CIRCUIT COUPLING | |
| F010 | LEFT HEADLAMP | Op. 5540B HEADLAMPS |
| F011 | RIGHT HEADLAMP | Op. 5540B HEADLAMPS |
| H005 | STEERING COLUMN SWITCH UNIT | Op. 5550A STALK UNIT |
| M001 | BODY COMPUTER | Op. 5505A MULTI-FUNCTION COMPONENTS |
| P065 | ELECTRO-CHROMIC INTERIOR REAR VIEW MIRROR | Op. 7065C ACCESSORIES AND DECORATIONS |
