Fog lights - component location

Make

Fiat

Model

Croma Factory Service Manual

Year

2005–2010

Section

Exterior lighting › Fog lights - component location

Wiring diagrams and electrical functionsFog lights - component location

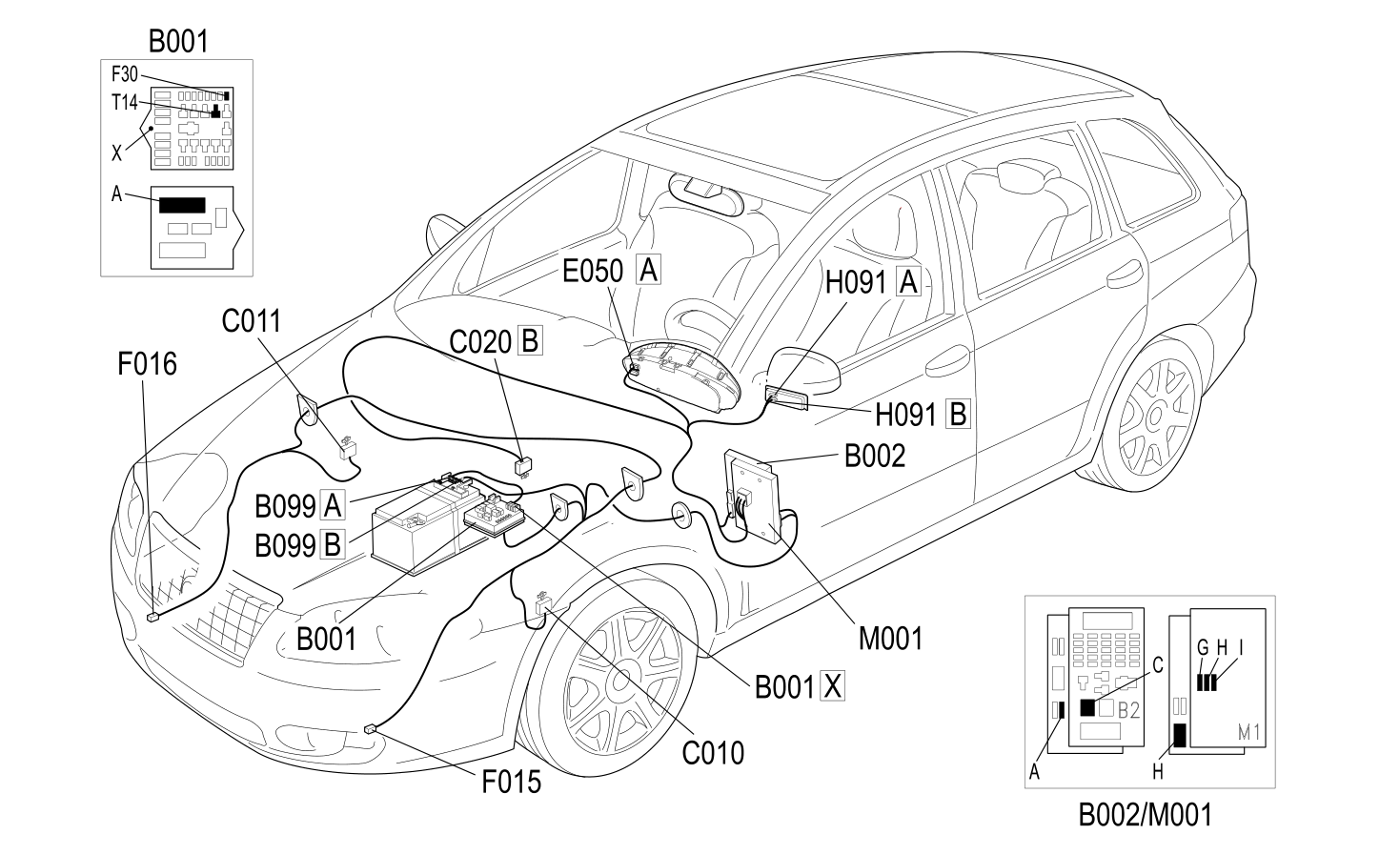

FOG LIGHTS - COMPONENT LOCATION

Component code	Description	Reference to the assembly
B001	ENGINE COMPARTMENT JUNCTION UNIT	Op. 5505A MULTI-FUNCTION COMPONENTS
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A MULTI-FUNCTION COMPONENTS
B099	MAXI FUSE BOX ON BATTERY	Op. 5530B BATTERY AND LEADS
C010	LEFT FRONT EARTH
C011	RIGHT FRONT EARTH
C020	PASSENGER SIDE DASHBOARD EARTH
E050	INSTRUMENT PANEL	Op. 5560B ANALOGUE CONTROL PANEL
F015	LEFT FOG LIGHT	Op. 5540D FOG LIGHTS
F016	RIGHT FOG LIGHT	Op. 5540D FOG LIGHTS
H091	LEFT CONTROL UNIT (PCS, LEFT CONTROL PANEL)	Op. 7040A PASSENGER COMPARTMENT TRIMS
M001	BODY COMPUTER	Op. 5505A MULTI-FUNCTION COMPONENTS
