INTRODUCTION - ENGINE COOLING

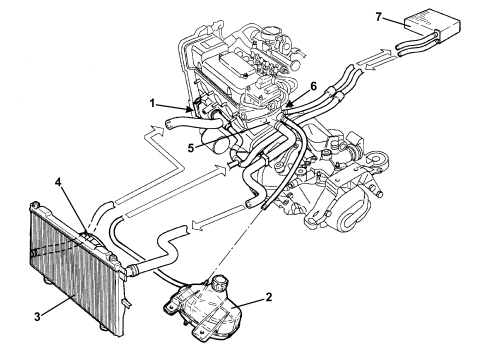

1.2 8v, 1.4 8v

1. Water pump

2. System supply reservoir

3. Radiator

4. Fan

5. Thermostat

6. Engine coolant temperature sensor

7. Heater unit

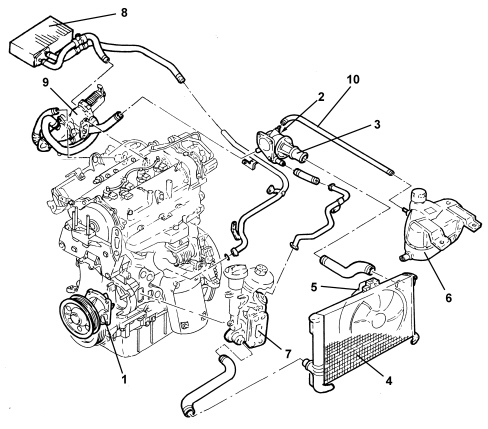

1.3 Multijet

ENGINE COOLING SYSTEM

1. Water pump

2. Engine coolant temperature sensor

3. Thermostat

4. Radiator

5. Fan

6. Supply reservoir

7. Engine oil heat exchanger

8. Vehicle interior heating radiator

9. E.G.R. exhaust gas heat exchanger

10. Water recirculation pipe

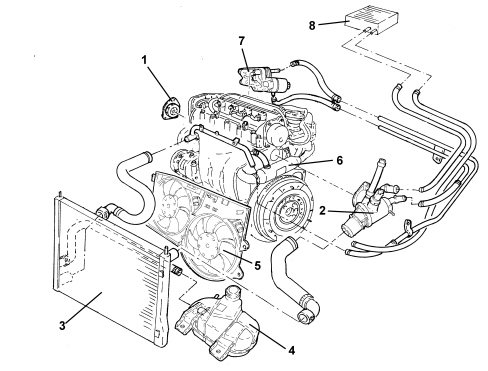

1.9 Multijet

1. Water pump

2. Thermostat

3. Radiator

4. System supply reservoir

5. Fans

6. Water/exhaust gas heat exchanger for E.G.R. system.

7. Water/engine oil heat exchanger

8. Heater unit
