00 Introduction and technical dataCooling system

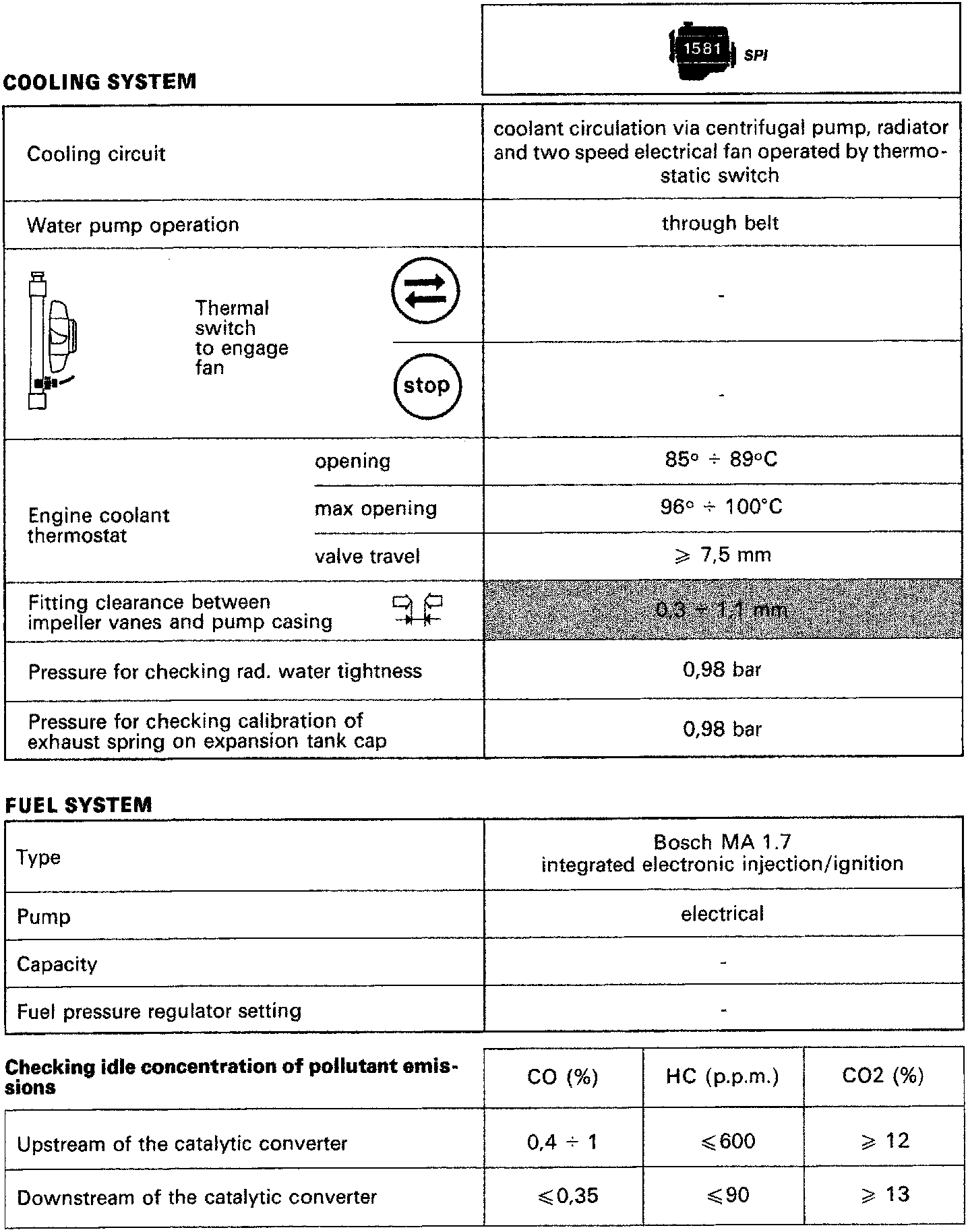

COOLING SYSTEM
| Cooling circuit | coolant circulation via centrifugal pump, radiator and two speed electrical fan operated by thermo- static switch | |
| Water pump operation | through belt | |
| - | ||
| - | ||
| Engine coolant thermostat | opening | 85° ÷ 89°C |
| max opening | 96° ÷ 100°C | |
| valve travel | ≥ 7,5 mm | |
| Fitting clearance between impeller vanes and pump casing | 0,3 ÷ 1,1 mm | |
| Pressure for checking rad. water tightness | 0,98 bar | |
| Pressure for checking calibration of exhaust spring on expansion tank cap | 0,98 bar |
FUEL SYSTEM
| Type | Bosch MA 1.7 integrated electronic injection/ignition |
| Pump | electrical |
| Capacity | - |
| Fuel pressure regulator setting | - |
| Checking idle concentration of pollutant emissions | CO (%) | HC (p.p.m.) | CO2 (%) |
|---|---|---|---|
| Upstream of the catalytic converter | 0,4 ÷ 1 | ≤ 600 | ≥ 12 |
| Downstream of the catalytic converter | ≤ 0,35 | ≤ 90 | ≥ 13 |

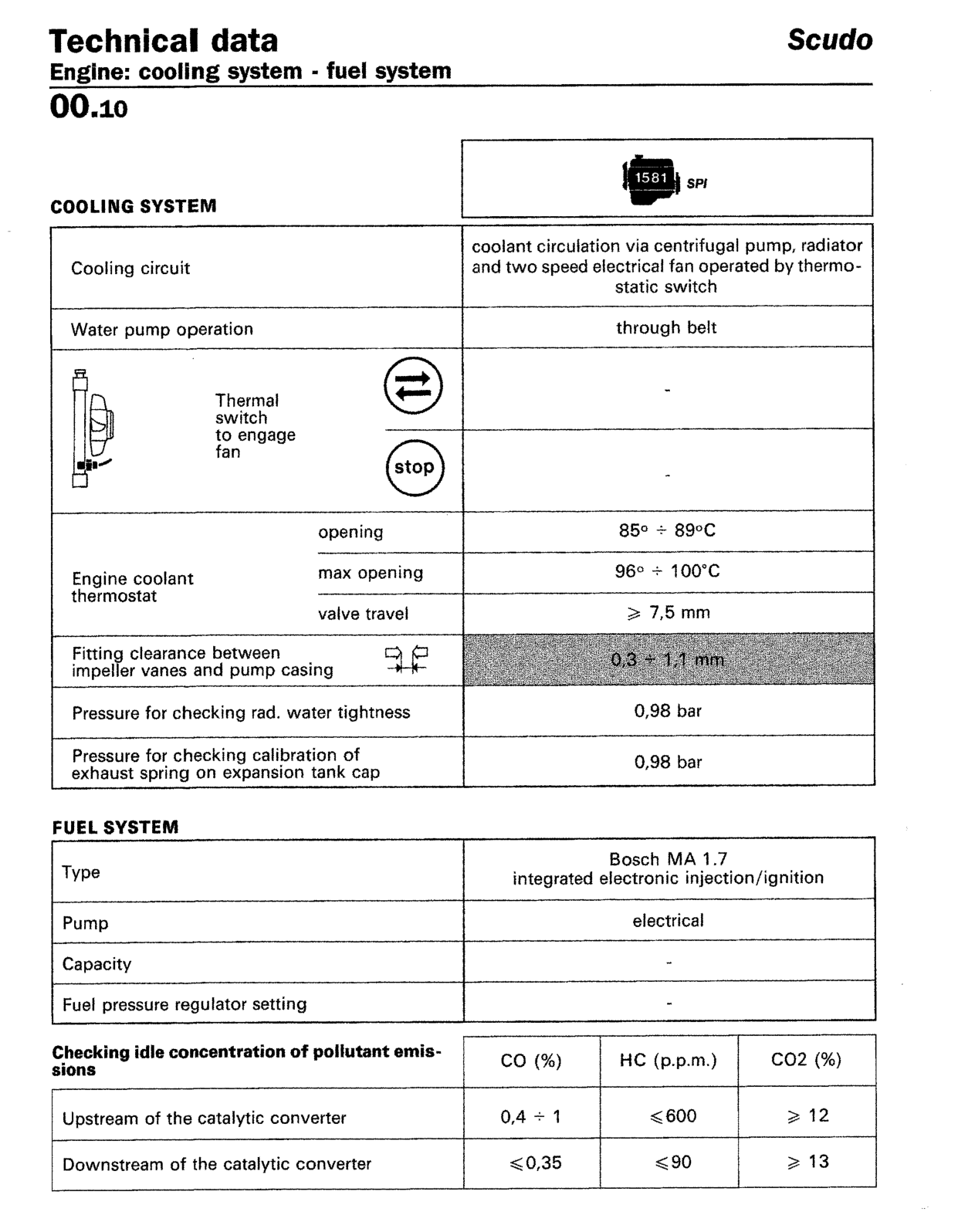

Original page
