00 Introduction and technical dataDescription · page 1 of 2

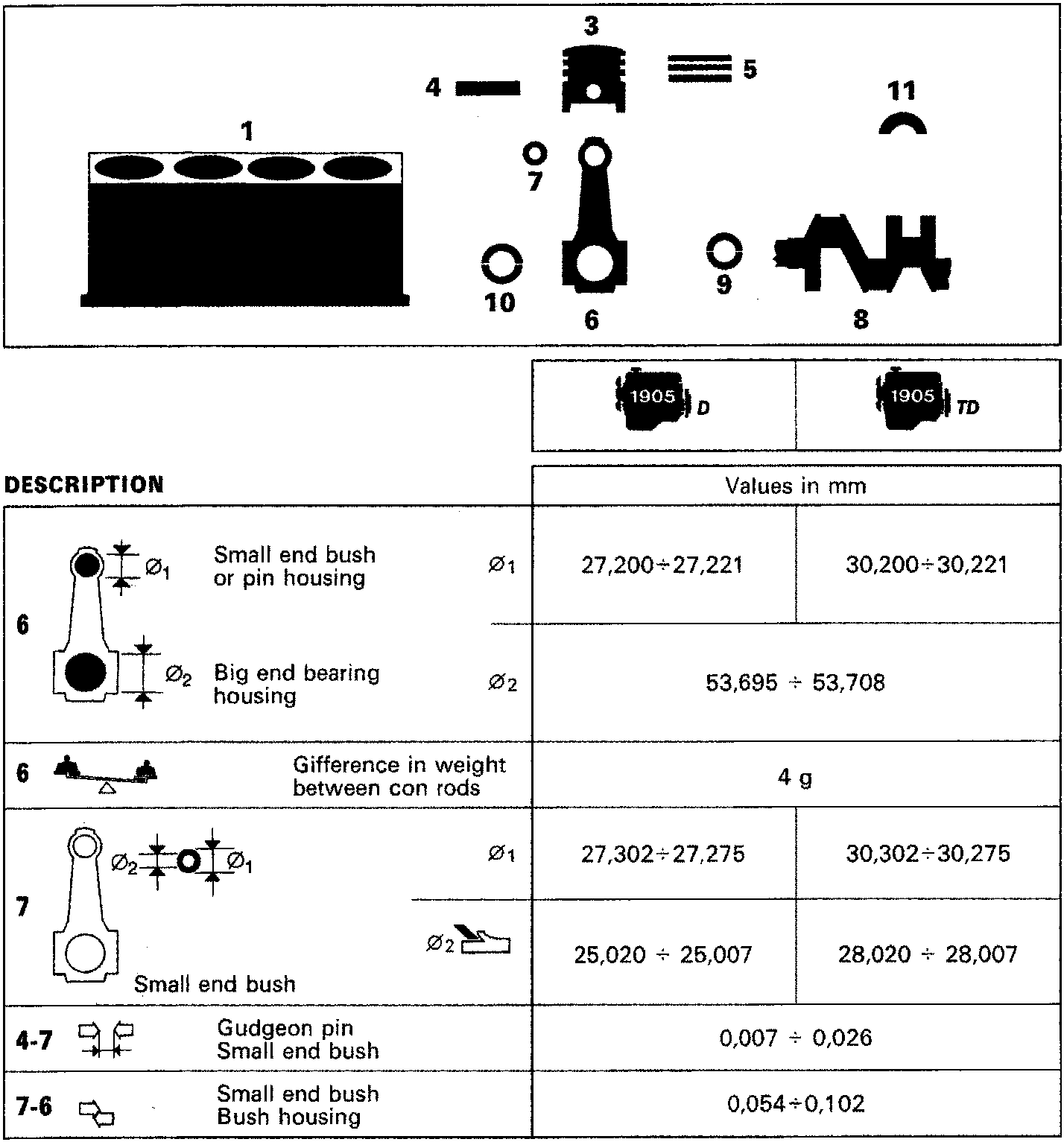

DESCRIPTION
| DESCRIPTION | Values in mm | |
|---|---|---|
| 6 Small end bush or pin housing Ø₁ | 27,200÷27,221 | 30,200÷30,221 |
| 6 Big end bearing housing Ø₂ | 53,695 ÷ 53,708 | |
| 6 Gifference in weight between con rods | 4 g | |
| 7 Small end bush Ø₁ | 27,302÷27,275 | 30,302÷30,275 |
| 7 Small end bush Ø₂ | 25,020 ÷ 25,007 | 28,020 ÷ 28,007 |
| 4-7 Gudgeon pin Small end bush |
0,007 ÷ 0,026 | |
| 7-6 Small end bush Bush housing |
0,054÷0,102 | |
