00 Introduction and technical dataDescription · page 2 of 2

DESCRIPTION		Values in mm
8 Ø₁ L	Main journals FIAT <	60,000÷59,981
	59,700÷59,681
	Crank pins FIAT <	50,000÷49,984
		49,700÷49,684
	FIAT >	26,600÷26,650
		26,800÷26,850
		26,900÷26,950
			27,000÷27,050
9 L Ø	Crankshaft bearings L	1,839÷1,845
	Ø FIAT <	1,989÷1,995
		2,089÷2,095
9–8 [diagram]	Crankshaft bearings - Main journals	0,041÷0,091
10 L Ø	Big end bearings L	1,824÷1,830
	Ø FIAT <	1,974÷1,980
10–8 [diagram]	Big end bearings - Main journals	0,035÷0,076
11 S	Thrust washers S	2,280÷2,330
	2,480÷2,530
	S FIAT >	2,580÷2,630
		2,680÷2,730
	11–8 [diagram]	Crankshaft end float	0,070÷0,320

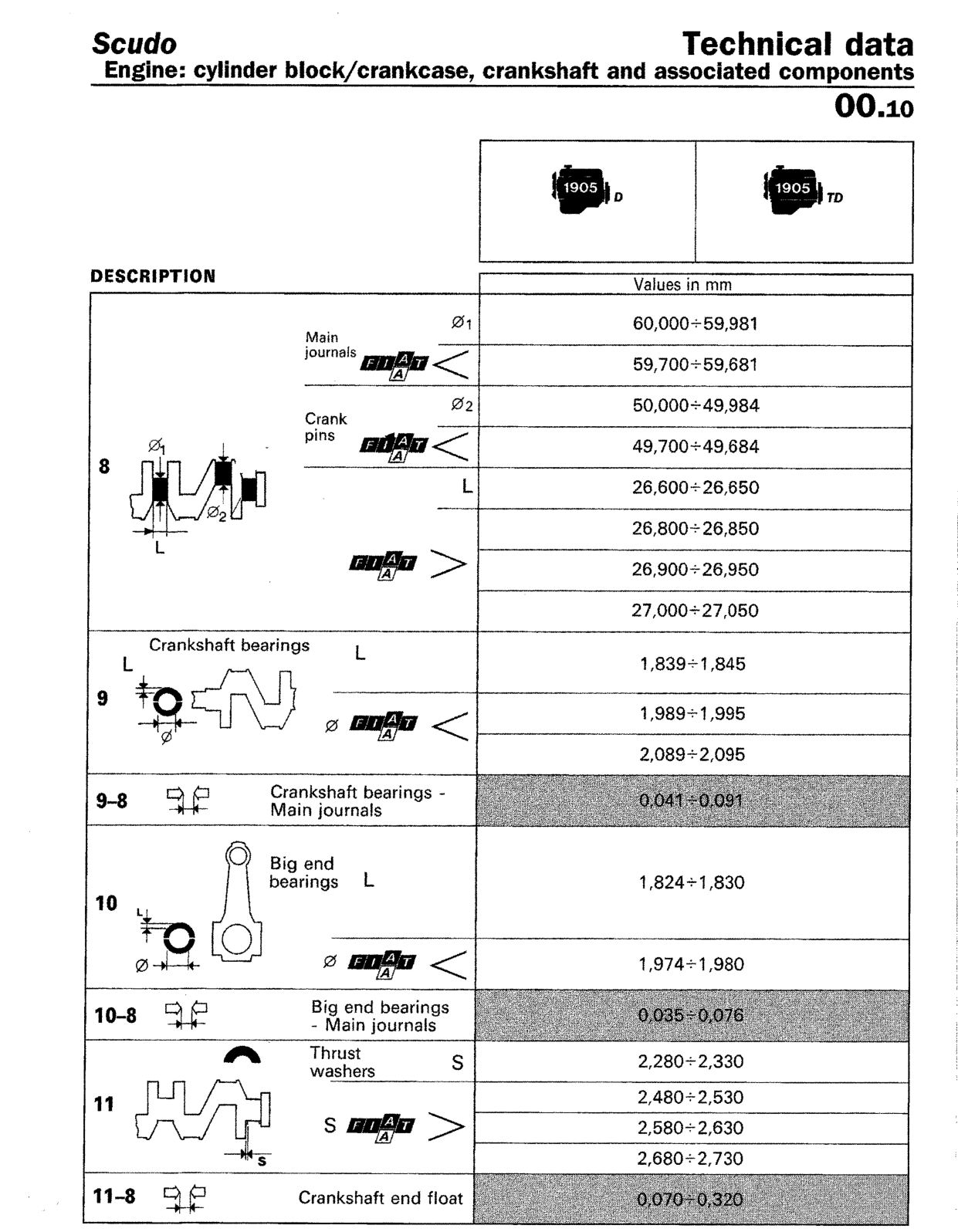

Original page
