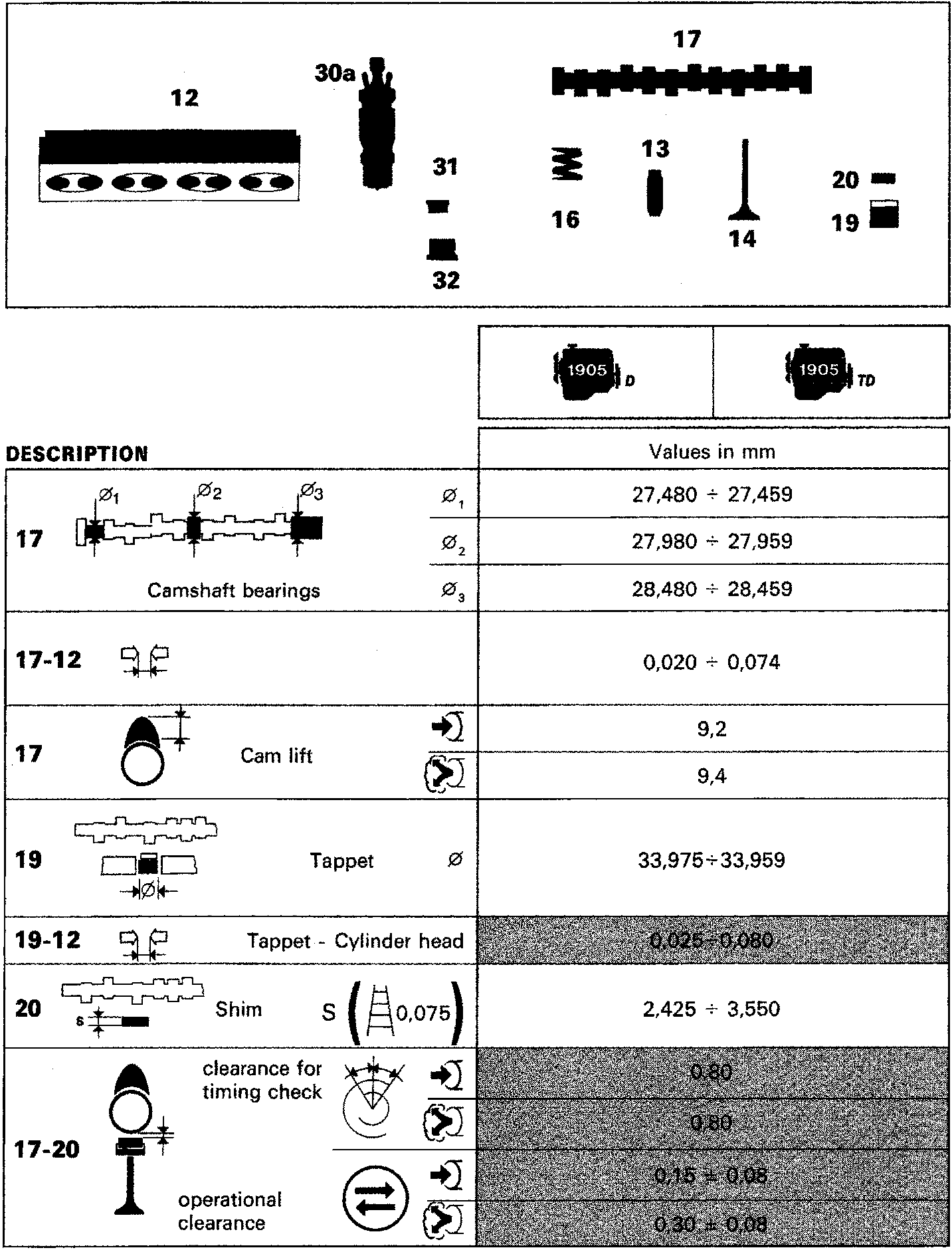

DESCRIPTION

DESCRIPTION	Values in mm
	17 Camshaft bearings	Ø₁	27,480 ÷ 27,459
Ø₂		27,980 ÷ 27,959
Ø₃		28,480 ÷ 28,459
17-12		0,020 ÷ 0,074
17 Cam lift		9,2
	9,4
	19 Tappet Ø		33,975÷33,959
19-12 Tappet - Cylinder head		0,025÷0,080
20 Shim S (0,075)		2,425 ÷ 3,550
17-20 clearance for timing check operational clearance		0,80
	0,80
	0,15 ± 0,08
	0,30 ± 0,08
