00 Introduction and technical dataLUBRICATION – Description
LUBRICATION – Description
| 1905 D | 1905 TD | |
|---|---|---|
| Values in mm | ||
| Engine lubrication system | forced feed via geared pump with cartridge oil filter in series |
|
| Oil pump: type | lobe gears | |
| Pump operated | through chain operated by crankshaft | |
| Oil pressure relief valve | incorporated in oil pump | |
| Full flow filter | cartridge | |
| Insufficient oil pressure sender unit | electrical | |
between the edge of the gears and the pump cover |
||
between the upper side of the gears and the pump cover |
0,005÷0,135 | |
Operating pressure at a temperature of 80°C |
idling 2 bar at 4000 rpm 5 bar |
|
Oil pressure relief valve spring |
P1 | 9,15 daN |
| H1 | 65 | |
| P2 | 11,5 daN | |
| H2 | 58,6 | |

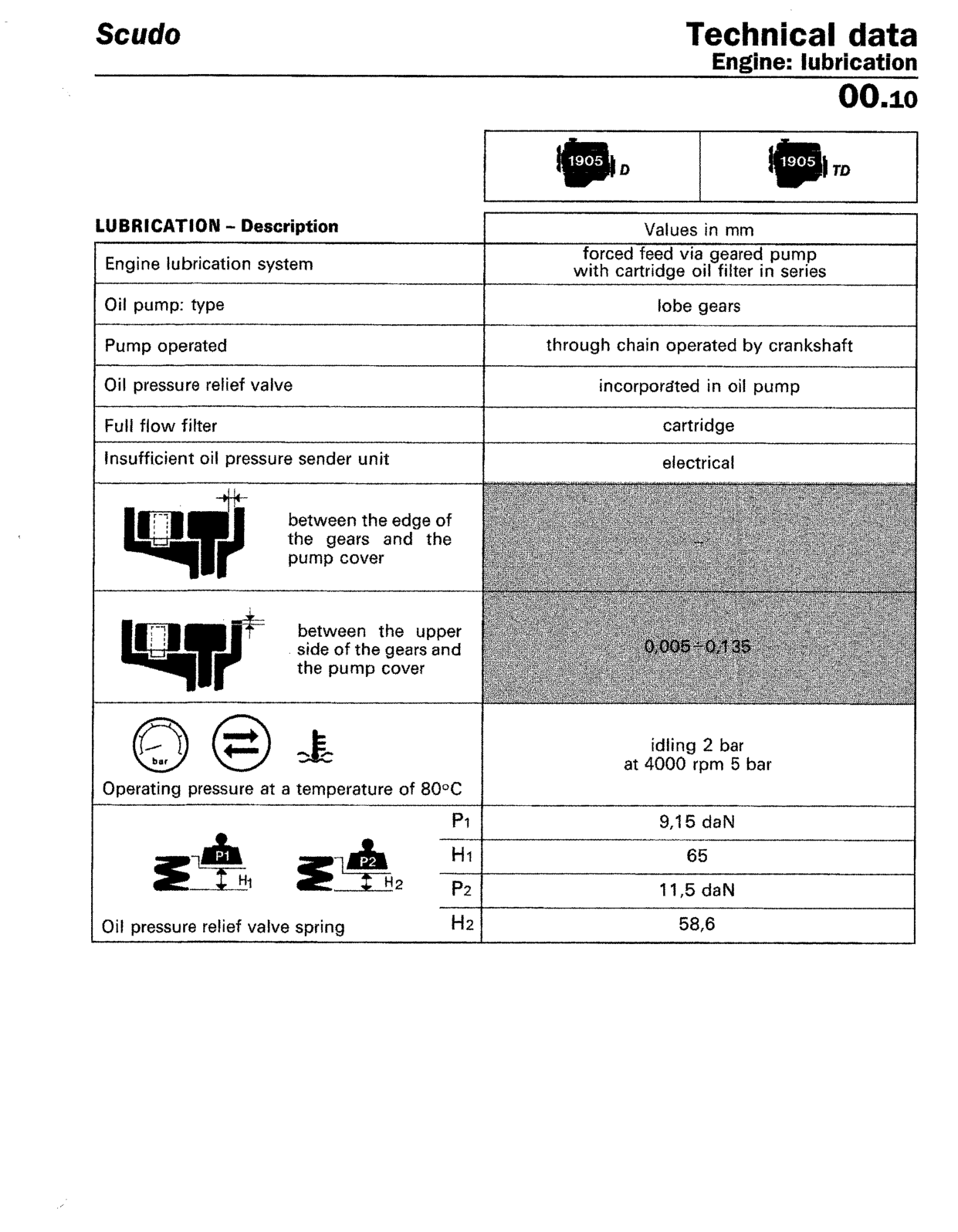

Original page
