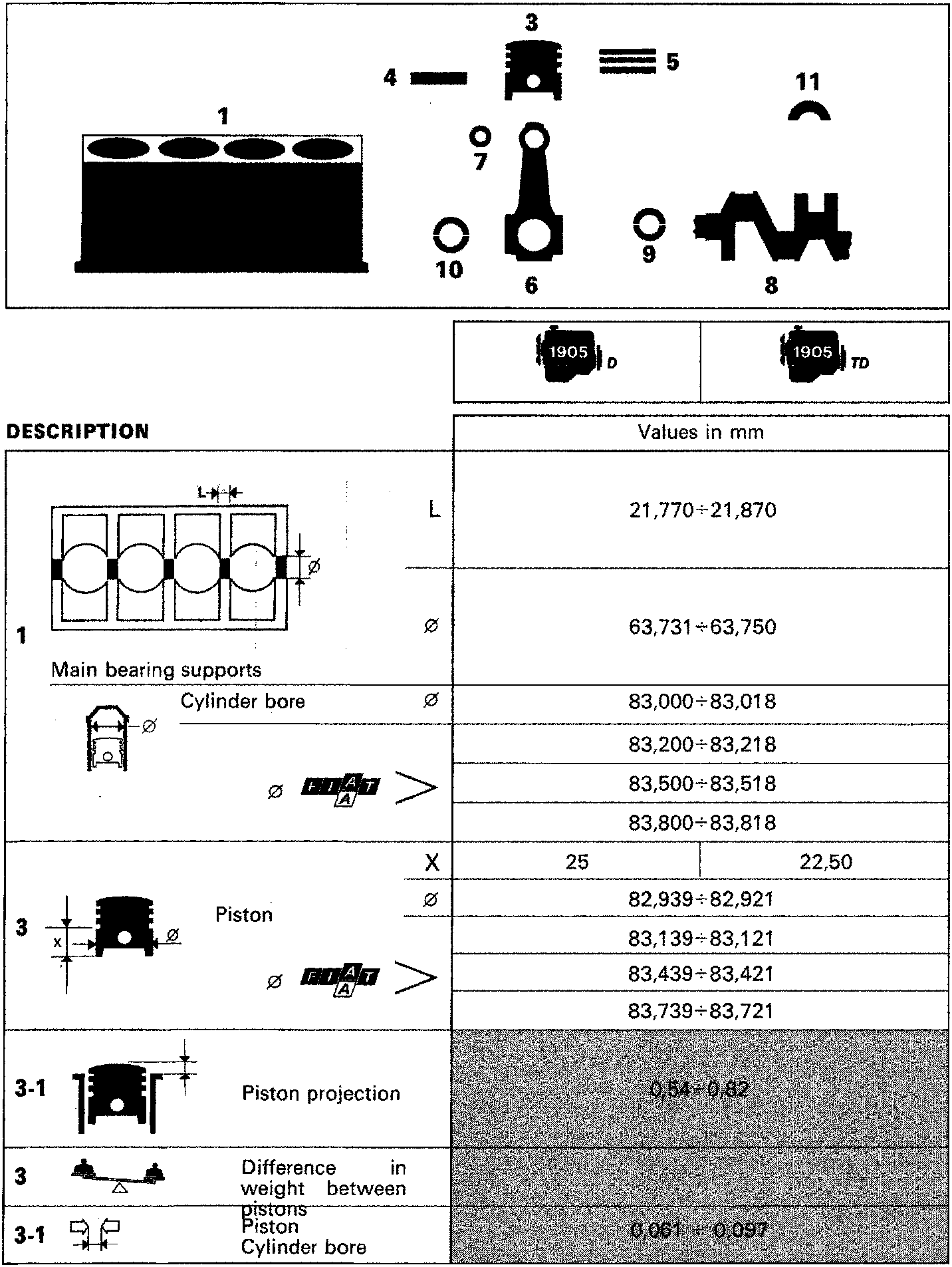

00 Introduction and technical dataDescription · page 1 of 2

DESCRIPTION

1	Main bearing supports	Values in mm
		L	21,770÷21,870
		Ø	63,731÷63,750
		Cylinder bore	83,000÷83,018
	Ø [FIAT A logo]	83,200÷83,218
		83,500÷83,518
		83,800÷83,818
	3 Piston	X	25	22,50
		Ø	82,939÷82,921
		Ø [FIAT A logo]	83,139÷83,121
			83,439÷83,421
			83,739÷83,721
3-1 Piston projection	0,54÷0,82
3 Difference in weight between pistons	-
3-1 Piston Cylinder bore	0,061 ÷ 0,097

01 General
