LUBRICATION – Description

Make

Fiat

Model

Scudo Factory Service Manual

Year

1996–2006

Section

Engine › LUBRICATION – Description

00 Introduction and technical dataLUBRICATION – Description

LUBRICATION – Description

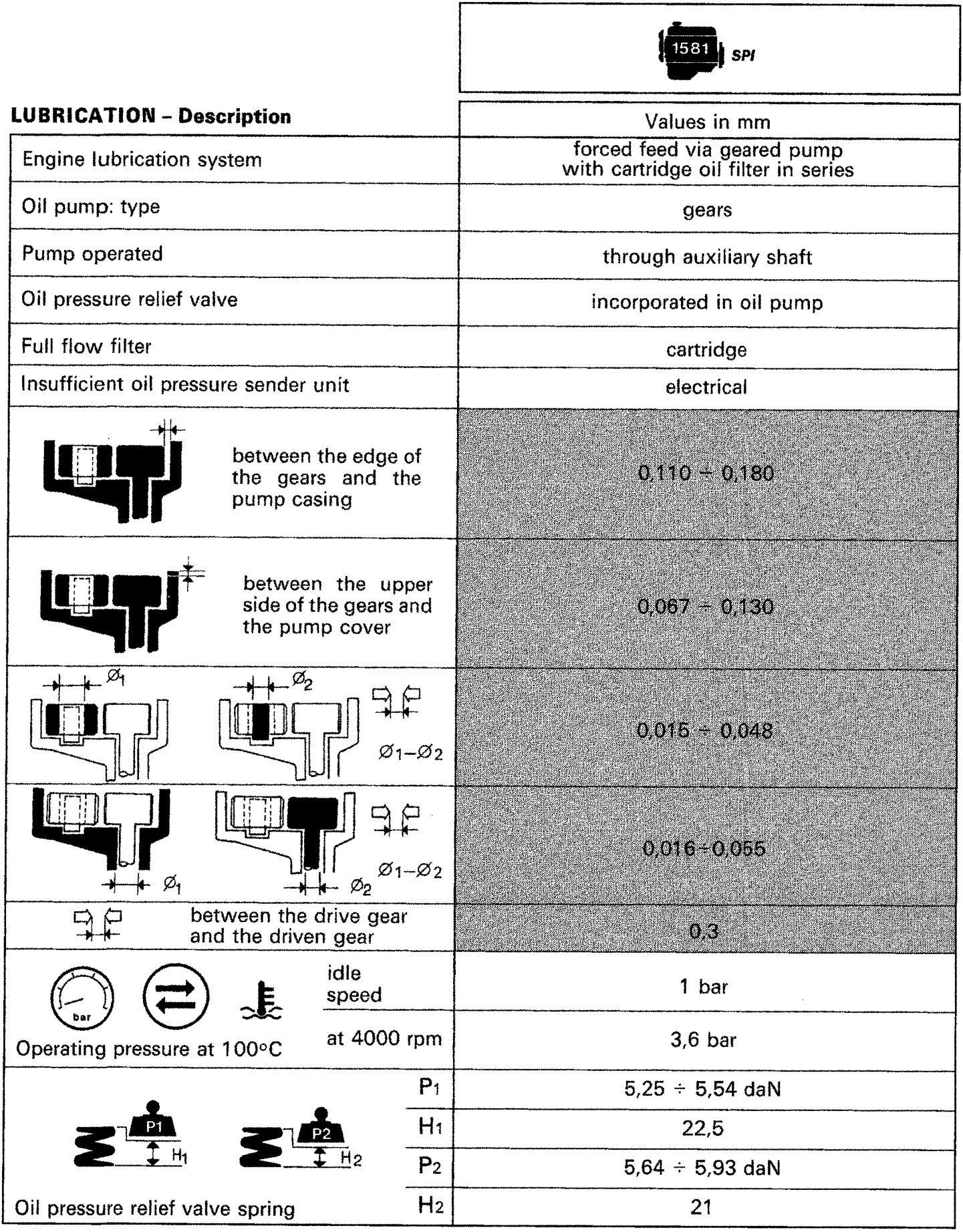

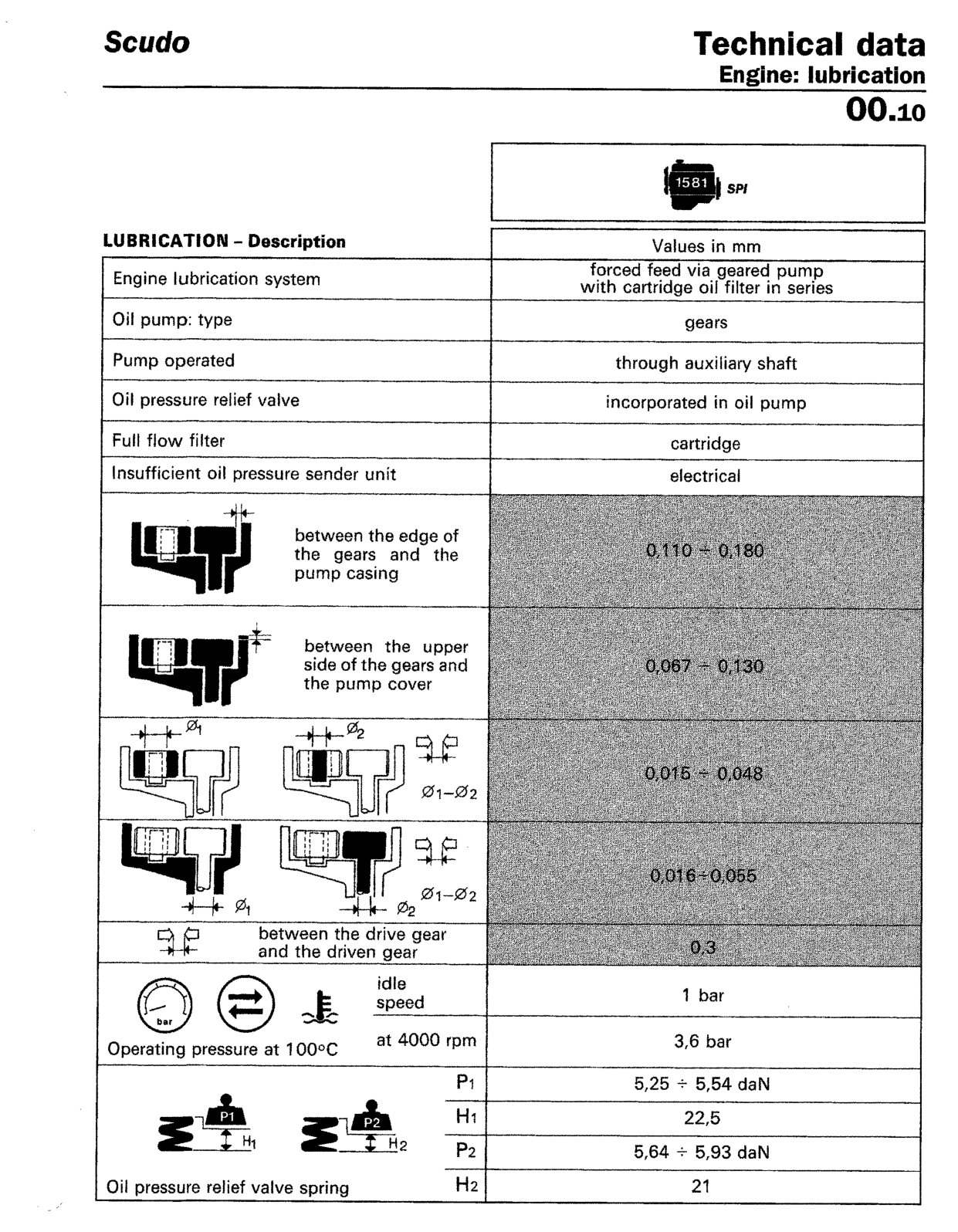

LUBRICATION – Description		Values in mm
Engine lubrication system		forced feed via geared pump with cartridge oil filter in series
Oil pump: type		gears
Pump operated		through auxiliary shaft
Oil pressure relief valve		incorporated in oil pump
Full flow filter		cartridge
Insufficient oil pressure sender unit		electrical
	between the edge of the gears and the pump casing	0,110 ÷ 0,180
	between the upper side of the gears and the pump cover	0,067 ÷ 0,130
	Ø1–Ø2	0,016 ÷ 0,048
	Ø1–Ø2	0,016 ÷ 0,055
	between the drive gear and the driven gear	0,3
	idle speed	1 bar
	Operating pressure at 100°C at 4000 rpm	3,6 bar
	P₁	5,25 ÷ 5,54 daN
	H₁	22,5
	P₂	5,64 ÷ 5,93 daN
	Oil pressure relief valve spring H₂	21
