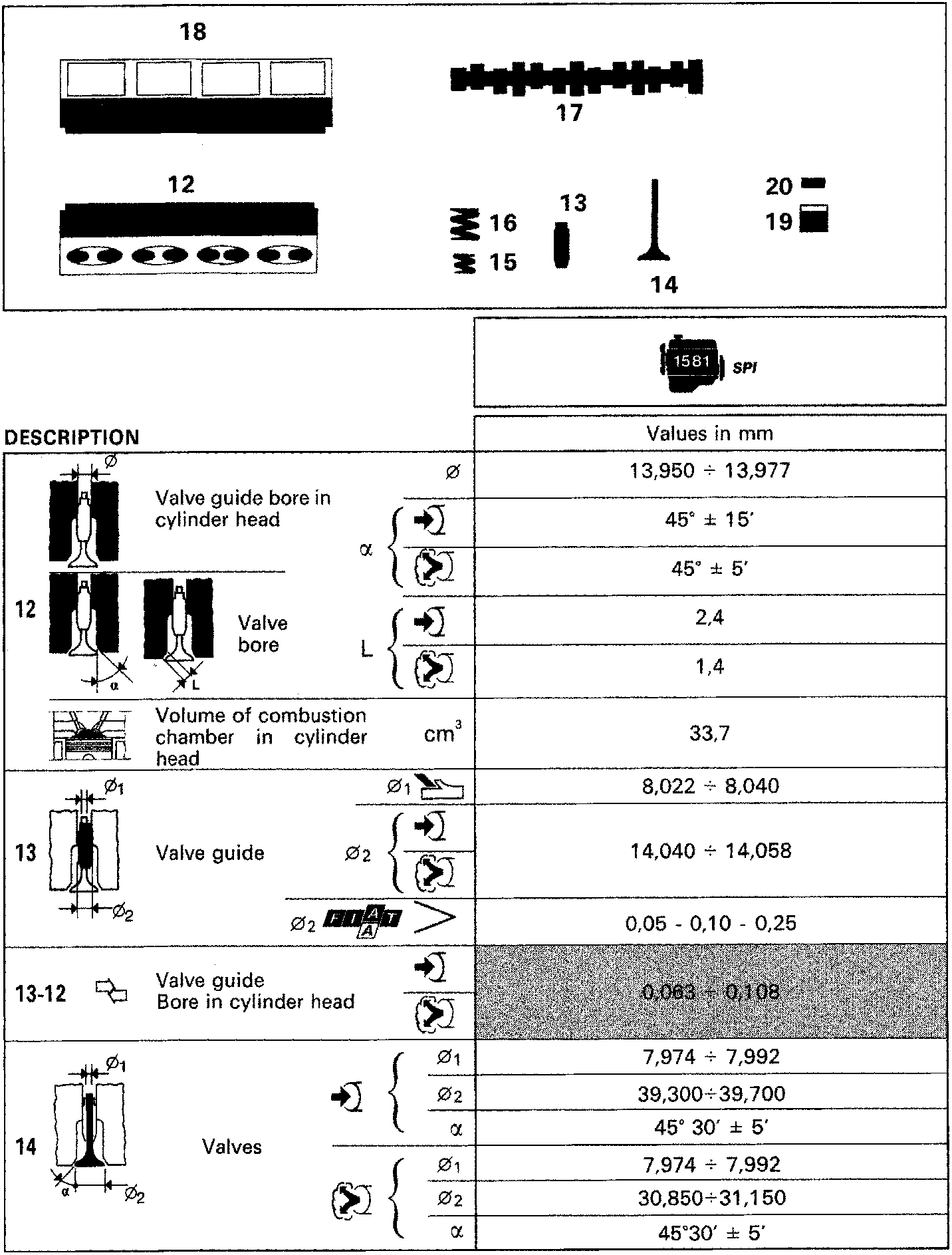

DESCRIPTION

DESCRIPTION	Values in mm
	Valve guide bore in cylinder head 12 Valve bore	Ø	13,950 ÷ 13,977
α		45° ± 15'
		45° ± 5'
L		2,4
		1,4
Volume of combustion chamber in cylinder head	cm³	33,7
13 Valve guide	Ø1	8,022 ÷ 8,040
	Ø2	14,040 ÷ 14,058
	Ø2	0,05 - 0,10 - 0,25
13-12 Valve guide Bore in cylinder head		0,063 ÷ 0,108
14 Valves	Ø1	7,974 ÷ 7,992
	Ø2	39,300÷39,700
	α	45° 30' ± 5'
	Ø1	7,974 ÷ 7,992
	Ø2	30,850÷31,150
	α	45°30' ± 5'
