Description (page 2 of 2)
- Make
- Fiat
- Model
- Scudo Factory Service Manual
- Year
- 1996–2006
- Section
- Engine
00 Introduction and technical dataDescription · page 2 of 2
Values in mm
| DESCRIPTION | |
|---|---|
| Crankshaft bearings 9 1 2 ∅ FIAT < |
1,840 ÷ 1,844 1,845 ÷ 1,849 0,254 - 0,508 |
| 9-8 Crankshaft bearings - Main journals | 0,019 ÷ 0,050 |
| Big end bearings 10 A B ∅ FIAT < |
1,535 ÷ 1,541 1,540 ÷ 1,546 0,254 - 0,508 |
| 10-8 Big end bearings - Main journals | 0,025 ÷ 0,063 |
| Thrust washers 11 S S FIAT > |
2,310 ÷ 2,360 0,127 |
| 11-8 Crankshaft end float | 0,055 ÷ 0,265 |

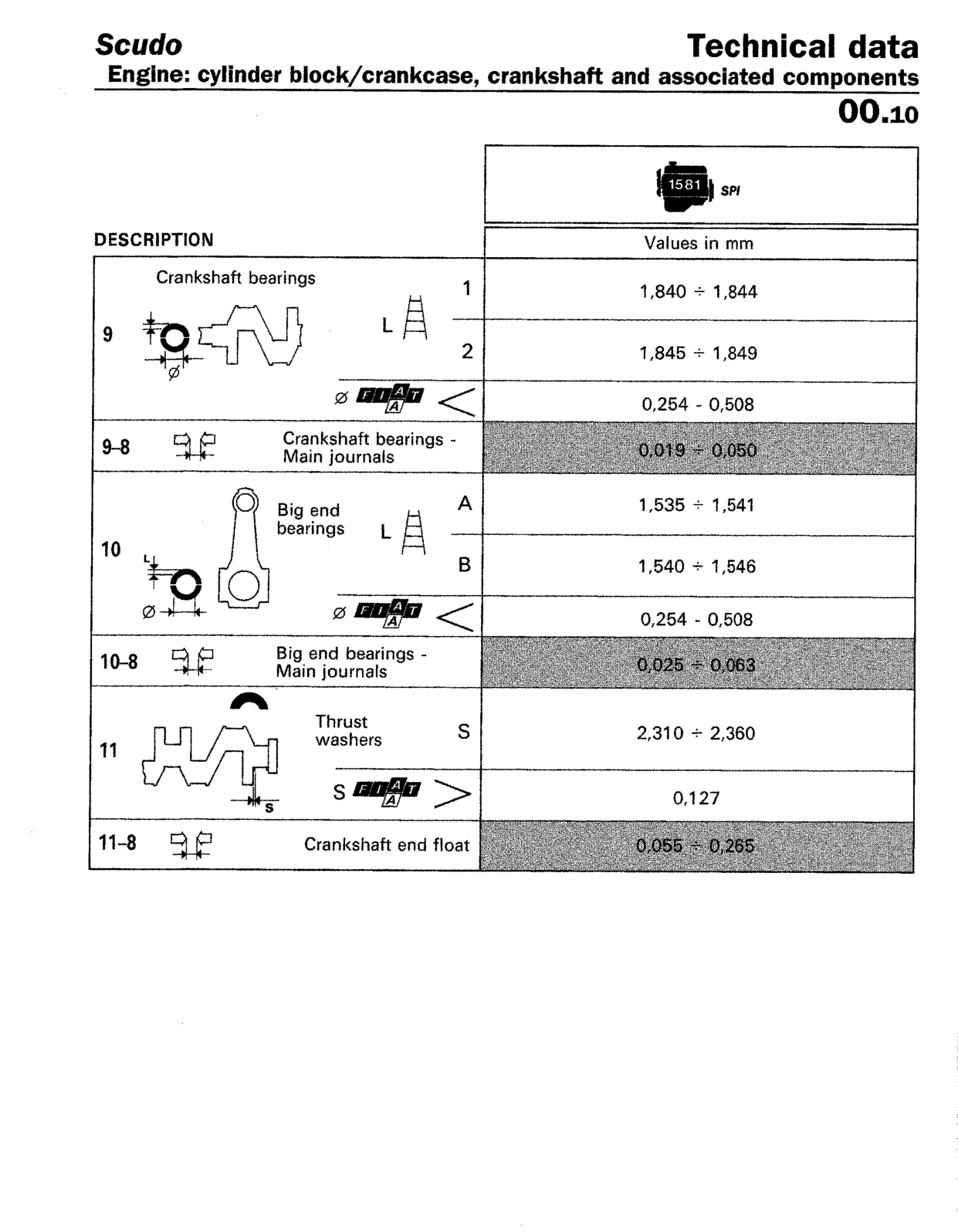

Original page
