00 Introduction and technical dataDescription

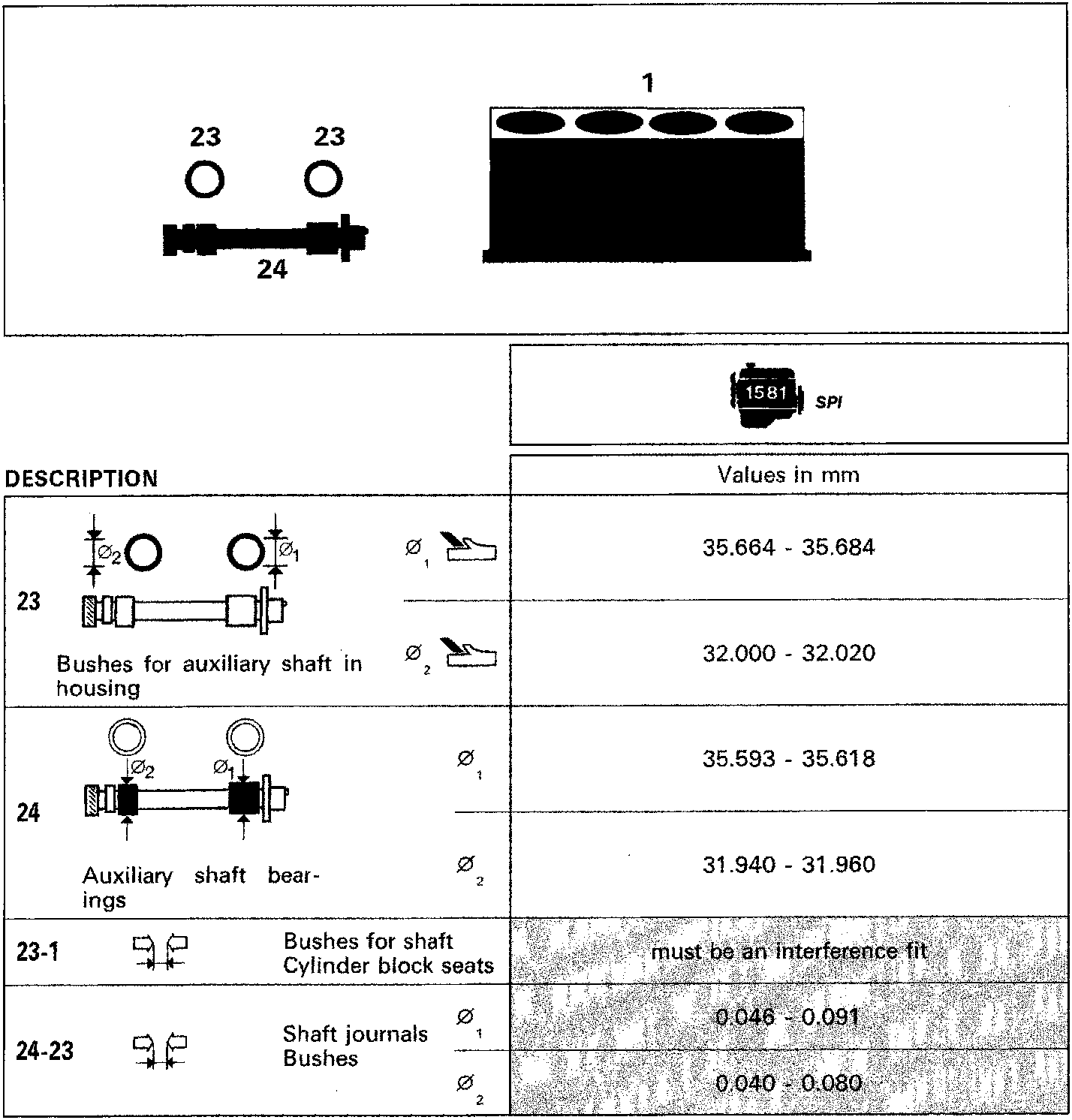

DESCRIPTION
| Description | Values in mm | |
|---|---|---|
| 23 Bushes for auxiliary shaft in housing |
Ø1 | 35.664 - 35.684 |
| Ø2 | 32.000 - 32.020 | |
| 24 Auxiliary shaft bearings |
Ø1 | 35.593 - 35.618 |
| Ø2 | 31.940 - 31.960 | |
| 23-1 Bushes for shaft Cylinder block seats |
must be an interference fit | |
| 24-23 Shaft journals Bushes |
Ø1 | 0.046 - 0.091 |
| Ø2 | 0.040 - 0.080 |
