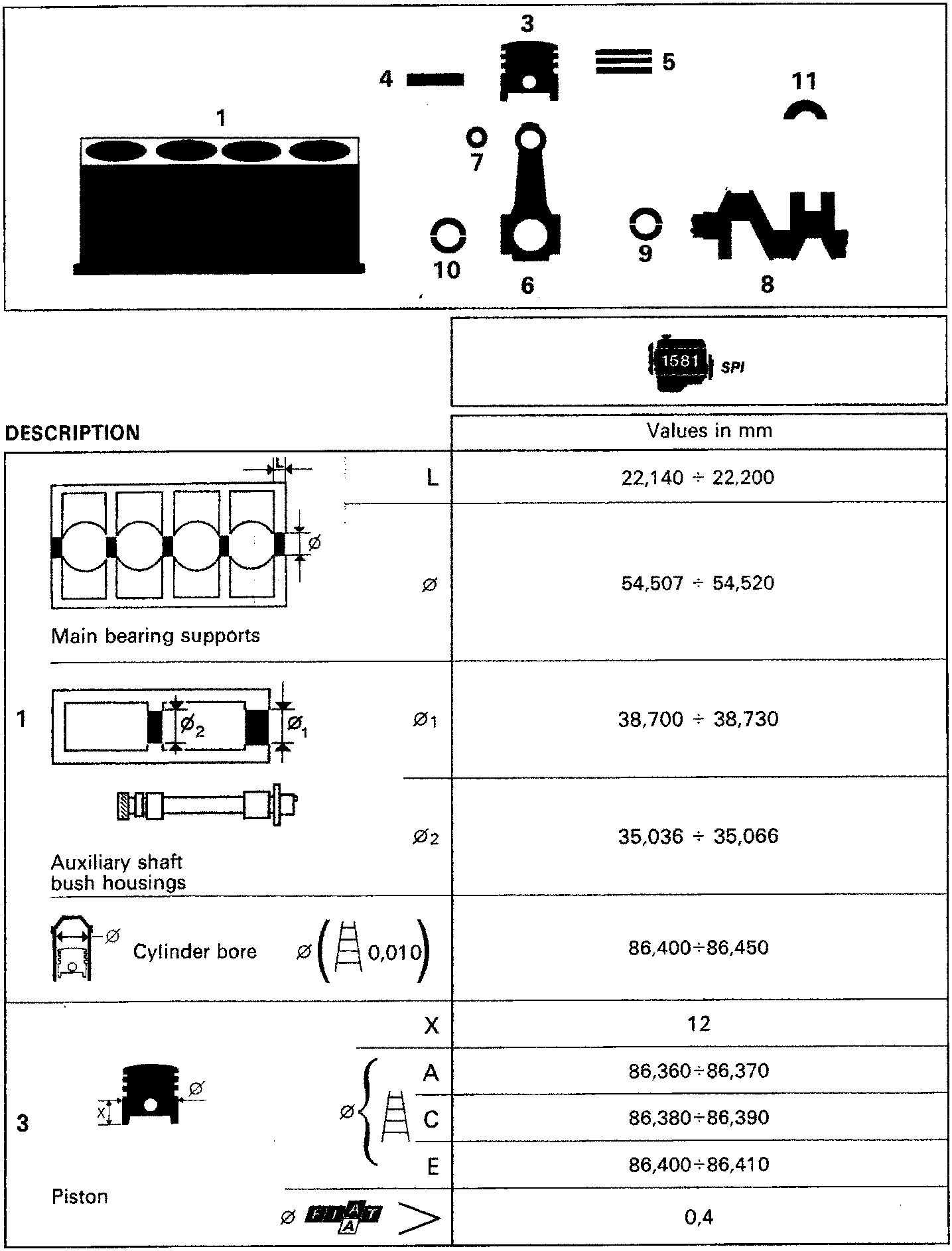

DESCRIPTION

		Values in mm
Main bearing supports	L	22,140 ÷ 22,200
	Ø	54,507 ÷ 54,520
1 Auxiliary shaft bush housings	Ø₁	38,700 ÷ 38,730
	Ø₂	35,036 ÷ 35,066
Cylinder bore	Ø (⊥ 0,010)	86,400÷86,450
3 Piston	X	12
	Ø { A C E }	86,360÷86,370
		86,380÷86,390
		86,400÷86,410
	Ø FIAT A >	0,4
