Fiat Scudo Factory Service Manual (1996-2006)01 · 00 Introduction and technical data
01 · General

Timing diagrams

Make
Fiat
Model
Scudo Factory Service Manual
Year
1996–2006
Section
Engine › Timing diagrams
00 Introduction and technical dataTiming diagrams

Values in mm

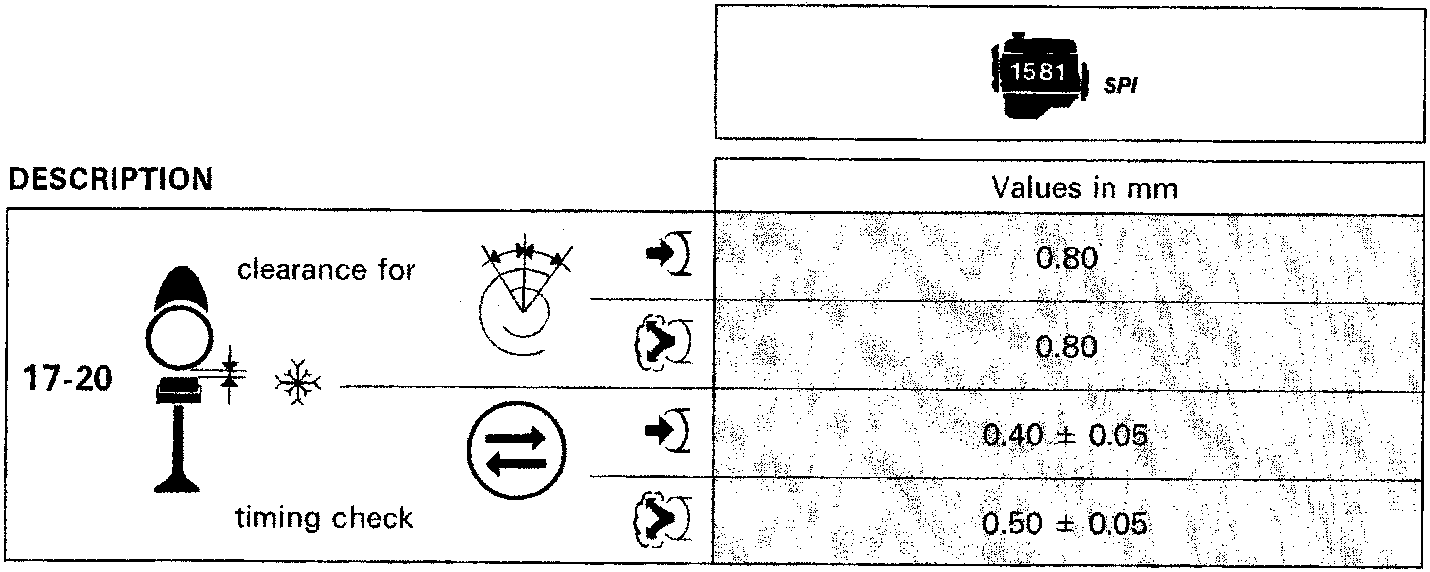

Table showing valve clearance and timing check values for the 1581 SPI engine

TIMING DIAGRAMS

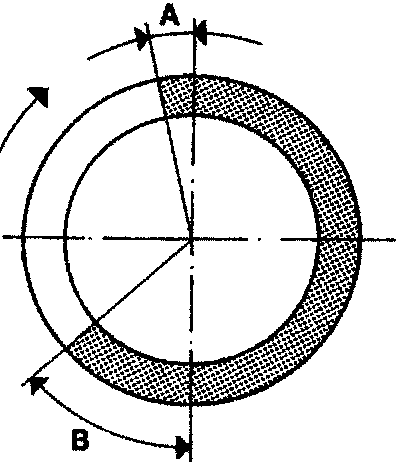

Timing diagram for the inlet valve showing opening and closing points relative to piston position

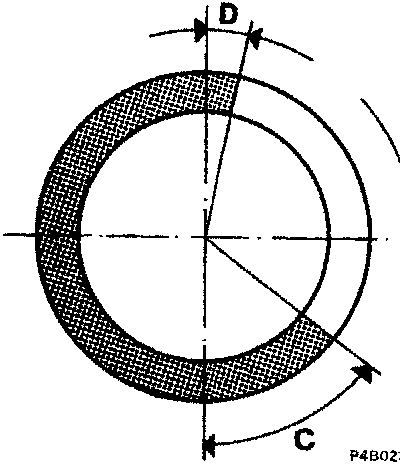

Timing diagram for the exhaust valve showing opening and closing points relative to piston position

TIMING ANGLES
A
Inlet
B		 ➔ opens btdc 7°
closes abdc 37°
C
Exhaust
D		 [exhaust symbol] opens bbdc 35°
closes atdc 5°

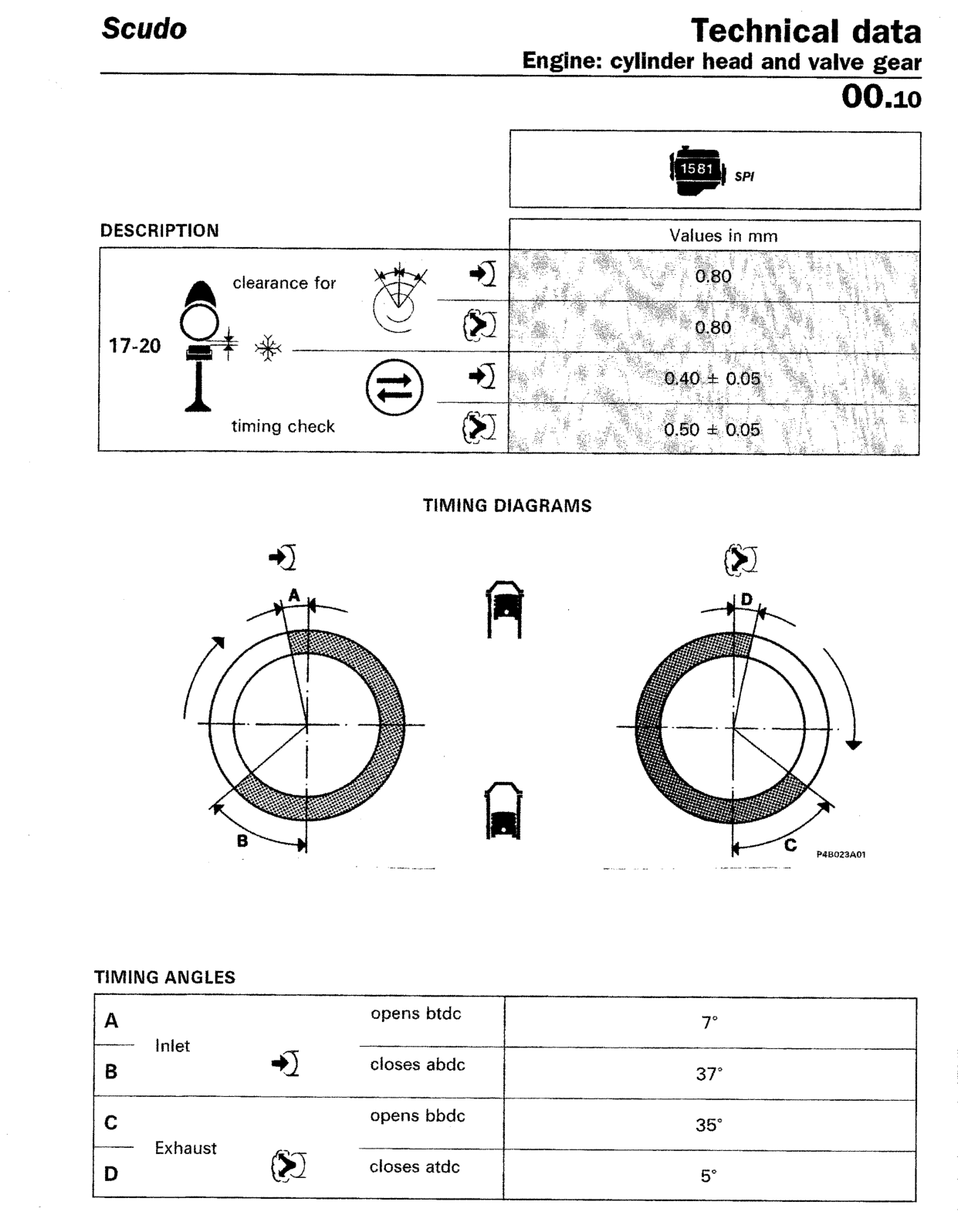

Original page
