Description (page 3 of 3)
- Make
- Fiat
- Model
- Scudo Factory Service Manual
- Year
- 1996–2006
- Section
- Engine
00 Introduction and technical dataDescription · page 3 of 3

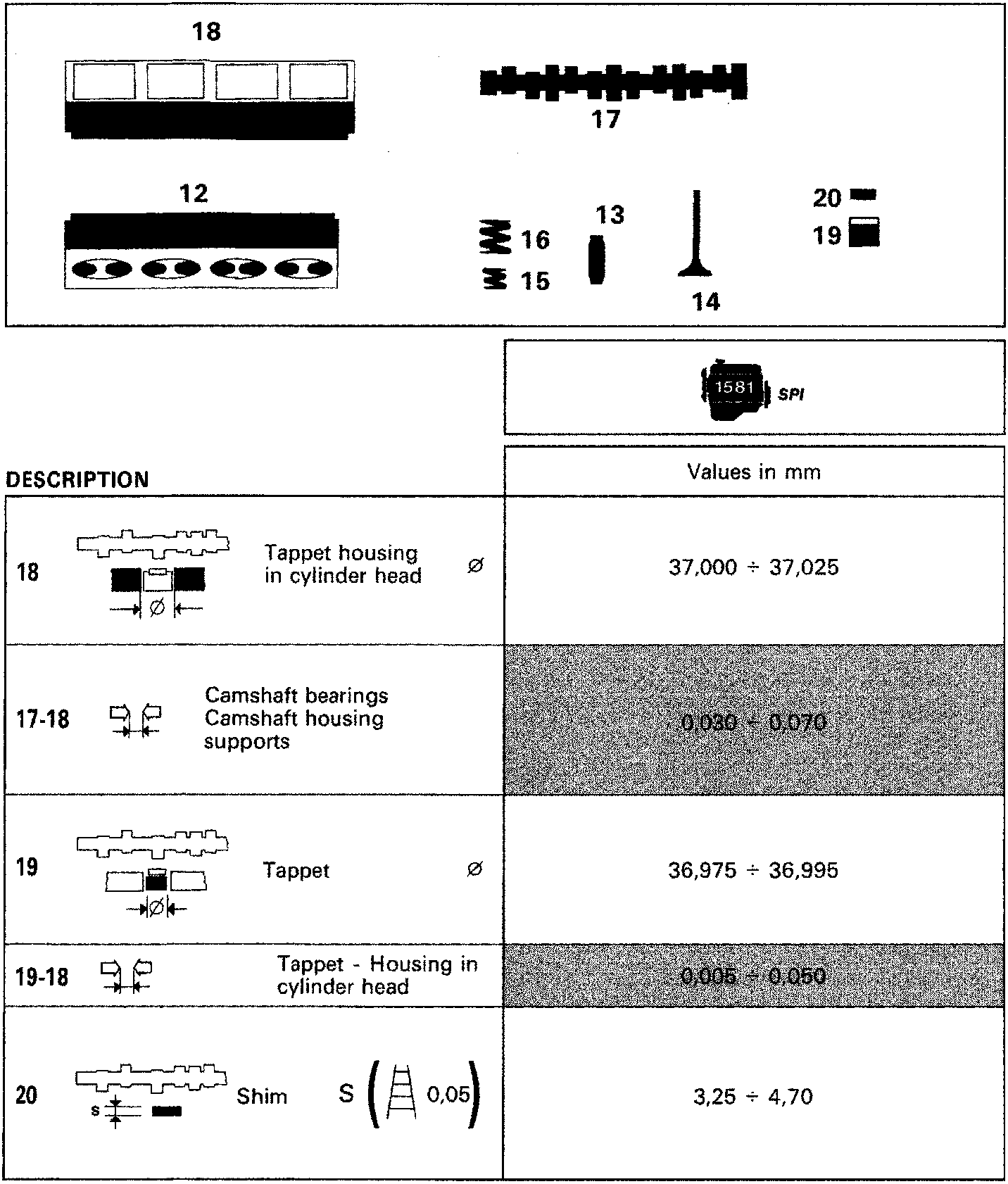

| DESCRIPTION | SPI |
|---|---|
| Values in mm | |
| 18 Tappet housing in cylinder head Ø | 37,000 ÷ 37,025 |
| 17-18 Camshaft bearings Camshaft housing supports |
0,030 ÷ 0,070 |
| 19 Tappet Ø | 36,975 ÷ 36,995 |
| 19-18 Tappet - Housing in cylinder head | 0,005 ÷ 0,050 |
| 20 Shim S ( 0,05 ) | 3,25 ÷ 4,70 |

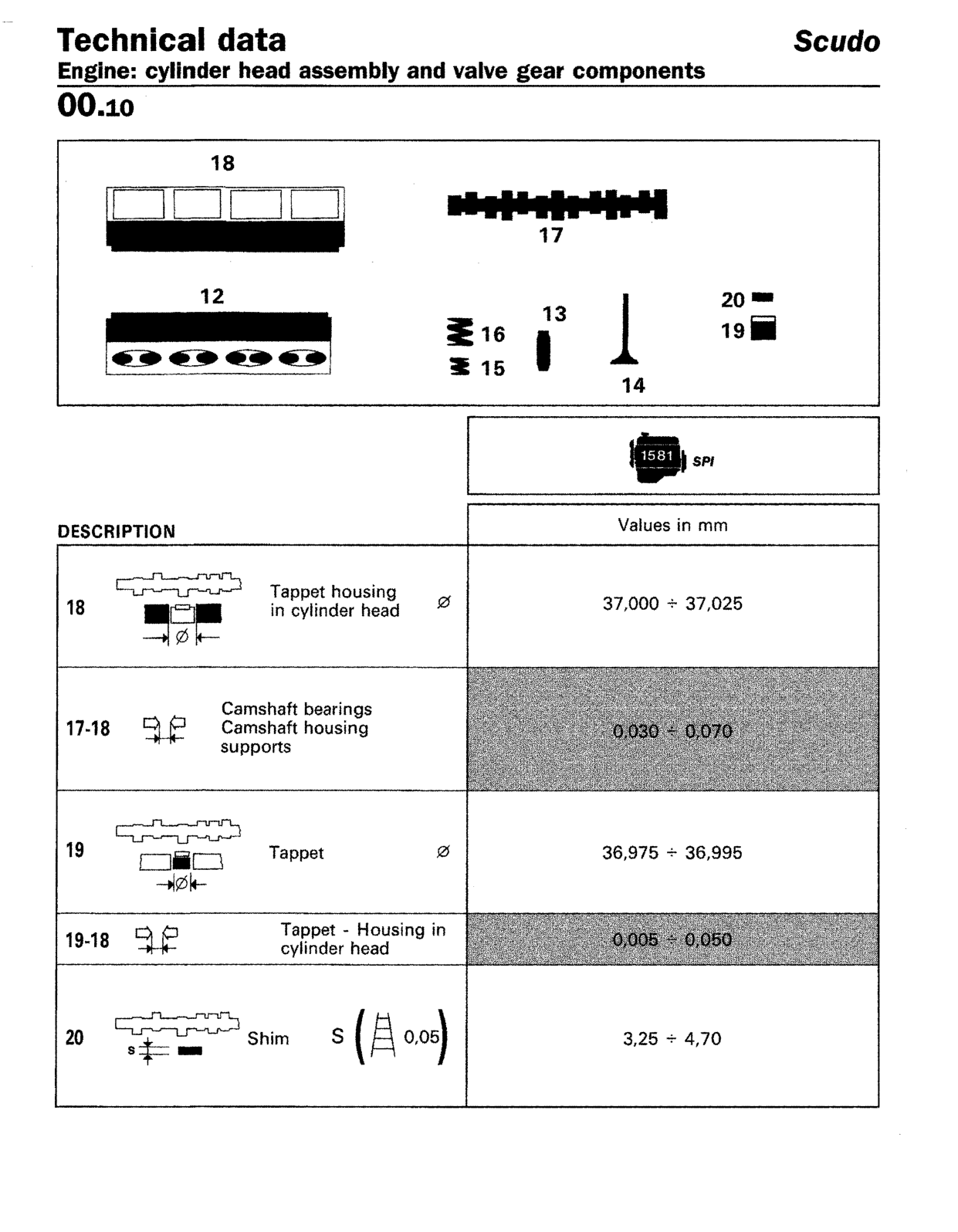

Original page
