00 Introduction and technical dataDescription · page 2 of 3

Values in mm

DESCRIPTION
14-13 Valve - Valve guide	0,030 ÷ 0,066
15 Internal valve spring	P1	14,1 ÷ 15,1 daN
	H1	31
	P2	26,39 ÷ 28,74 daN
	H2	21,5
16 External valve spring	P1	36,68 ÷ 39,63 daN
	H1	36
	P2	55,91 ÷ 60,82 daN
	H2	26,5
17 Camshaft bearings	Ø1	29,944÷29,960
	Ø2	47,935÷47,950
	Ø3	48,135÷48,150
	Ø4	48,335÷48,350
	Ø5	48,535÷48,550
17 Cam lift	8,8
18 Camshaft supports in camshaft housing	Ø1	29,989÷30,014
	Ø2	47,980÷48,005
	Ø3	48,180÷48,205
	Ø4	48,380÷48,405
	Ø5	48,580÷48,605

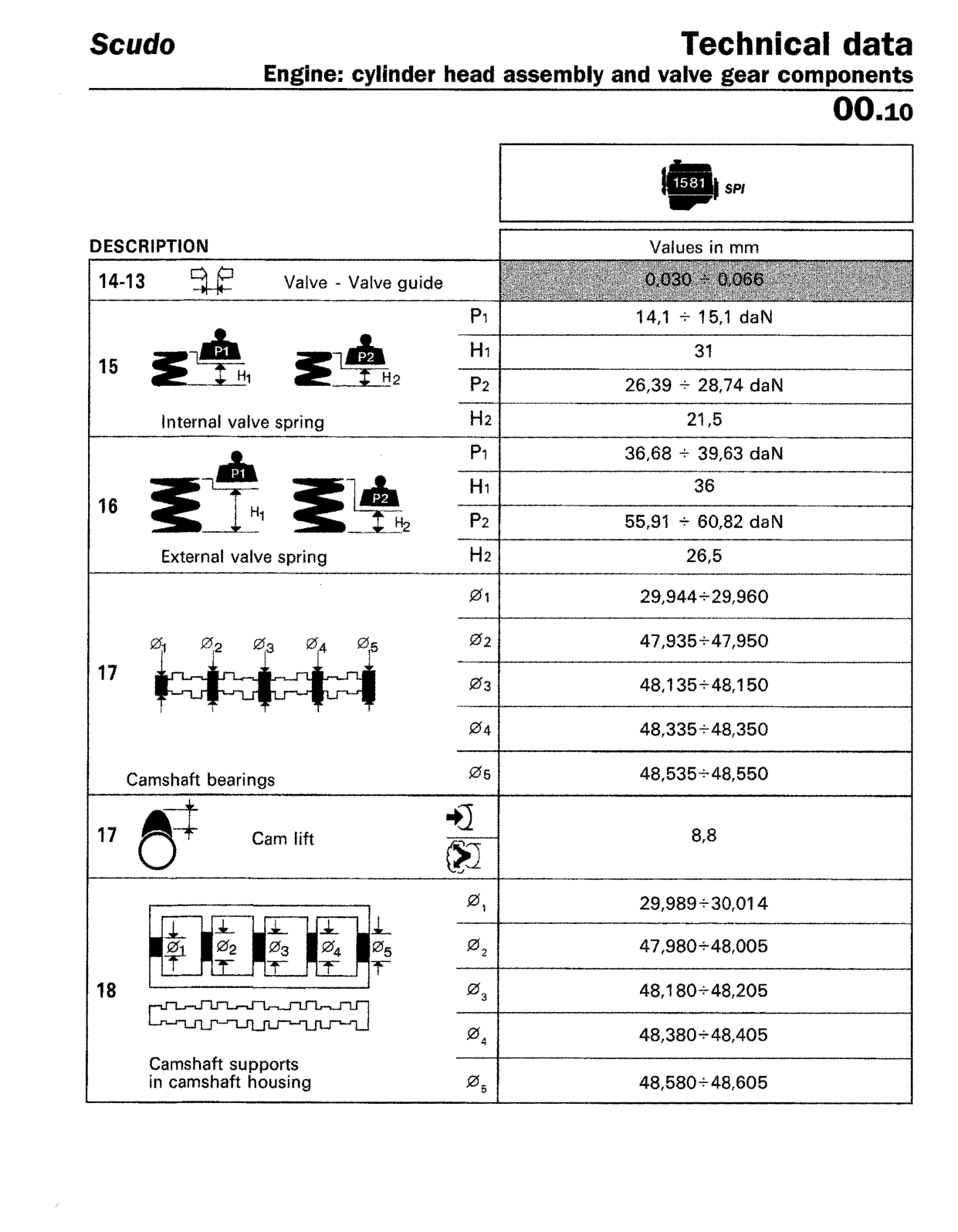

Original page
