00 Introduction and technical dataDescription

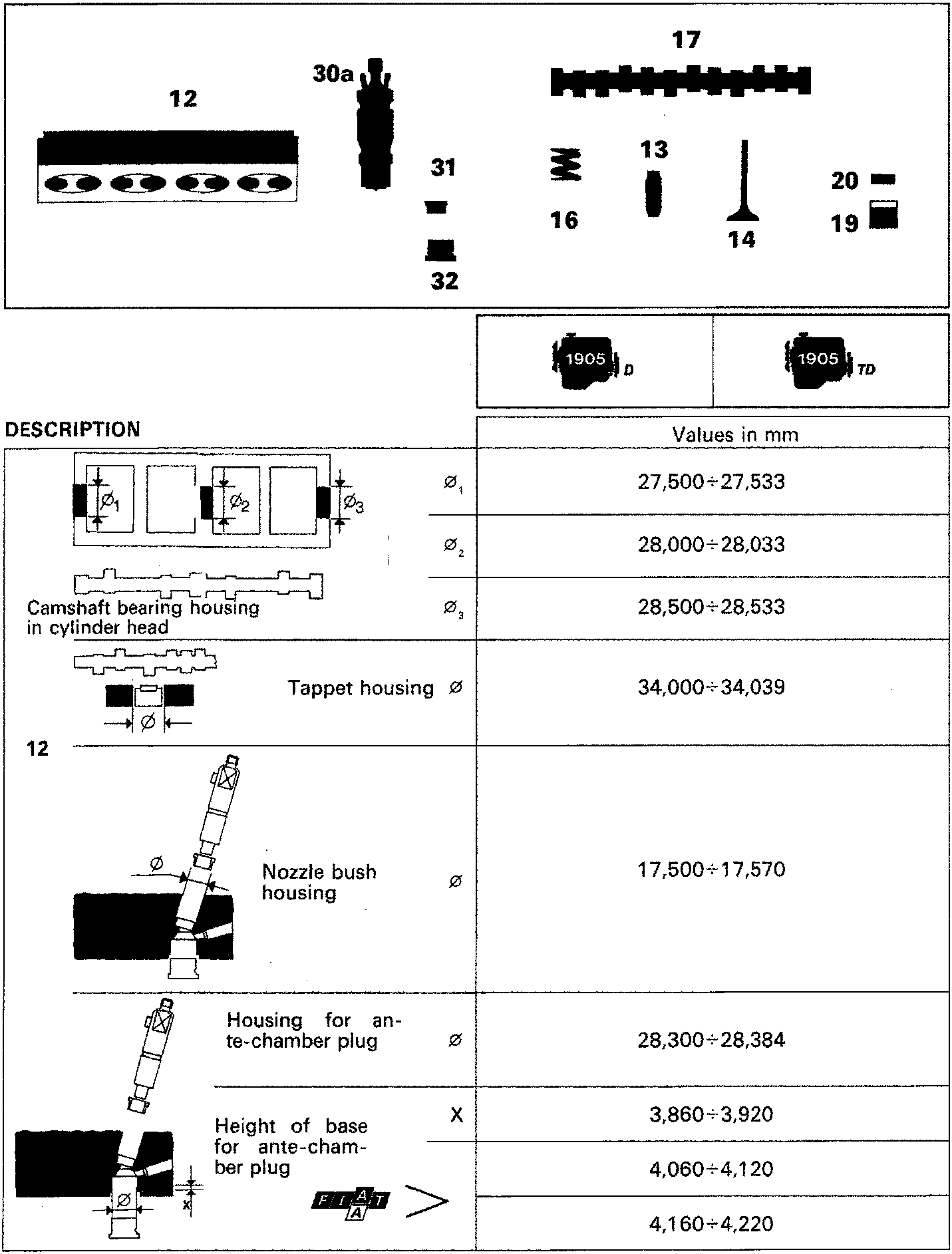

DESCRIPTION
| DESCRIPTION | 1905 D | 1905 TD |
|---|---|---|
| Values in mm | ||
Camshaft bearing housing in cylinder head |
Ø1 | 27,500÷27,533 |
| Ø2 | 28,000÷28,033 | |
| Ø3 | 28,500÷28,533 | |
| Tappet housing Ø | 34,000÷34,039 | 34,000÷34,039 |
| Nozzle bush housing |
Ø | 17,500÷17,570 |
| Housing for an- te-chamber plug |
Ø | 28,300÷28,384 |
| Height of base for ante-cham- ber plug |
X | 3,860÷3,920 |
| 4,060÷4,120 | ||
| 4,160÷4,220 | ||

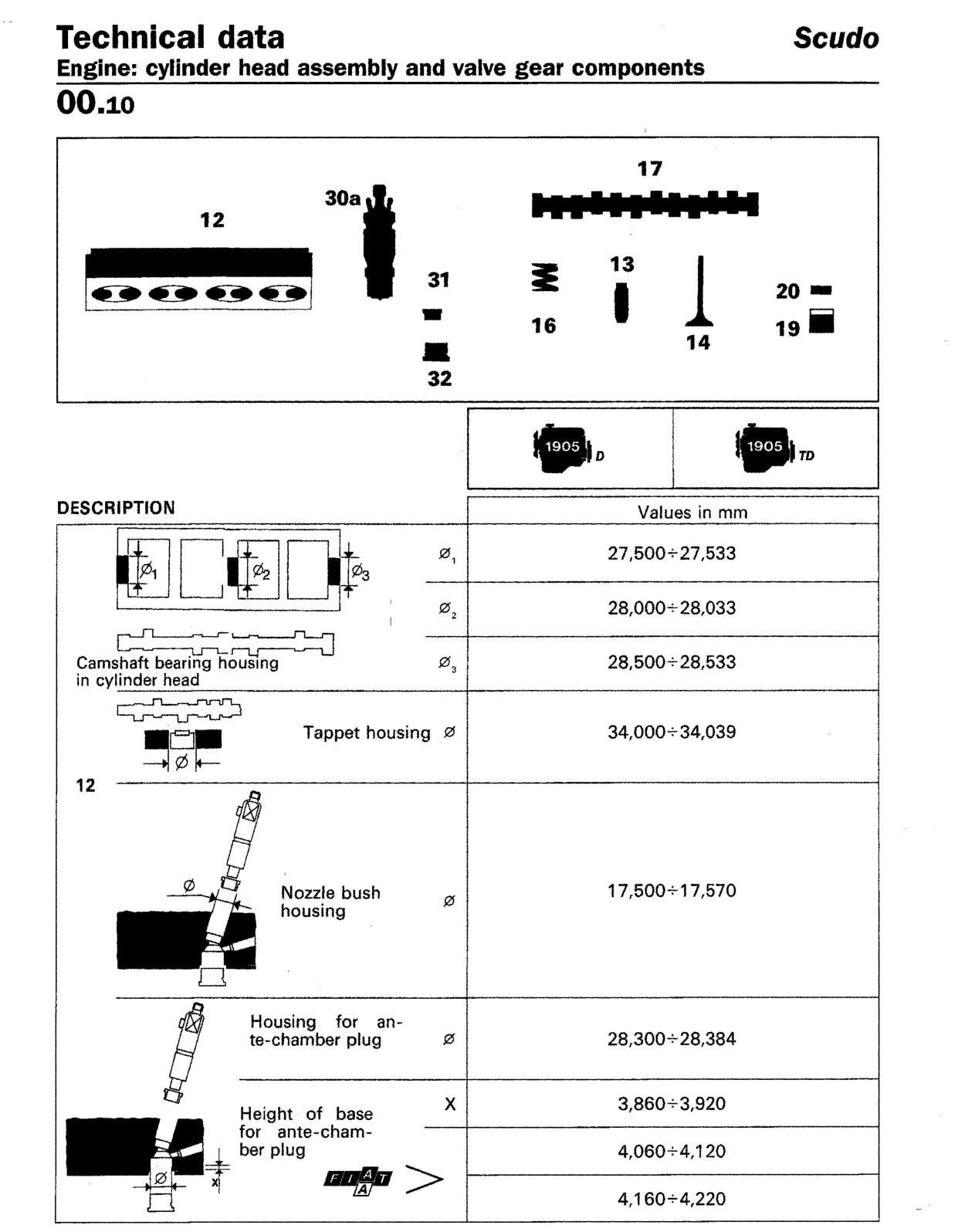

Original page
