00 Introduction and technical dataDescription · page 2 of 2
| F1 | 1905 D | 1905 TD | |
|---|---|---|---|
| Values in mm | |||
| 3 Gudgeon pin housing ∅ | 25,003÷25,008 | 28,003÷28,008 | |
| 4 Gudgeon pin ∅ | 25,000÷24,994 | 28,000÷27,994 | |
| – | |||
| 4-3 Gudgeon pin - Housing | 0,003÷0,014 | ||
| 3 Piston ring grooves | 1 | 2,05÷2,07 | 3,5 |
| 2 | 2,03÷2,05 | 2,04÷2,06 | |
| 3,04÷3,06 | |||
| 5 Piston rings ∅ | 1 | – | – |
| 2 | – | 1,990÷1,975 | |
| 3 | 2,99÷2,97 | ||
| – | – | ||
| 5-3 Piston rings Piston ring grooves |
1 | – | – |
| 2 | – | 0,050÷0,085 | |
| 3 | 0,050÷0,090 | ||
| 5-1 Opening at end of piston rings in cylinder bore |
1 | – | – |
| 2 | – | – | |
| 3 | 0,10÷0,80 | ||

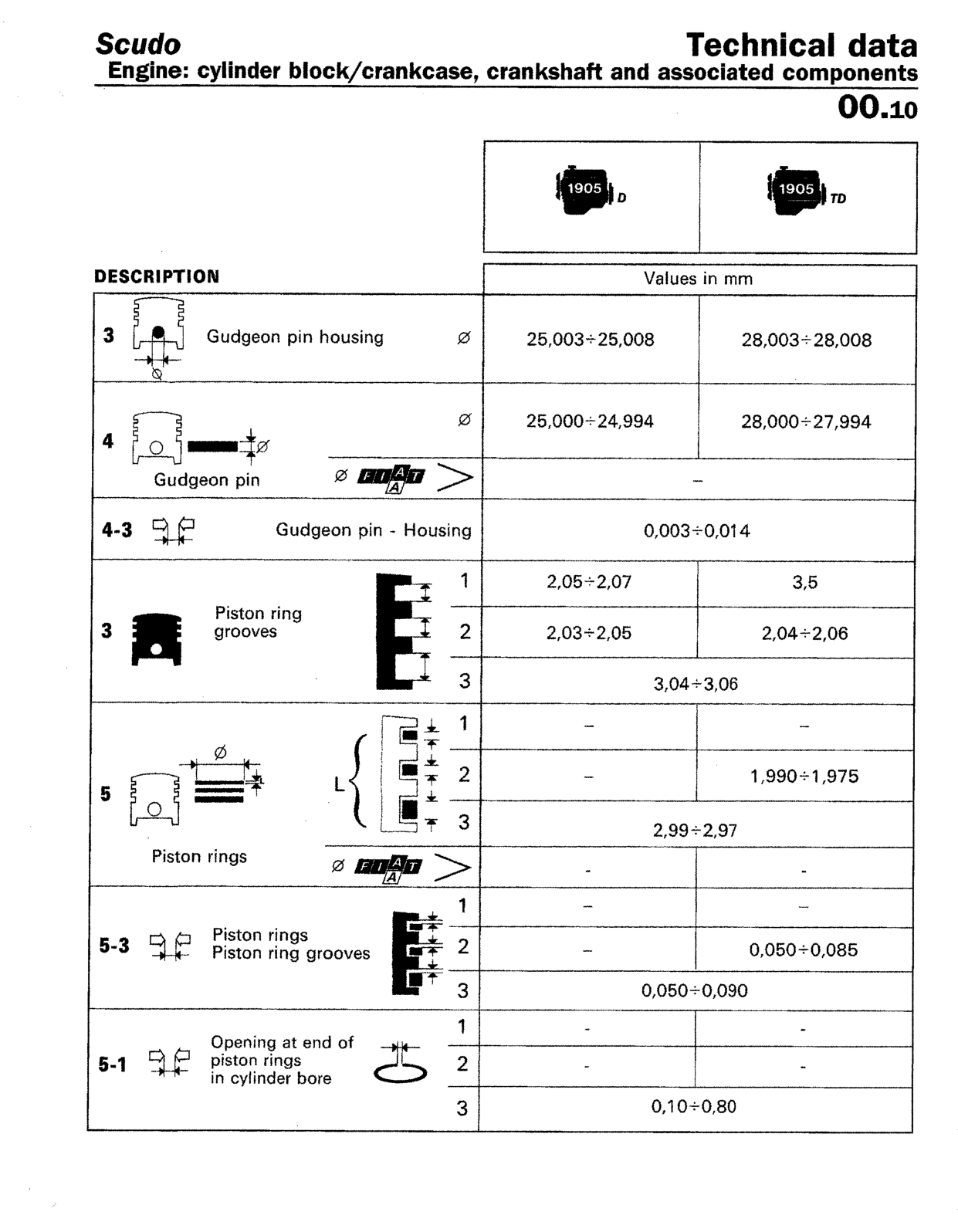

Original page
