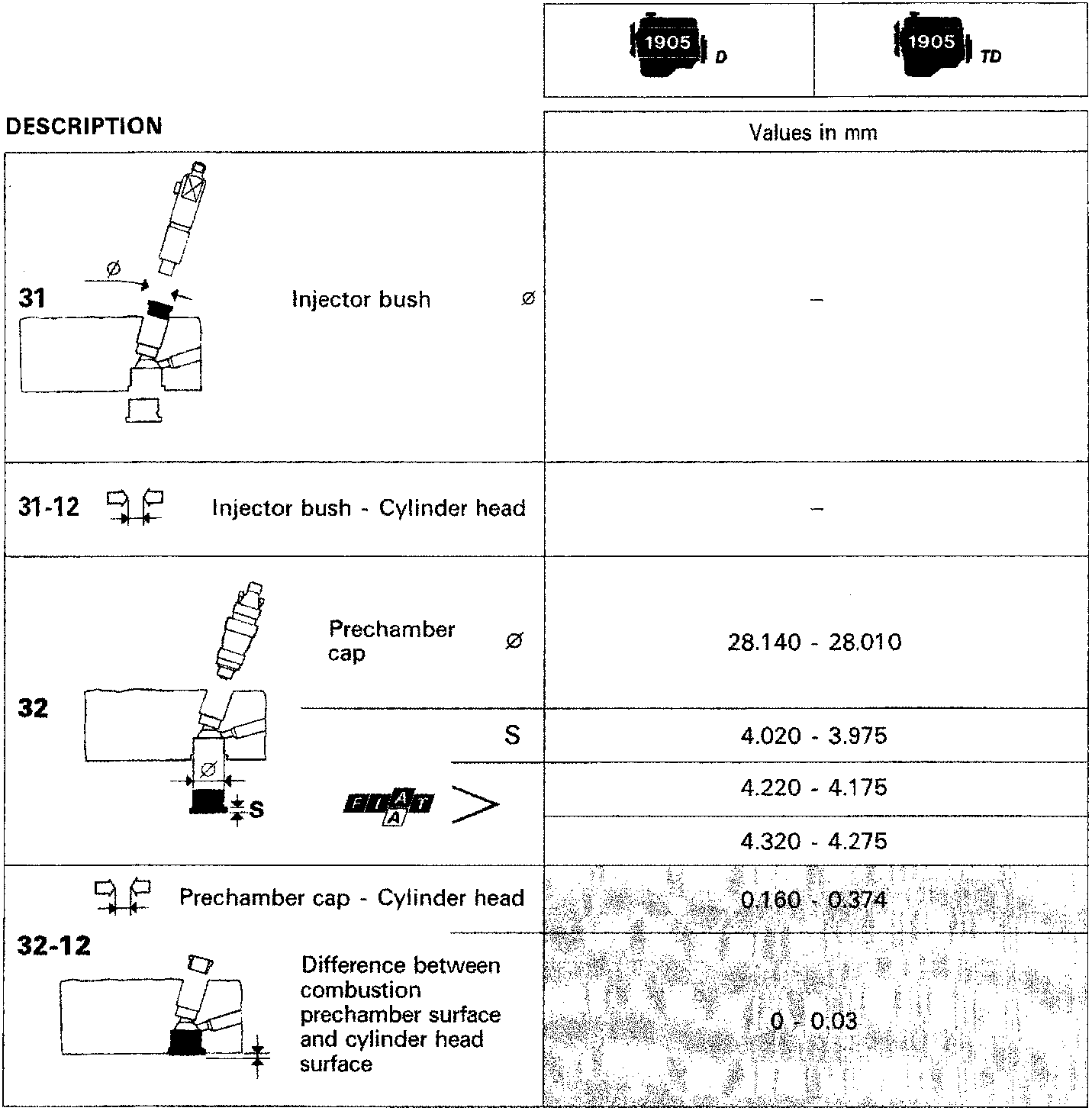

DESCRIPTION	1905 D	1905 TD
	Values in mm
Injector bush	∅	–
Injector bush - Cylinder head		–
Prechamber cap	∅	28.140 - 28.010
	S	4.020 - 3.975
		4.220 - 4.175
		4.320 - 4.275
Prechamber cap - Cylinder head		0.160 - 0.374
Difference between combustion prechamber surface and cylinder head surface		0 - 0.03
