Replacing partial rear wing (page 2 of 7)

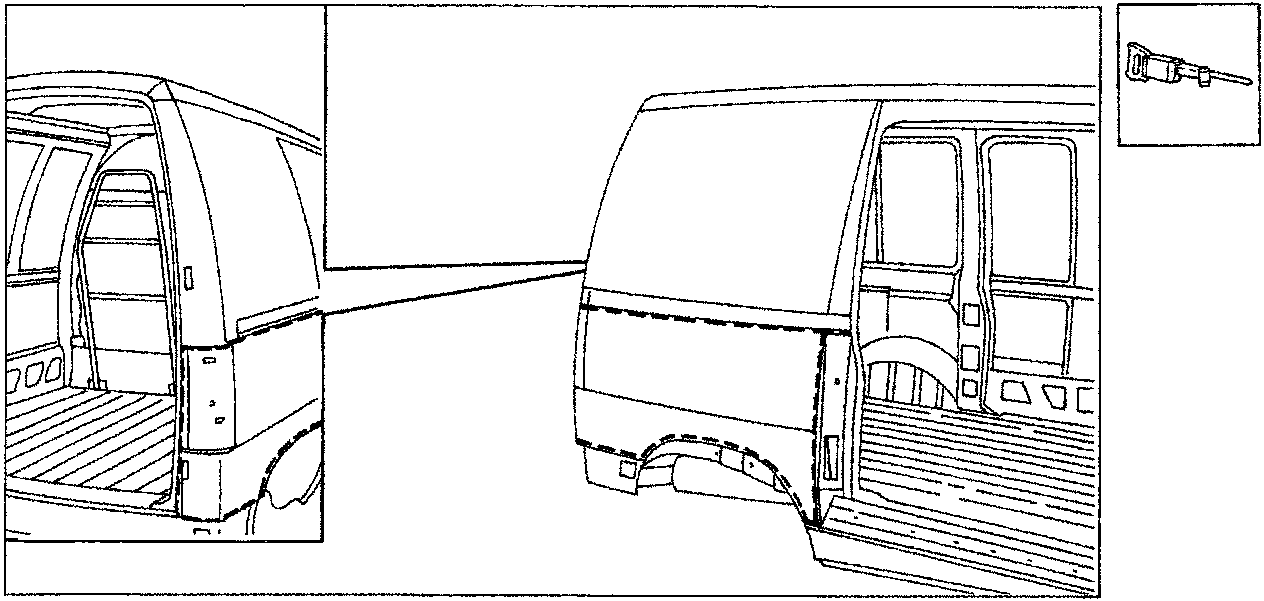

Cut the wing using a pneumatic saw, following the dotted lines shown in the figure below.

Remove the rear wing taking care not to deform the inner framework.

If it is difficult to remove the wing, use a hot air blower to warm up the section of sealant in the area of the wheelarch and central wing.

When carrying out the operations described, strictly follow accident prevention regulations. Wear protective shoes, ear defenders and gloves during cutting, welding mask and gloves during welding and protective mask and gloves during painting.

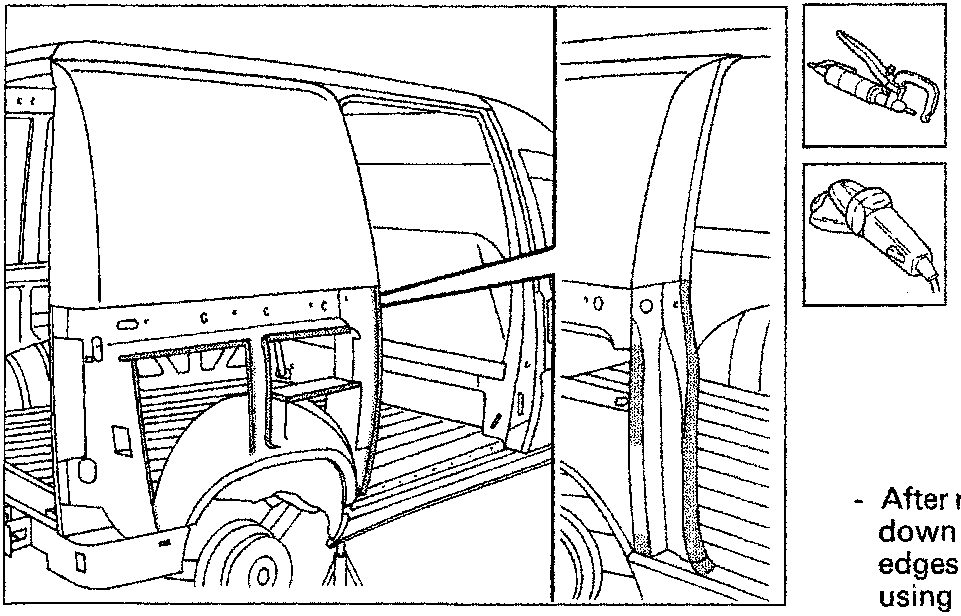

• After removing the off-cuts and ground down the spot welds, straighten the edges of the panels shown in the figure using a shaped stake and hammer.
