Replacing partial rear wing (page 4 of 7)

Make
Fiat
Model
Scudo Factory Service Manual
Year
1996–2006
Section
Replacing body panels
70 BodyworkReplacing partial rear wing · page 4 of 7

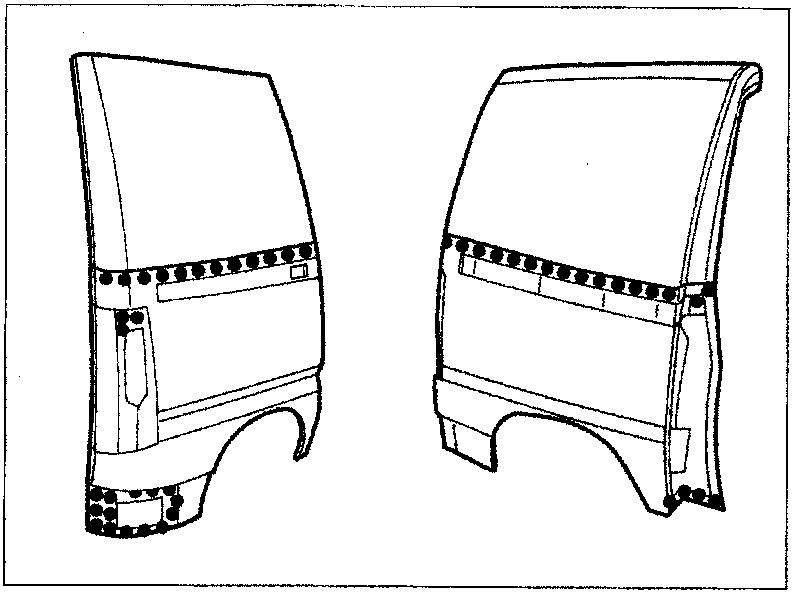

Diagram showing the welding points on two vehicle body panels
Diagram of a bead welder tool
  • Drill holes in the new part at the points where the fill welds will be made using the bead welder.

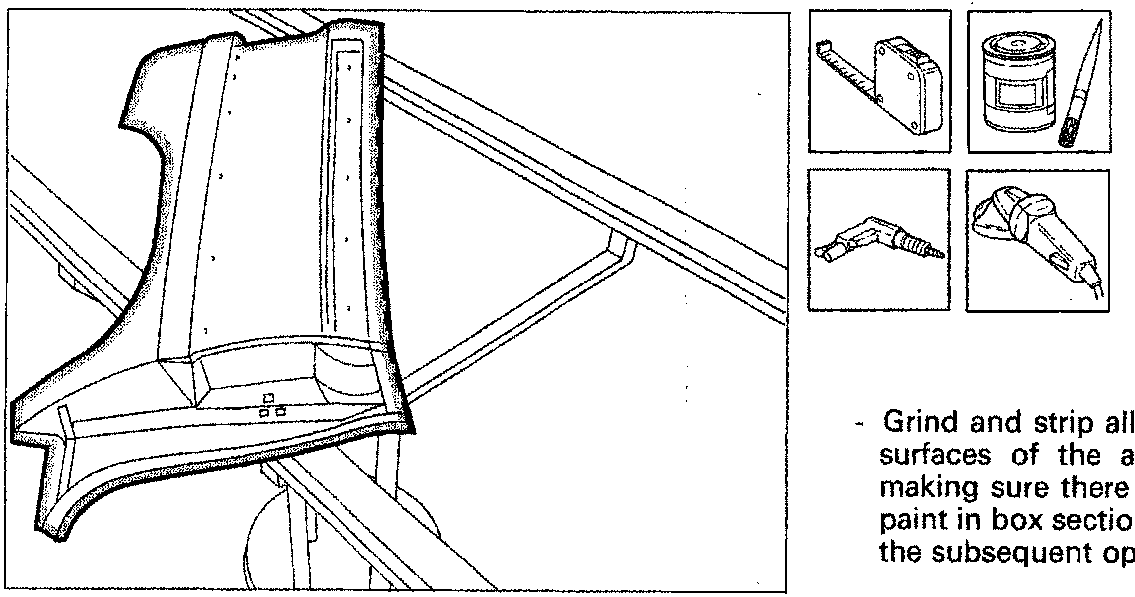

Diagram showing a vehicle body panel being prepared for welding, with inset images of tools including a measuring tape, paint can, brush, bead welder, and grinder
  • Grind and strip all the inner and outer surfaces of the areas to be welded, making sure there is no burnt or loose paint in box sections that would impair the subsequent operations.

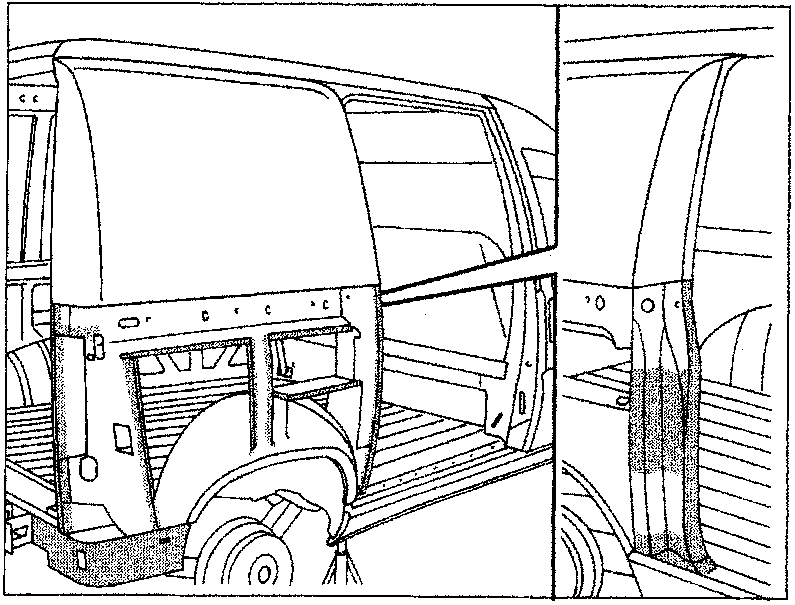

Diagram showing the installation of a body panel onto the vehicle frame
Diagram of a paint can and brush
  • Apply an electro-weldable anti-corrosion protection on the inner edges to be welded.
