70 BodyworkReplacing partial rear wing · page 7 of 7

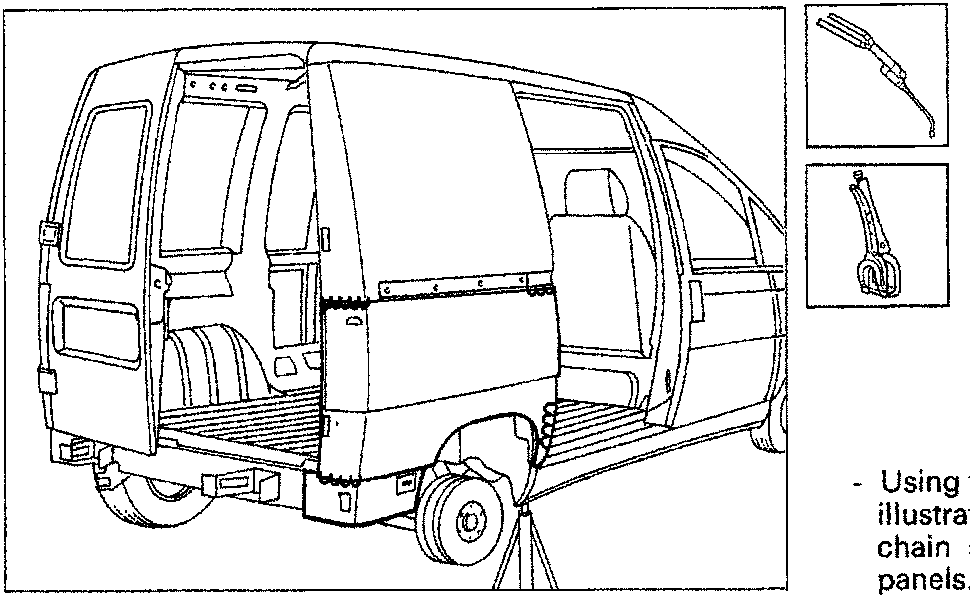

Diagram showing rear of van with weld points indicated, alongside illustrations of a bead welder and spot weld drill. Caption P4B07AM01.
  • Using the bead welder, weld the points illustrated in the figure, working in chain spots so as not to deform the panels

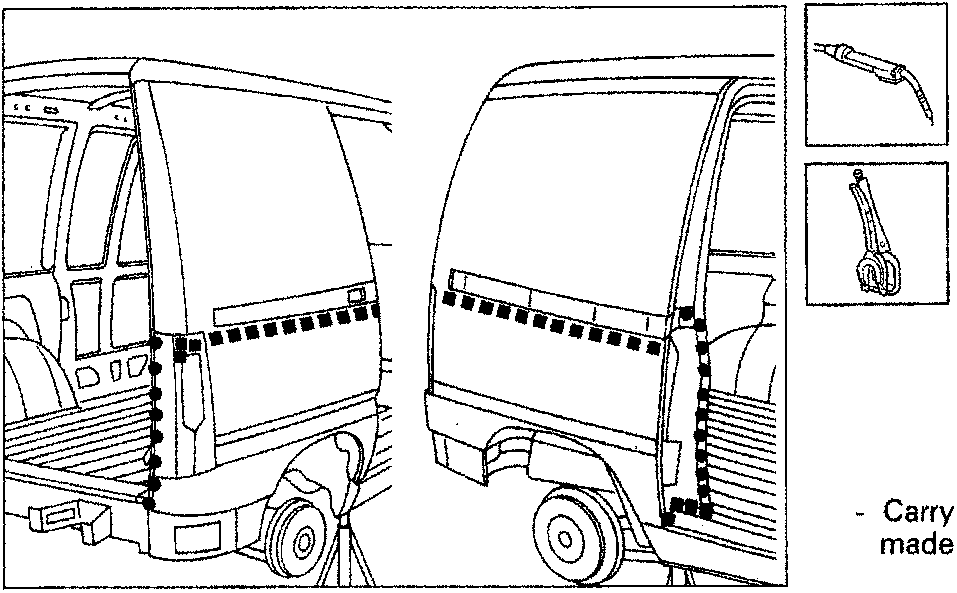

Diagram showing rear of van with fill welding areas marked, alongside illustrations of a MIG torch and spot weld drill. Caption P4B07AM02.
  • Carry out the fill welding in the holes made previously in the new part.

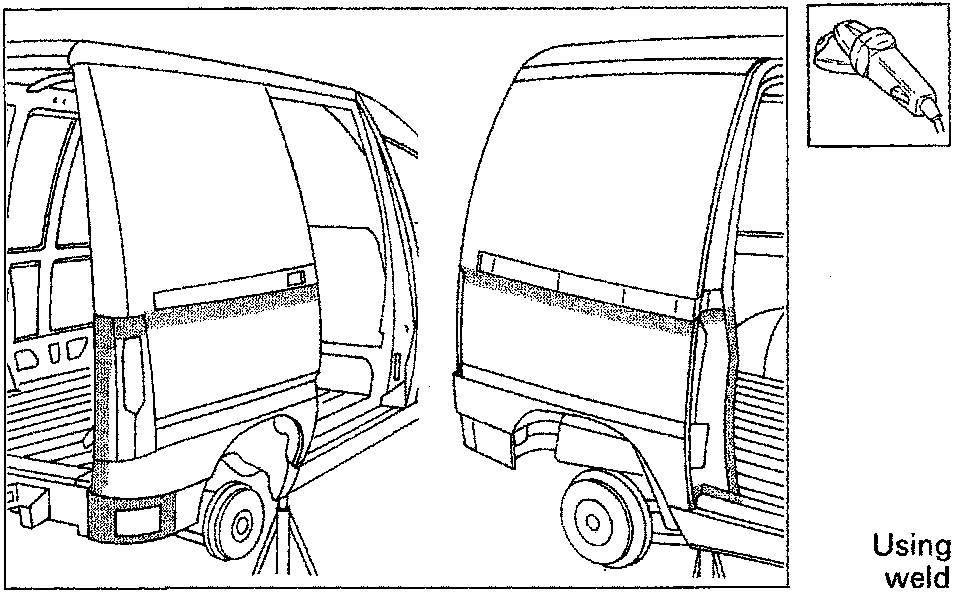

Diagram showing rear of van with smoothed weld areas, alongside an illustration of a disc grinder. Caption P4B07AM03.

Using a disc grinder, smooth down the weld beads.
