70 BodyworkReplacing partial rear wing · page 5 of 7

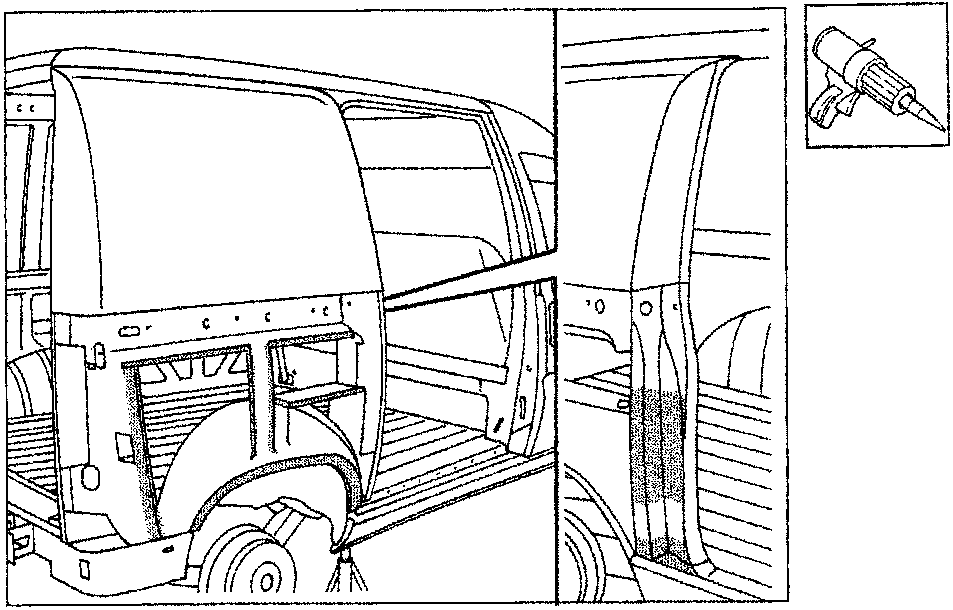

Place sealant between the wheelarch, inner reinforcements and wing along the section shown in the figure.

Diagram showing the rear wheelarch area of a van with a shaded section indicating where sealant should be applied between the wheelarch, inner reinforcements and wing. An inset shows a sealant gun.

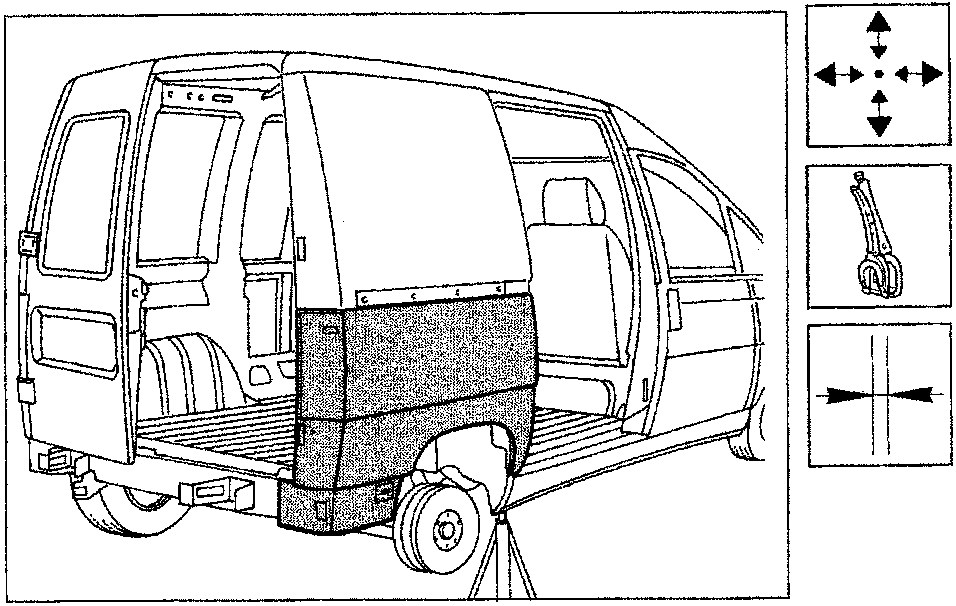

Place the new part on the vehicle, check that it is lined up with the adjacent parts and that parts to be butt welded are perfectly aligned.

Diagram showing the rear side of a van with a new panel fitted over the wheelarch area. To the right are three small icons: arrows pointing in four directions, a welding tool, and arrows indicating alignment.
