70 BodyworkReplacing partial rear wing · page 6 of 7

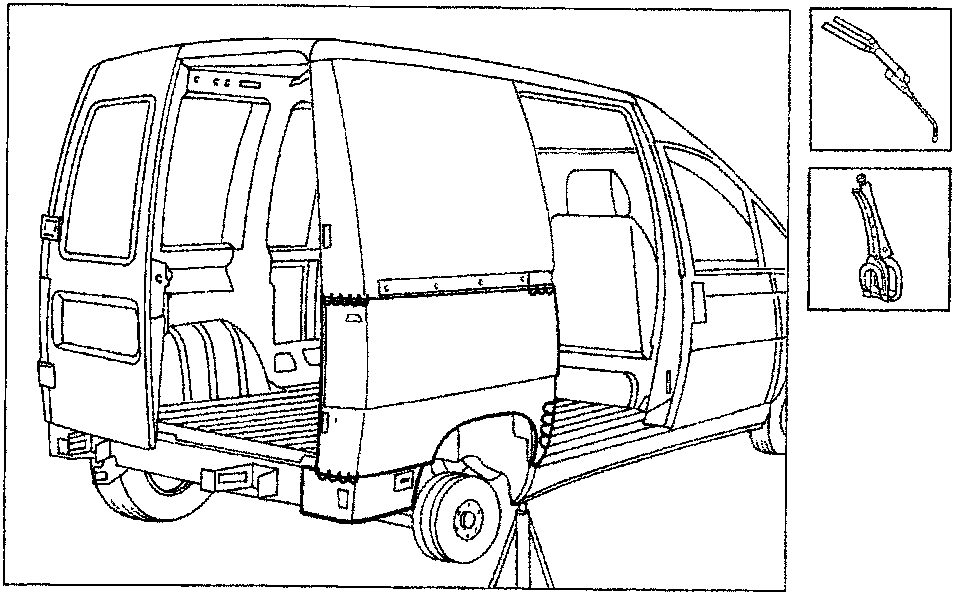

Start the welding operations using the bead welder, and tack the corners of the new part.

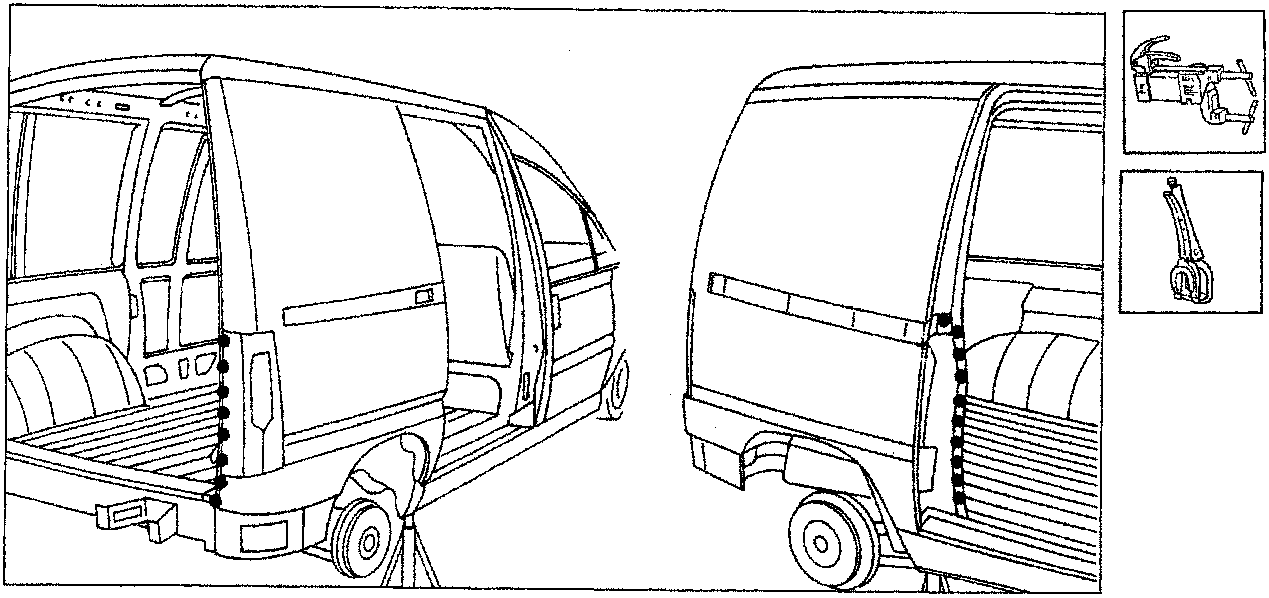

Carry out the spot welding in the areas shown.
During spot welding, it is essential to ensure that the panels are absolutely clean and that the parts to be welded are perfectly matched, to avoid excessive resistance causing the spot to burn which would result in fragile welds.
