Replacing partial rear wing (page 3 of 7)

Make

Fiat

Model

Scudo Factory Service Manual

Year

1996–2006

Section

Replacing body panels

70 BodyworkReplacing partial rear wing · page 3 of 7

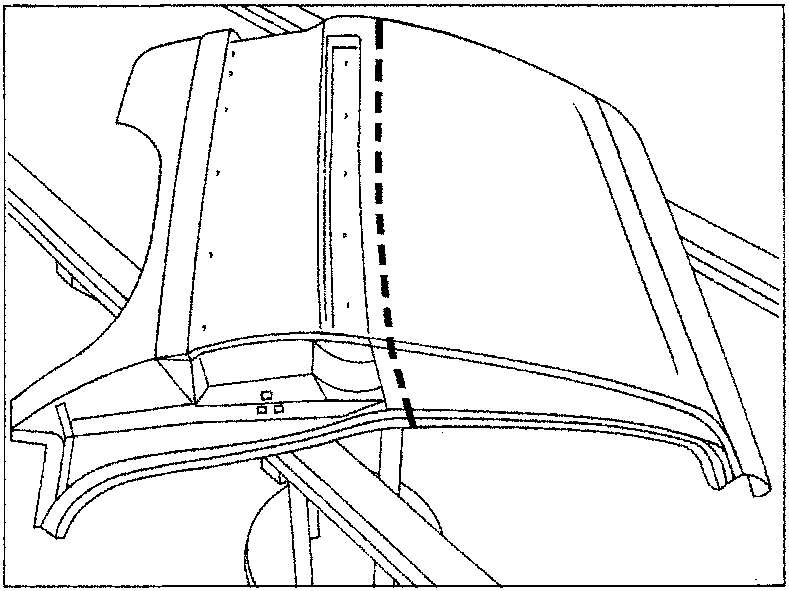

• Remove the surplus from the new part, so that it is about 50 mm longer than the part removed from the vehicle.

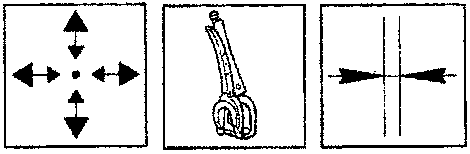

• Place the part on the vehicle and check that it lines up with the adjacent parts, then secure it with the appropriate locking grippers;

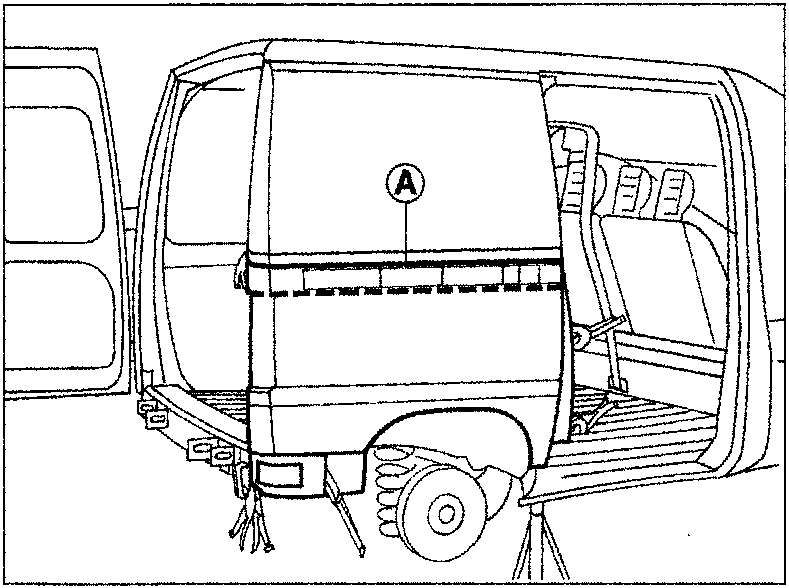

• after making sure that the overlap is perfect, mark (A) on the body shell the parts to be removed, using a scribe.

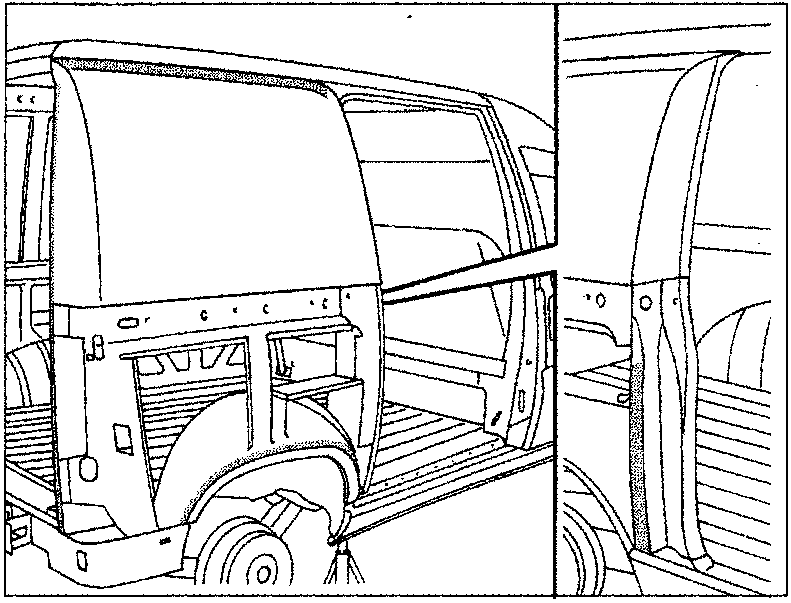

• Take the part off the vehicle and remove the surplus from the pillars and door sill.
