Wiring diagrams and electrical functions REVERSING LIGHTS - Wiring diagram
REVERSING LIGHTS - Wiring diagram

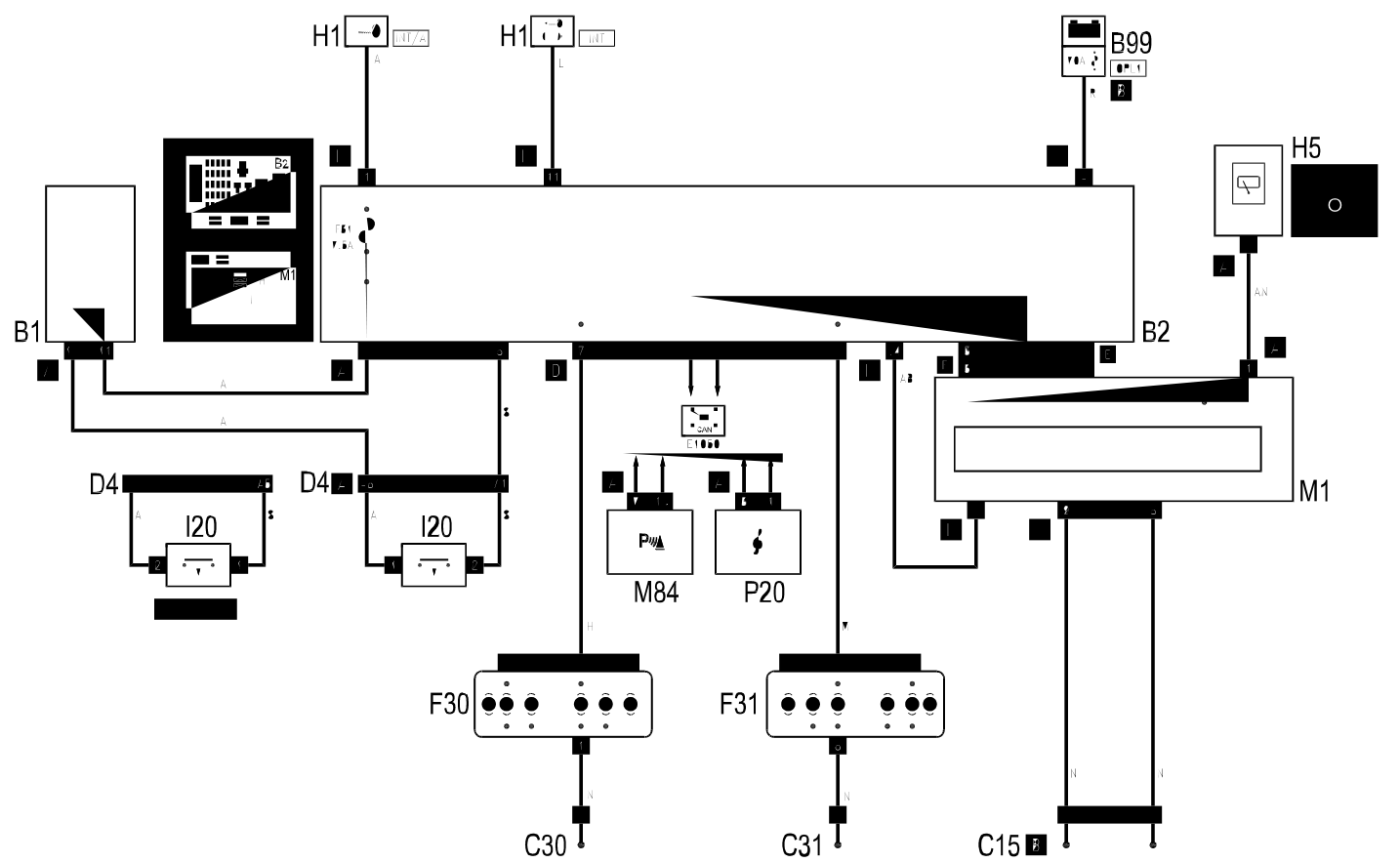

3 doors
Wiring diagram
COMPONENTS
Component code Name Assembly reference B1 Engine compartment junction unit 5505A B2 Junction unit under dashboard 5505A B99 Maxifuse box on battery 5530B C15 Facia earth, driver's side C30 Left rear earth C31 Rear right earth D4 Front/engine connection D4 Front/engine coupling F30 Left rear. light cluster (fixed section) 5540A F30 Left. rear( light cluster on fixed part) 5540A F31 Right. rear light cluster (fixed part) 5540A F35 Left rear light cluster (moving part on boot lid) F36 Right. rear light cluster on moving( part of boot lid) F36 Right. rear( light cluster on moving part of boot lid) H1 Ignition switch 5520A H5 Stalk unit 5550A H5 Steering column switch unit 5550A I20 Reversing lights switch M1 Body computer 5505A M84 Parking sensor control unit P20 Car radio 5570T P20 Radio 5570T

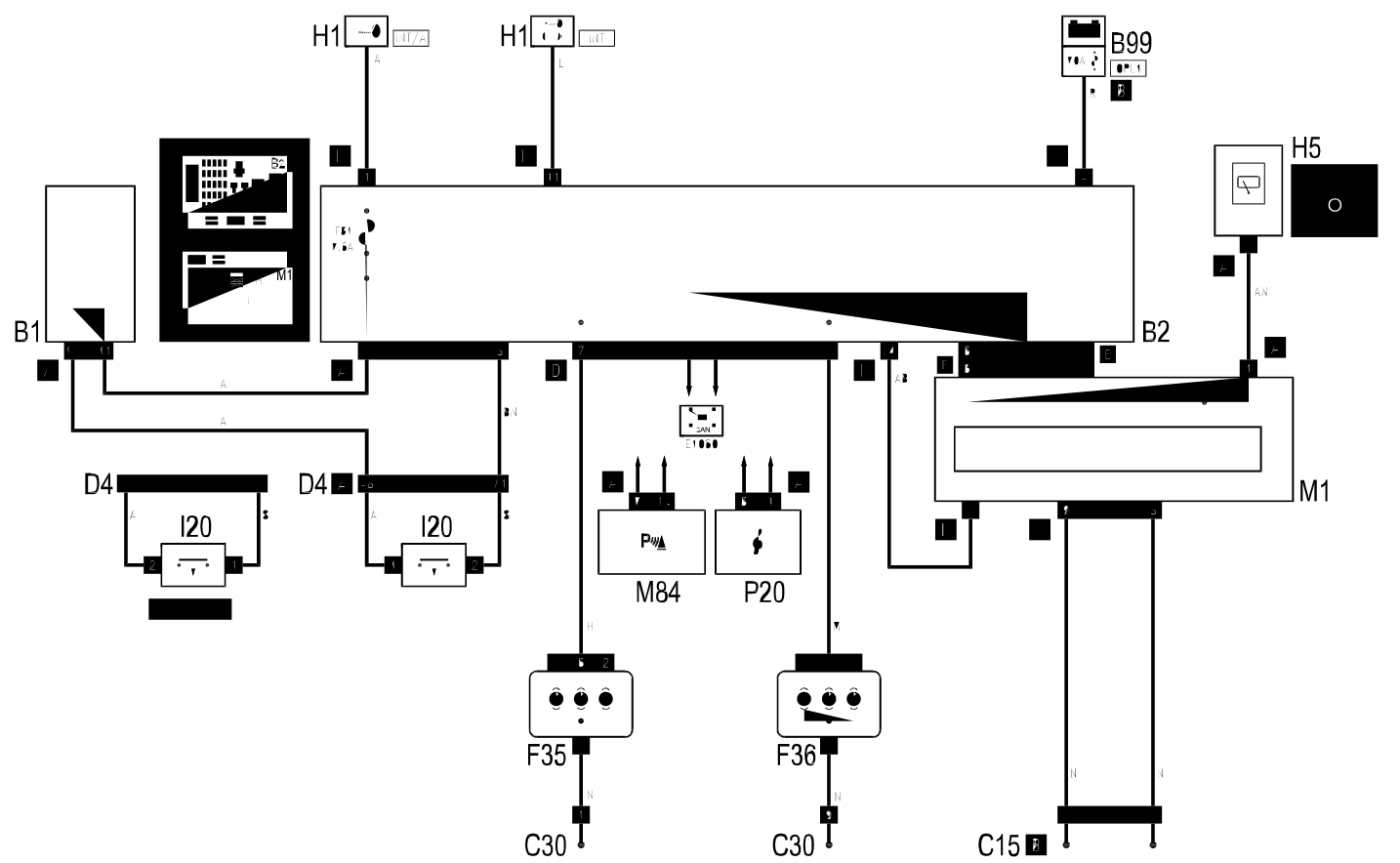

5 doors
Wiring diagram
COMPONENTS
Component code Name Assembly reference B1 Engine compartment junction unit 5505A B2 Junction unit under dashboard 5505A B99 Maxifuse box on battery 5530B C15 Facia earth, driver's side C30 Left rear earth C31 Rear right earth D4 Front/engine connection D4 Front/engine coupling F30 Left rear. light cluster (fixed section) 5540A F30 Left. rear( light cluster on fixed part) 5540A F31 Right. rear light cluster (fixed part) 5540A F35 Left rear light cluster (moving part on boot lid) F36 Right. rear light cluster on moving( part of boot lid) F36 Right. rear( light cluster on moving part of boot lid) H1 Ignition switch 5520A H5 Stalk unit 5550A H5 Steering column switch unit 5550A I20 Reversing lights switch M1 Body computer 5505A M84 Parking sensor control unit P20 Car radio 5570T P20 Radio 5570T

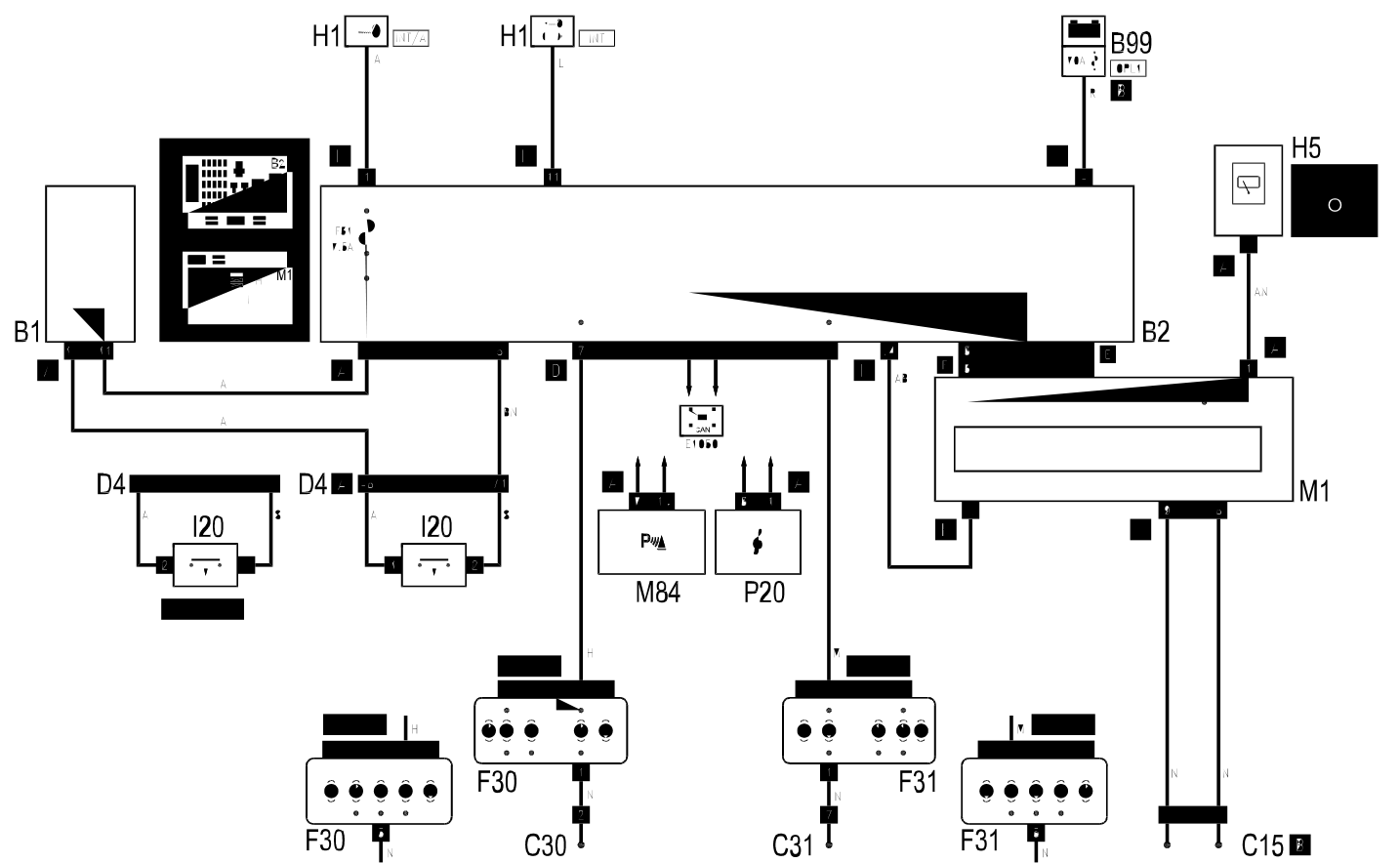

S.W.
Wiring diagram
COMPONENTS
Component code Name Assembly reference B1 Engine compartment junction unit 5505A B2 Junction unit under dashboard 5505A B99 Maxifuse box on battery 5530B C15 Facia earth, driver's side C30 Left rear earth C31 Rear right earth D4 Front/engine connection D4 Front/engine coupling F30 Left rear. light cluster (fixed section) 5540A F30 Left. rear( light cluster on fixed part) 5540A F31 Right. rear light cluster (fixed part) 5540A F35 Left rear light cluster (moving part on boot lid) F36 Right. rear light cluster on moving( part of boot lid) F36 Right. rear( light cluster on moving part of boot lid) H1 Ignition switch 5520A H5 Stalk unit 5550A H5 Steering column switch unit 5550A I20 Reversing lights switch M1 Body computer 5505A M84 Parking sensor control unit P20 Car radio 5570T P20 Radio 5570T
19 Electrical
