Wiring diagrams and electrical functions DIPPED HEADLAMPS - Wiring diagram
DIPPED HEADLAMPS - Wiring diagram

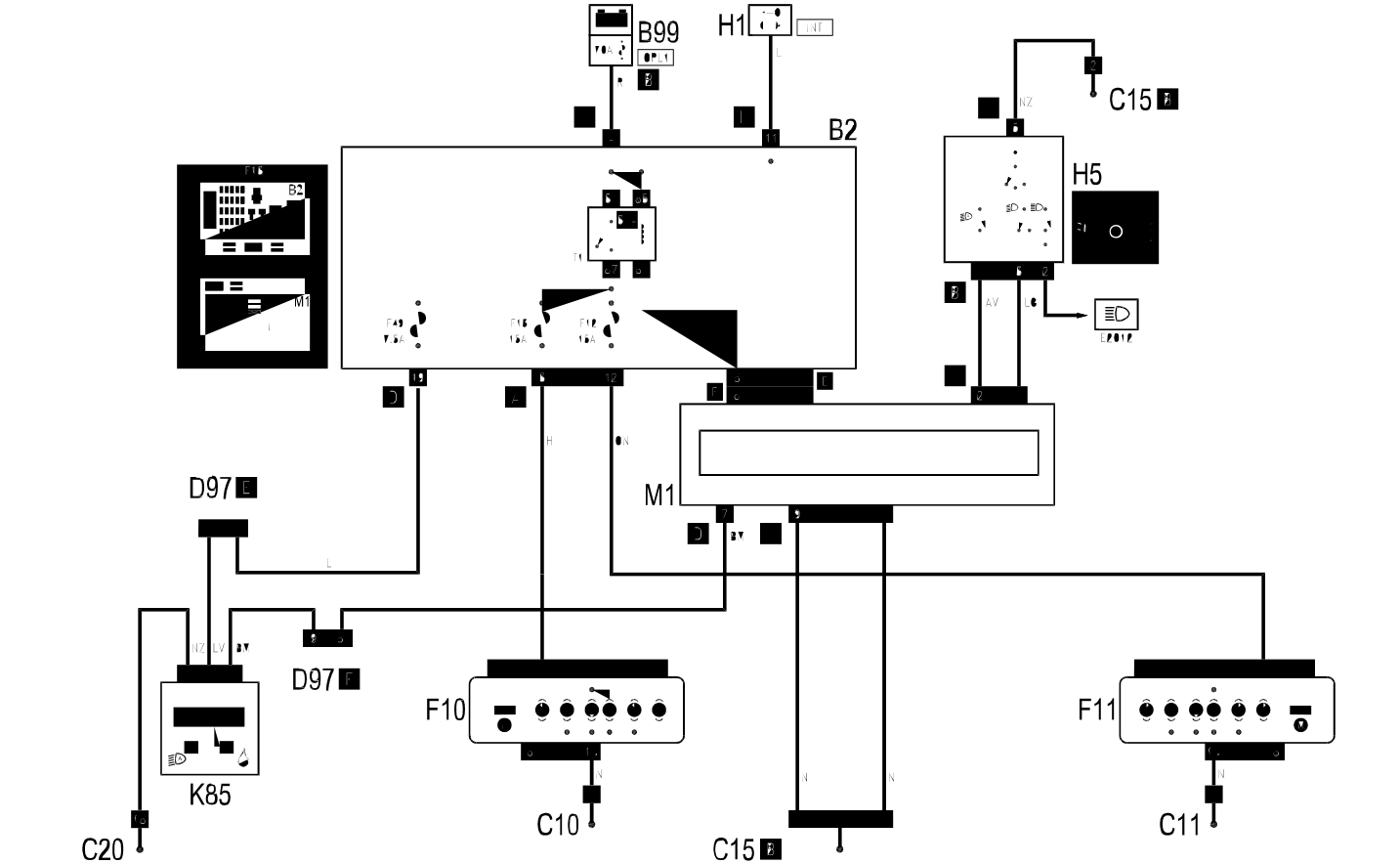

Wiring diagram
COMPONENTS
Component code Name Assembly reference B2 Junction unit under dashboard 5505A B99 Maxifuse box on battery 5530B C10 Front left earth C11 Right front earth C15 Facia earth, driver's side C20 Passenger side dashboard earth D97 Short circuiting coupling F10 Left headlamp 5540B F11 Right headlamp 5540B H1 Ignition switch 5520A H5 Stalk unit 5550A H5 Steering column switch unit 5550A K85 Rain-dusk sensor K85 Rain/dusk sensor M1 Body computer 5505A

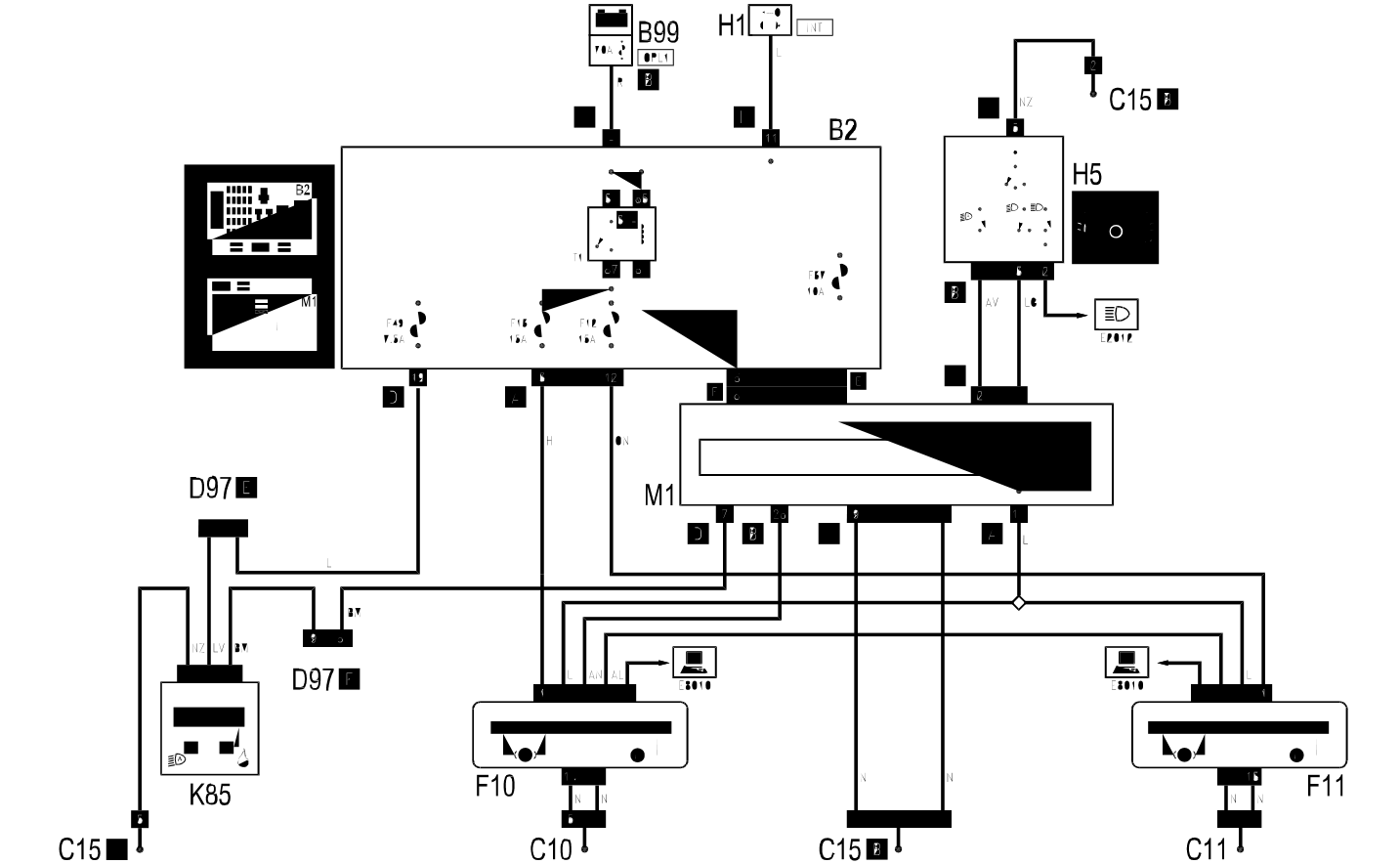

Xenon Gas headlamps
Wiring diagram
COMPONENTS
Component code Name Assembly reference B2 Junction unit under dashboard 5505A B99 Maxifuse box on battery 5530B C10 Front left earth C11 Right front earth C15 Facia earth, driver's side C20 Passenger side dashboard earth D97 Short circuiting coupling F10 Left headlamp 5540B F11 Right headlamp 5540B H1 Ignition switch 5520A H5 Stalk unit 5550A H5 Steering column switch unit 5550A K85 Rain-dusk sensor K85 Rain/dusk sensor M1 Body computer 5505A
Right hand drive
Wiring diagram
COMPONENTS
Component code Name Assembly reference B2 Junction unit under dashboard 5505A B99 Maxifuse box on battery 5530B C10 Front left earth C11 Right front earth C15 Facia earth, driver's side C20 Passenger side dashboard earth D97 Short circuiting coupling F10 Left headlamp 5540B F11 Right headlamp 5540B H1 Ignition switch 5520A H5 Stalk unit 5550A H5 Steering column switch unit 5550A K85 Rain-dusk sensor K85 Rain/dusk sensor M1 Body computer 5505A
19 Electrical
