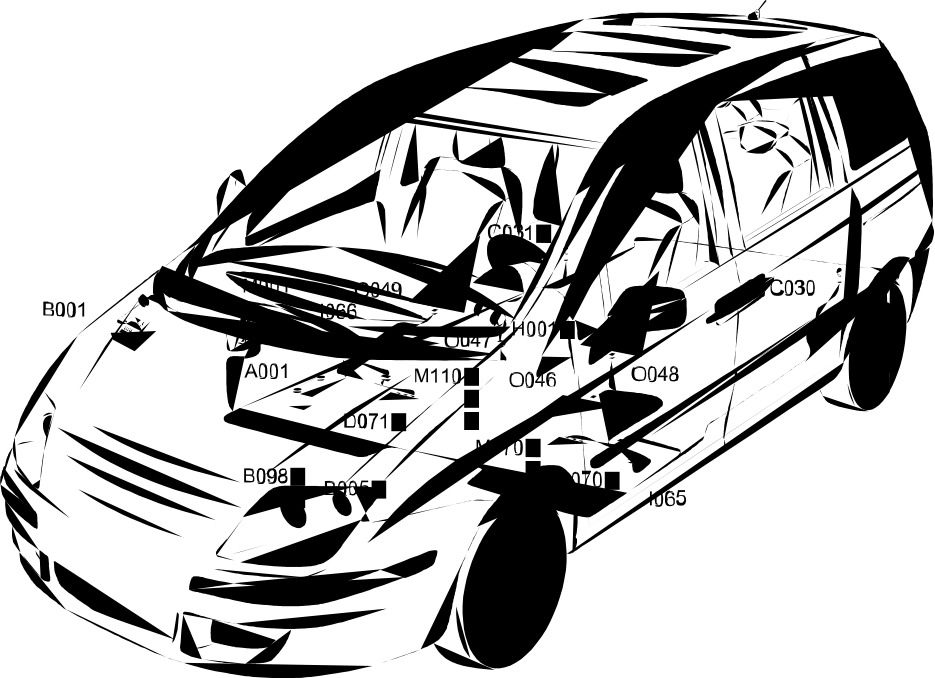

HEATED SEATS LOCATION COMPONENTS
Location Components
Components
| Component code | Description | Reference to the assembly |
|---|---|---|
| B005 | MAXI FUSE box | |
| B098 | Additional fuse box | |
| C030 | Left rear earth | |
| C031 | Right rear earth | |
| D070 | Driver''s seat coupling | |
| D071 | Passenger seat coupling | |
| I065 | Driver''s heated seat switch | |
| I066 | Passenger heated seat switch | 7045M |
| M001 | Body computer | 5505A |
| M110 | Front passenger seat heater control unit | |
| M170 | Driver''s front seat heater control unit | |
| O046 | Left front seat heater pad with sensor | |
| O047 | Right front seat heater pad with sensor | |
| O048 | Left front backrest heater pad | |
| O049 | Right front backrest heater pad |
