Sun roof wiring diagram

Make

Fiat

Model

Ulysse Factory Service Manual

Year

2002–2010

Section

Electrically activated devices › Sun roof wiring diagram

Wiring diagrams and electrical functionsSun roof wiring diagram

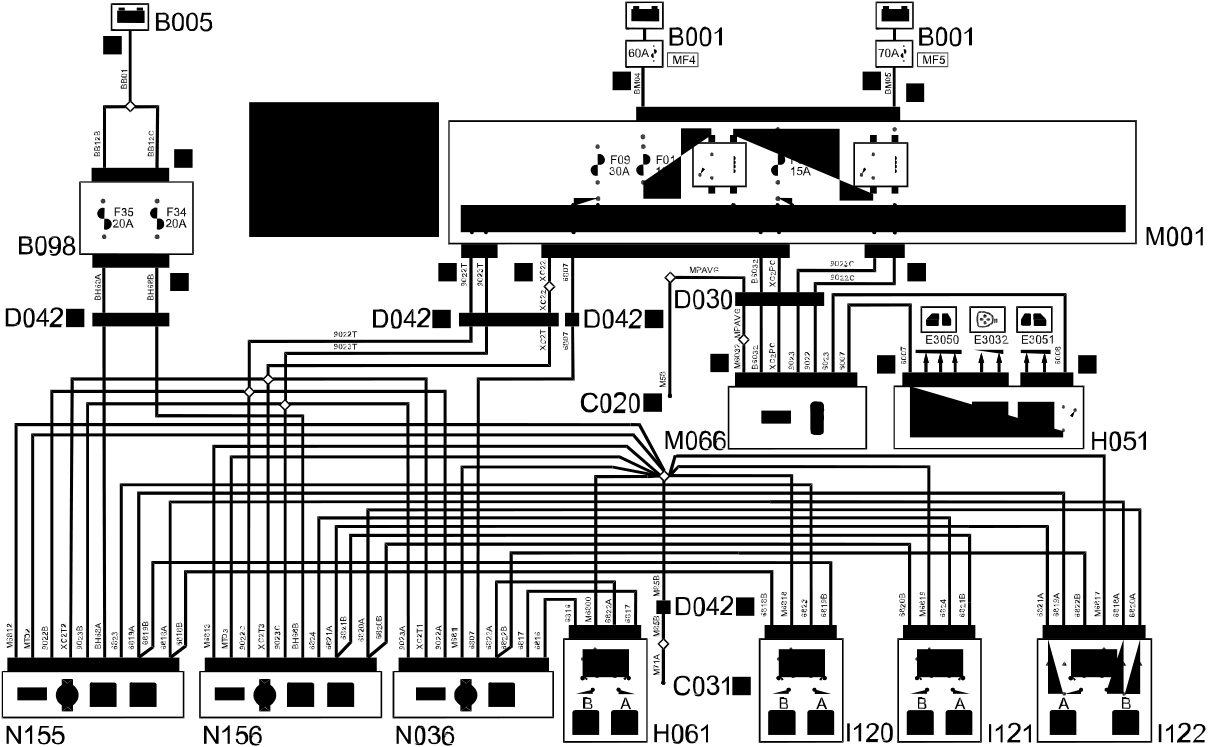

SUN ROOF WIRING DIAGRAM

Wiring Diagram

Components

Component code	Description	Reference to the assembly
B005	MAXI FUSE box
B098	Additional fuse box
C020	Passenger dashboard earth
C031	Right rear earth
D030	Left front door coupling
D042	Courtesy light coupling
H051	Electric window and rear view mirror controls on driver''s front door	7005M
H061	Front sun roof switch	7030B
I120	Centre sun roof switch
I121	Rear sun roof switch
I122	Centre and rear sun roof switch	7030B
M001	Body computer	5505A
M066	Driver''s door control unit (NPG)	5505A
N036	Front sun roof motor	5005A
N155	Centre sun roof motor	7030B
N156	Rear sun roof motor	7030B

2.0 16V JTD, 2.2 16V JTD · MY 2005

Components

Component code	Description	Reference to the assembly
B001	ENGINE COMPARTMENT JUNCTION UNIT	Op. 5505A MULTI-FUNCTION COMPONENTS
B005	MAXI FUSE BOX
B098	ADDITIONAL FUSE BOX
C020	PASSENGER SIDE DASHBOARD EARTH
C031	RIGHT REAR EARTH
D030	DRIVER''S FRONT DOOR COUPLING
D042	COURTESY LIGHT COUPLING
H051	ELECTRIC WINDOW AND REAR VIEW MIRROR CONTROLS ON DRIVER''S FRONT DOOR	Op. 7005M FRONT ELECTRIC WINDOWS
H061	FRONT SUN ROOF SWITCH	Op. 7030B SLIDING ROOF
I120	CENTRE SUN ROOF SWITCH
I121	REAR SUN ROOF SWITCH
I122	CENTRE AND REAR SUN ROOF SWITCH	Op. 7030B SLIDING ROOF
M001	BODY COMPUTER	Op. 5,505A multi-function components
M066	DRIVER''S DOOR CONTROL UNIT (NPG)	Op. 5505A MULTIFUNCTION COMPONENTS
N036	FRONT SUN ROOF MOTOR	Op. 7030B SLIDING ROOF
N155	CENTRE SUN ROOF MOTOR	Op. 7030B SLIDING ROOF
N156	REAR SUN ROOF MOTOR	Op. 7030B SLIDING ROOF

19 Electrical
