Heated seats wiring diagram

Make

Fiat

Model

Ulysse Factory Service Manual

Year

2002–2010

Section

Electrically activated devices › Heated seats wiring diagram

Wiring diagrams and electrical functionsHeated seats wiring diagram

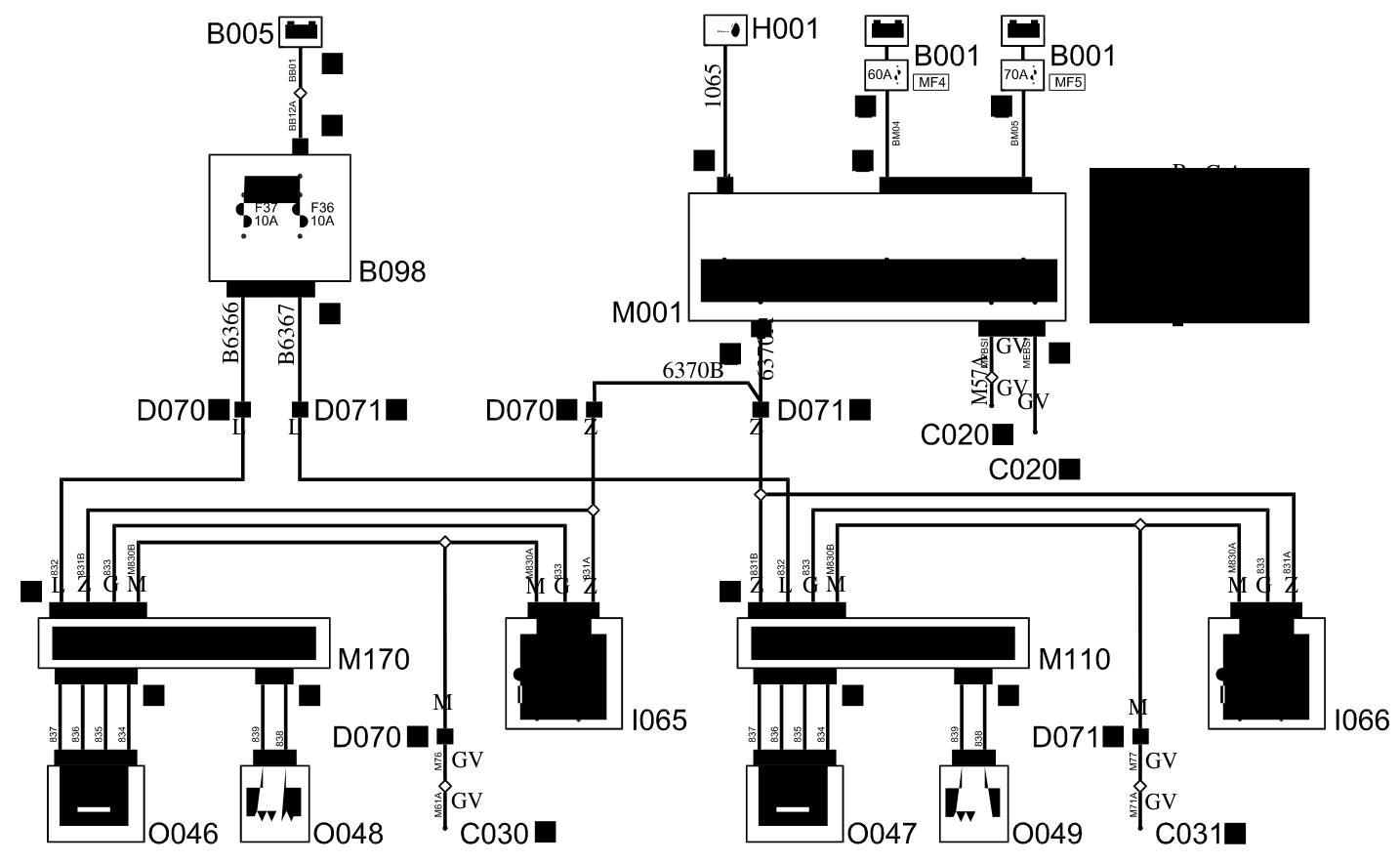

HEATED SEATS WIRING DIAGRAM

Wiring Diagram

Components

Component code	Description	Reference to the assembly
B005	MAXI FUSE box
B098	Additional fuse box
C030	Left rear earth
C031	Right rear earth
D070	Driver''s seat coupling
D071	Passenger seat coupling
I065	Driver''s heated seat switch
I066	Passenger heated seat switch	7045M
M001	Body computer	5505A
M110	Front passenger seat heater control unit
M170	Driver''s front seat heater control unit
O046	Left front seat heater pad with sensor
O047	Right front seat heater pad with sensor
O048	Left front backrest heater pad
O049	Right front backrest heater pad

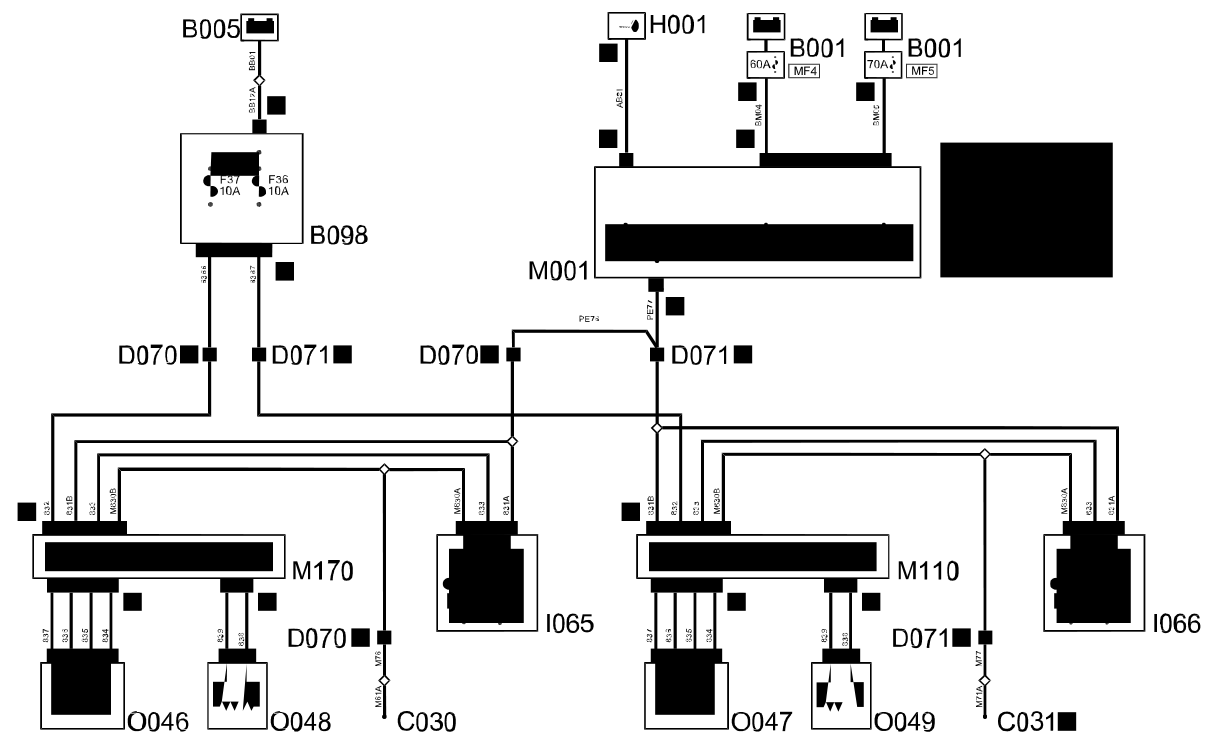

2.0 16V JTD, 2.2 16V JTD · MY 2005

Components

Component code	Description	Reference to the assembly
B001	ENGINE COMPARTMENT JUNCTION UNIT	Op. 5505A MULTI-FUNCTION COMPONENTS
B005	MAXI FUSE BOX
B098	ADDITIONAL FUSE BOX
C020	PASSENGER SIDE DASHBOARD EARTH
C030	LEFT REAR EARTH
C031	RIGHT REAR EARTH
D070	DRIVER''S SEAT COUPLING
D071	PASSENGER SEAT COUPLING
H001	Ignition switch	Op. 5520A IGNITION SWITCH
I065	DRIVER''S SEAT HEATING SWITCH	Op. 7045M FRONT SEAT HEATING
I066	PASSENGER SEAT HEATING SWITCH	Op. 7045M FRONT SEAT HEATING
M001	BODY COMPUTER	Op. 5505A MULTI-FUNCTION COMPONENTS
M110	FRONT PASSENGER SEAT HEATER CONTROL UNIT
M170	DRIVER''S FRONT SEAT HEATER CONTROL UNIT
O046	LEFT FRONT SEAT HEATER PAD WITH SENSOR
O047	RIGHT FRONT SEAT HEATER PAD WITH SENSOR
O048	LEFT FRONT BACKREST HEATER PAD
O049	RIGHT FRONT BACKREST HEATER PAD
