Central locking wiring diagram

Make

Fiat

Model

Ulysse Factory Service Manual

Year

2002–2010

Section

Electrically activated devices › Central locking wiring diagram

Wiring diagrams and electrical functionsCentral locking wiring diagram

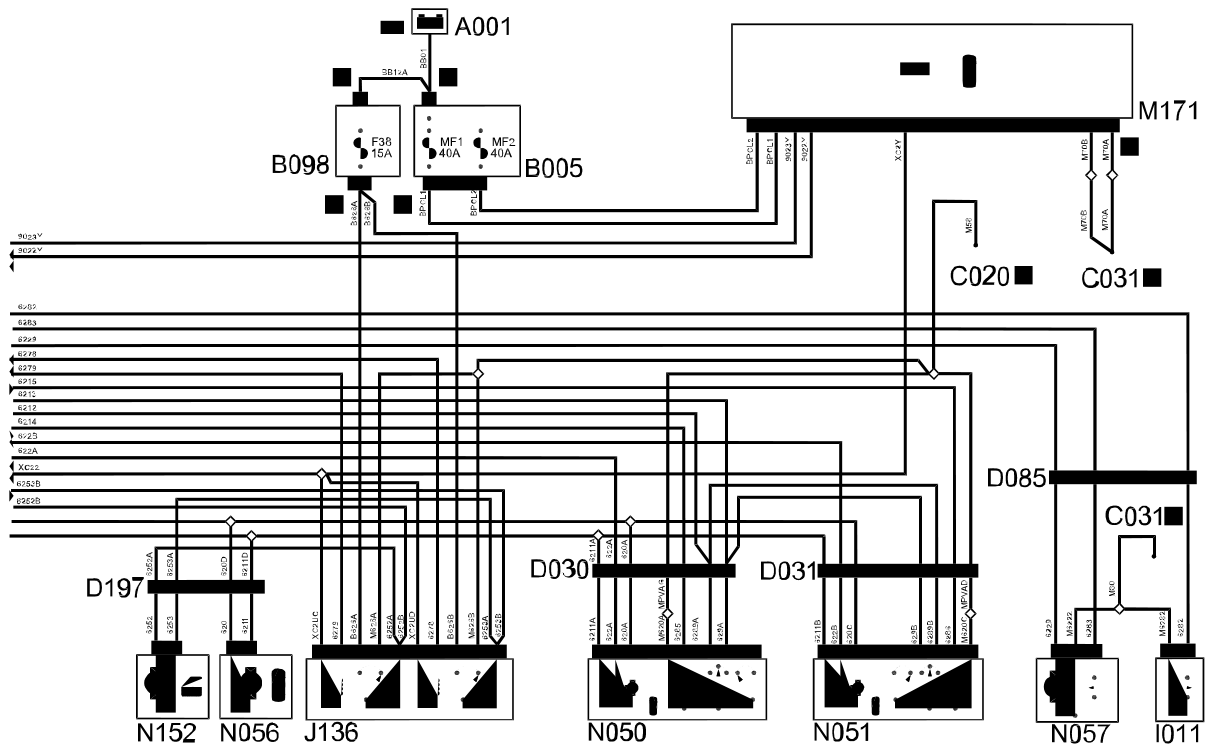

CENTRAL LOCKING WIRING DIAGRAM

Wiring Diagram

Components

Component code	Description	Reference to the assembly
B005	MAXI FUSE box
B098	Additional fuse box
C015	Driver''s dashboard earth
C020	Passenger dashboard earth
C030	Left rear earth
C031	Right rear earth
D020	Dashboard/rear coupling
D030	Left front door coupling
D031	Right front door coupling
D042	Courtesy light coupling
D085	Rear/tailgate coupling
D196	Left sliding door coupling	5505A
D197	Right sliding door coupling	5505A
I011	Boot release switch	7015B
I018	Switch on left rear door
I019	Switch on right rear door
I110	Door closing switch
J136	Child lock relay
M001	Body computer	5505A
M093	Steering wheel node control unit (NVO)	5550A
M171	Sliding side door node	5505A
N050	Left front door lock geared motor	7005N
N051	Right front door lock geared motor	7005N
N055	Left rear door lock geared motor	7020N
N056	Right rear door lock geared motor	7020N
N057	Boot lock geared motor
N151	Left rear door child lock motor
N152	Right rear door child lock motor
N166	Left sliding side door lock geared motor	7020N
N167	Right sliding side door lock geared motor	7020N

Wiring Diagram

Components

Component code	Description	Reference to the assembly
B005	MAXI FUSE box
B098	Additional fuse box
C015	Driver''s dashboard earth
C020	Passenger dashboard earth
C030	Left rear earth
C031	Right rear earth
D020	Dashboard/rear coupling
D030	Left front door coupling
D031	Right front door coupling
D042	Courtesy light coupling
D085	Rear/tailgate coupling
D196	Left sliding door coupling	5505A
D197	Right sliding door coupling	5505A
I011	Boot release switch	7015B
I018	Switch on left rear door
I019	Switch on right rear door
I110	Door closing switch
J136	Child lock relay
M001	Body computer	5505A
M093	Steering wheel node control unit (NVO)	5550A
M171	Sliding side door node	5505A
N050	Left front door lock geared motor	7005N
N051	Right front door lock geared motor	7005N
N055	Left rear door lock geared motor	7020N
N056	Right rear door lock geared motor	7020N
N057	Boot lock geared motor
N151	Left rear door child lock motor
N152	Right rear door child lock motor
N166	Left sliding side door lock geared motor	7020N
N167	Right sliding side door lock geared motor	7020N

2.0 16V JTD, 2.2 16V JTD · MY 2005

Components

Component code	Description	Reference to the assembly
B001	ENGINE COMPARTMENT JUNCTION UNIT	Op. 5505A MULTI-FUNCTION COMPONENTS
C015	DRIVER''S DASHBOARD EARTH
C020	PASSENGER SIDE DASHBOARD EARTH
C030	LEFT REAR EARTH
C031	RIGHT REAR EARTH
D020	DASHBOARD/REAR COUPLING
D030	DRIVER''S FRONT DOOR COUPLING
D031	PASSENGER FRONT DOOR COUPLING
D042	COURTESY LIGHT COUPLING
D085	REAR/TAILGATE COUPLING
D196	LEFT SLIDING DOOR COUPLING	Op. 5505A MULTI-FUNCTION COMPONENTS
D197	RIGHT SLIDING DOOR COUPLING	Op. 5505A MULTI-FUNCTION COMPONENTS
H001	Ignition switch	Op. 5520A IGNITION SWITCH
I011	BOOT RELEASE SWITCH	Op. 7015B TAILGATE CLOSING/OPENING DEVICES
I018	SWITCH ON LEFT REAR DOOR
I019	SWITCH ON RIGHT REAR DOOR
I110	DOOR CLOSING SWITCH
M001	BODY COMPUTER	Op. 5505A MULTI-FUNCTION COMPONENTS
M093	STEERING WHEEL NODE CONTROL UNIT (NVO)	Op. 5550A STALK UNIT
N050	LEFT FRONT DOOR LOCK GEARED MOTOR	Op. 7005N FRONT DOOR CENTRAL LOCKING SYSTEM
N051	RIGHT FRONT DOOR LOCK GEARED MOTOR	Op. 7005N FRONT DOOR CENTRAL LOCKING SYSTEM
N055	LEFT REAR DOOR LOCK GEARED MOTOR	Op. 7020N SLIDING SIDE DOOR CENTRAL LOCKING
N056	RIGHT REAR DOOR LOCK GEARED MOTOR	Op. 7020N SLIDING SIDE DOOR CENTRAL LOCKING
N057	BOOT LOCK GEARED MOTOR

19 Electrical
