Condenser refit

CONDENSER Refit

Service repair no - 82.15.07 13. Fit NEW ’O’ rings to each union, lubricate with

Remove

14. Add 40 ml, 1 fl oz of refrigerant oil to new
1. Disconnect battery negative lead.
2. Recover refrigerant from system. See 15. Position condenser and engage pipes. Adjustment, refrigerant recovery recycling 16. Secure brackets to top panel. recharging 17. Secure lower brackets to condenser.
3. Remove condenser fan. See condenser fan 18. Using a backing spanner, tighten union nuts
19. Fit condenser fan.

20. Recharge refrigerant system.
21. Reconnect battery negative lead.
22. Leak test disturbed joints.
23. Carry out system test.

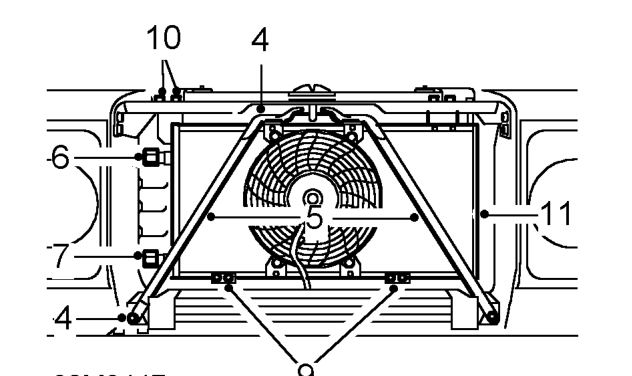

4. Remove 4 bolts securing cross-braces to top panel and chassis brackets.
5. Remove 2 cross-braces.
6. Using a backing spanner, loosen union nut securing inlet pipe to condenser and disconnect.
7. Using a backing spanner, loosen union nut securing outlet pipe to condenser and disconnect.
8. Remove and discard ’O’ ring from each union.

CAUTION: Plug the connections.

• WARNING: Wear eye and hand protection
• when disconnecting components
• containing refrigerant.

9. Remove 4 screws securing lower brackets to condenser.
10. Remove 4 bolts securing brackets to top panel.
11. Release pipes and remove condenser assembly. Do not carry out further dismantling if component is removed for access only.
12. Transfer brackets to new condenser.

refrigerant oil. New condenser, add 40 ml, 1 fl oz refrigerant oil.

condenser.

securing pipes to condenser. See condenser fan See Adjustment, refrigerant recovery recycling recharging

• See Adjustment,
• leak test system
• See Adjustment,
• System test
