Workshop Manuals Factory service & repair Land Rover
Land Rover Defender 90 Workshop Manual (NAS)24 · Air conditioning
24 · Heating & A/C

Relay - evaporator blower fascia duct bezel

Make
Land Rover
Model
Defender 90 Workshop Manual (NAS)
Section
Repair › Relay - evaporator blower fascia duct bezel
Air conditioningRelay - evaporator blower fascia duct bezel

RELAY - EVAPORATOR BLOWER FASCIA DUCT BEZEL

Service repair no - 82.20.27 Service repair no - 82.20.79

Remove Remove

  1. Disconnect multiplug from relay.

NOTE: Connector wiring: B, G, N, S/P

  1. Release securing screw and remove relay from side of evaporator casing.

Refit

  1. Fit screw and secure relay to side of casing.
  2. Connect multiplug to relay.
  3. Carry out system test. See Adjustment, System test

RELAY - COMPRESSOR

Service repair no - 82.20.51

Remove

  1. Disconnect multiplug from relay.

NOTE: Connector wiring: G, B/W, N/R, N/W

  1. Release securing screw and remove relay from side of evaporator casing.

Refit

  1. Fit screw and securing relay to side of casing.
  2. Connect multiplug to relay.
  3. Carry out system test. See Adjustment, System test
Note: connector wiring: g, b/w, n/r, n/w – Carry out system test. See Adjustment, System test

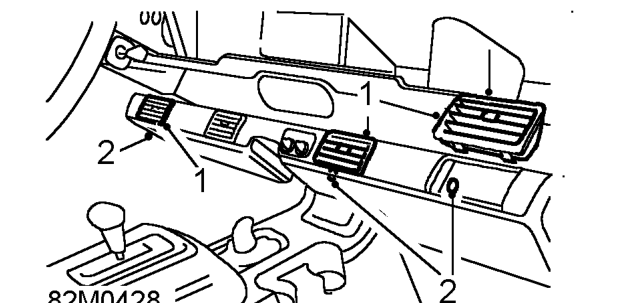

  1. Lever under each bottom corner and remove cold air vents from bezel.
  2. Remove screw securing underside of bezel to panel.
  3. Remove 3 screws securing inside of bezel to panel.
Note: connector wiring: g, b/w, n/r, n/w – Remove 3 screws securing inside of bezel to panel.
  1. Lift bezel away from evaporator casing.
  2. Withdraw capillary tube from evaporator fins.
  3. Disconnect multiplug from fan interlock relay.
  4. Remove 2 screws securing cover to rear of bezel.
