Relay - condenser fan

RELAY - CONDENSER FAN

Service repair no - 82.20.09

Remove

Refit

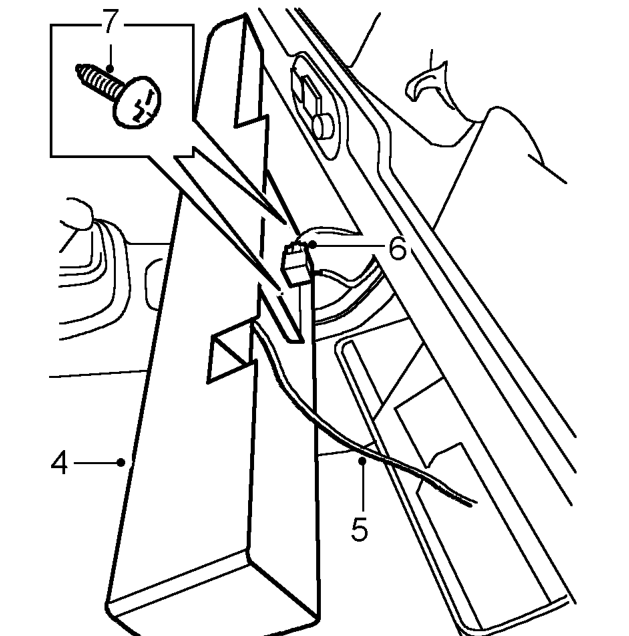

4. Lift bezel away from evaporator casing
5. Withdraw capillary tube from evaporator fins.
6. Disconnect multiplug from fan interlock relay.
7. Remove securing screw and remove relay from rear of bezel.

Refit

8. Fit screw and secure relay to rear of bezel.
9. Connect multiplug to fan interlock relay.
10. Position bezel assembly and insert capillary tube 60 mm, 2.5 in into evaporator fins.
11. Fit bezel assembly to panel and above evaporator casing, secure with screws.
12. Fit cold air vents.
13. Carry out system test. See Adjustment, System test
1. Disconnect multiplug from relay.

NOTE: Connector wiring: B/S, N/P, N/S, N/W

2. Release securing screw and remove relay from side of evaporator casing.
3. Fit screw and secure relay to side of casing.
4. Connect multiplug to relay.
5. Carry out system test. See Adjustment, System test
