Receiver drier refit

RECEIVER DRIER Refit

Service repair no - 82.17.01 10. Fit NEW ’O’ ring to each pipe flange, lubricate

Remove 11. Add 20ml, 0.7 fl oz of refrigerant oil to NEW

CAUTION: If receiver drier is to be refitted, 12. Position receiver drier in clip, tighten clip but do the ports must be blanked off immediately on disconnection. Exposed life of unit is 13. Engage pipes and tighten unions to

15 minutes.

14. Fit trinary switch to receiver drier and tighten to
1. Disconnect battery negative lead.
2. Recover refrigerant from system. See 15. Connect multiplug to trinary switch. Adjustment, refrigerant recovery recycling 16. Tighten receiver drier clamp. recharging 17. Evacuate and recharge air conditioning system.

WARNING: Wear eye and hand protection

when disconnecting components 18. Perform a leak test on disturbed joints. containing refrigerant. 19. Carry out system test.

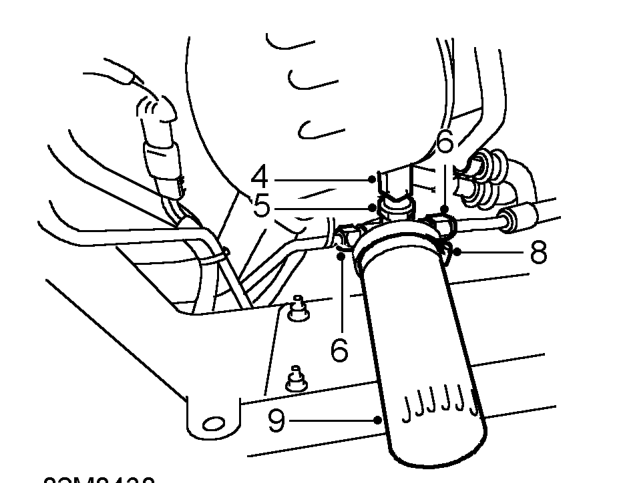

3. Clean area around receiver drier connections.
4. Disconnect multiplug from trinary switch.
5. Remove trinary switch from receiver drier.

CAUTION: Plug the connections.

6. Disconnect 2 pipe unions from receiver drier.
7. Remove and discard ’O’ rings from pipe flanges.
8. Fully loosen clip securing receiver drier to bracket.
9. Remove receiver drier from clip.

with refrigerant oil.

receiver drier.

not clamp. 6 Nm, 4.5 lbf ft .

11Nm, 8 lbf ft.

See Adjustment, refrigerant recovery recycling recharging

See Adjustment, System test
