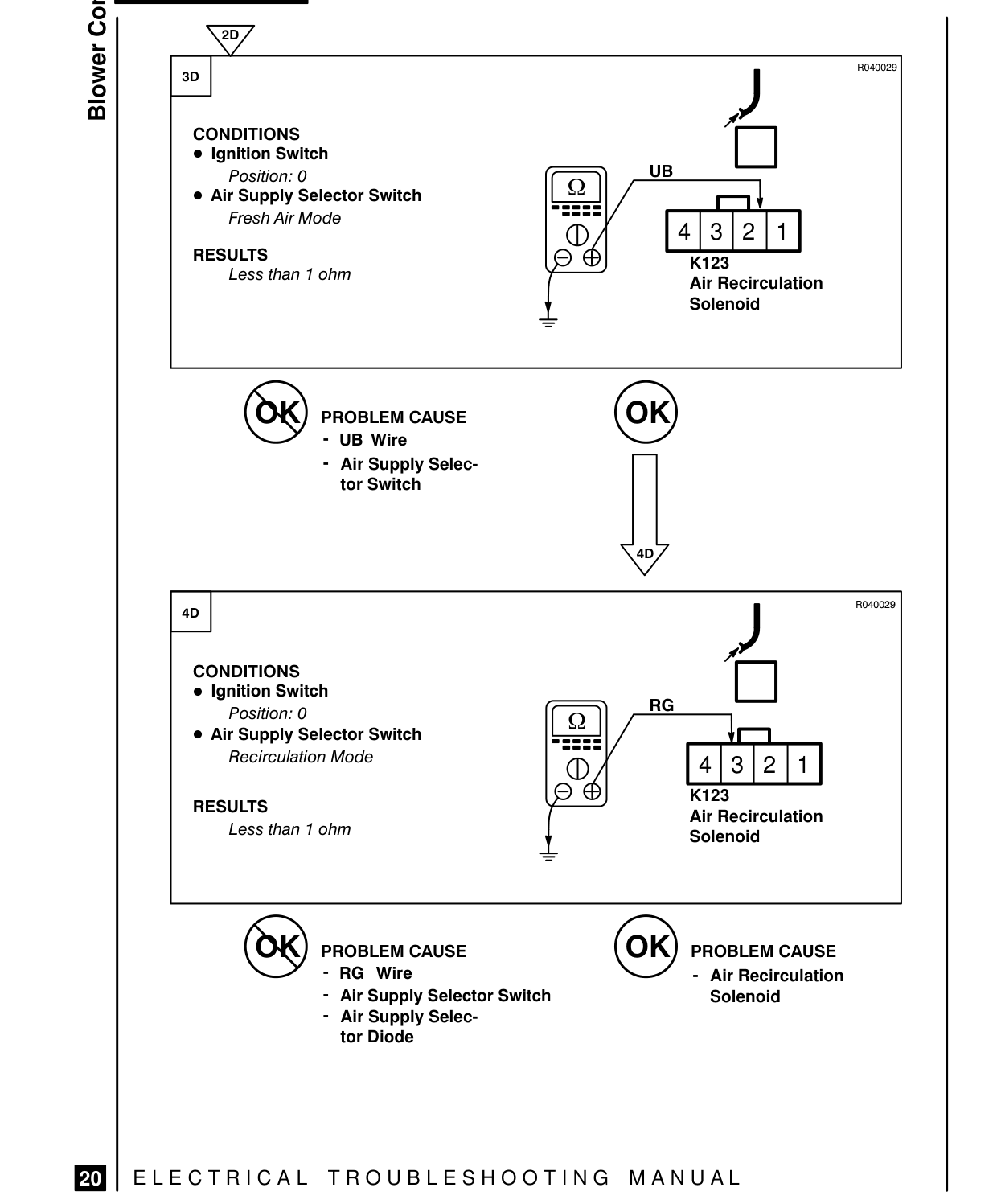

BLOWER CONTROLS – FAULT DIAGNOSIS
Se
CONDITIONS ® Ignition Switch Position: 0 ® Air Supply Selector Switch Fresh Air Mode
RESULTS Less than 1 ohm
(59) PROBLEM CAUSE - UB Wire
Air Supply Selector Switch
oo | CONDITIONS ® Ignition Switch Position: 0 ® Air Supply Selector Switch Recirculation Mode RESULTS Less than 1 ohm
(59) PROBLEM CAUSE - RG Wire Air Supply Selector Switch Air Supply Selector Diode
ELECTRICAL TROUBLESHOOTING MANUAL
R040029
us
LL mee
K123 Air Recirculation Solenoid
R040029
RG
QD K123 Air Recirculation Solenoid
PROBLEM CAUSE Air Recirculation Solenoid
