BLOWER CONTROLS – FAULT DIAGNOSIS

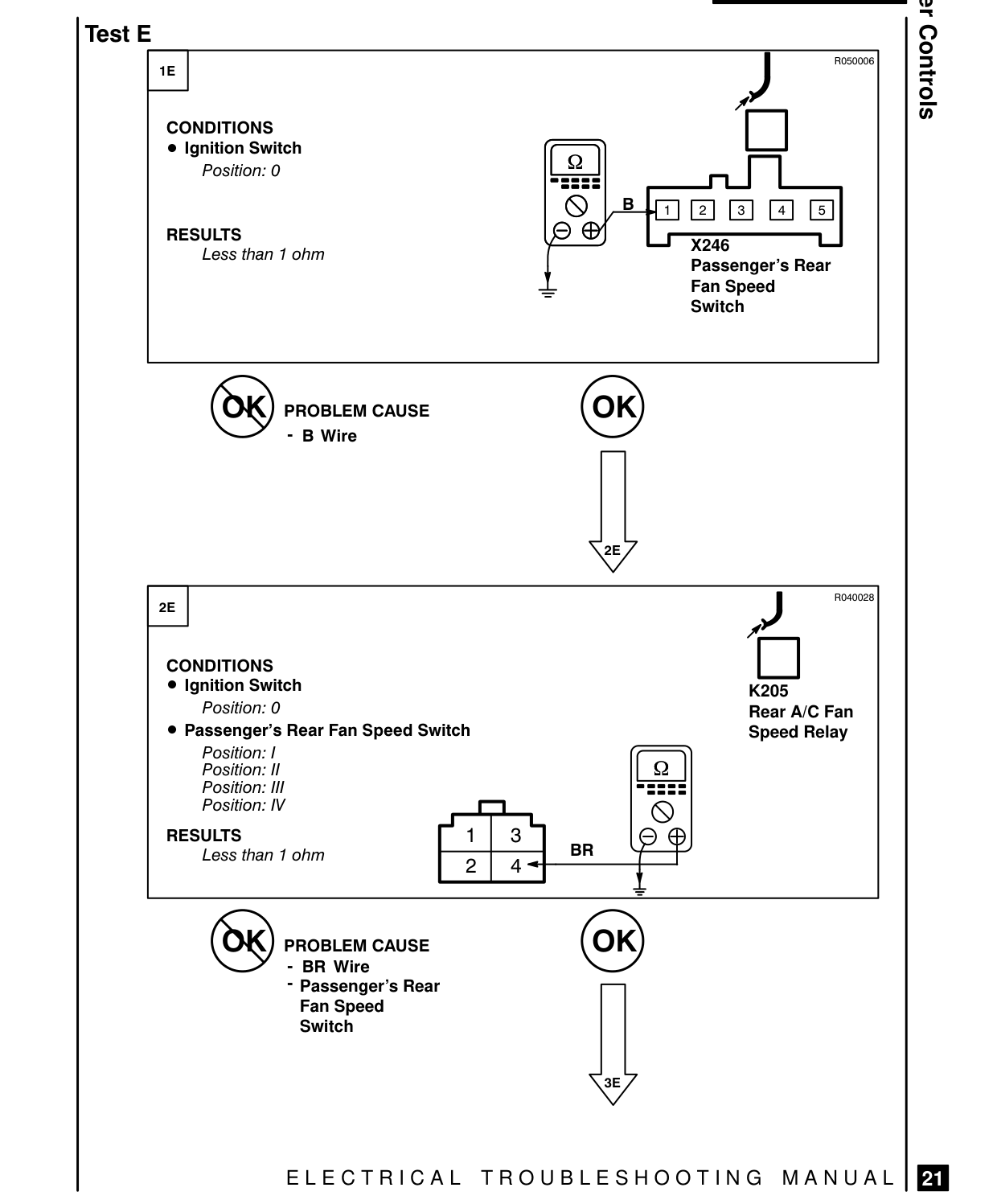

Test E

CONDITIONS ® Ignition Switch Position: 0

RESULTS Less than 1 ohm

(5) PROBLEM CAUSE - B Wire

CONDITIONS ® Ignition Switch Position: 0 ® Passenger’s Rear Fan Speed Switch Position: II Position:

Position: Ill Position: IV RESULTS Less than 1 ohm

(59) PROBLEM CAUSE - BR Wire - Passenger’s Rear Fan Speed Switch

ELECTRICAL TROUBLESHOOTING MANUAL | El

R050006 3 o

LS |

X246 Passenger’s Rear Fan Speed Switch

R040028

K205 Rear A/C Fan Speed Relay

BR
