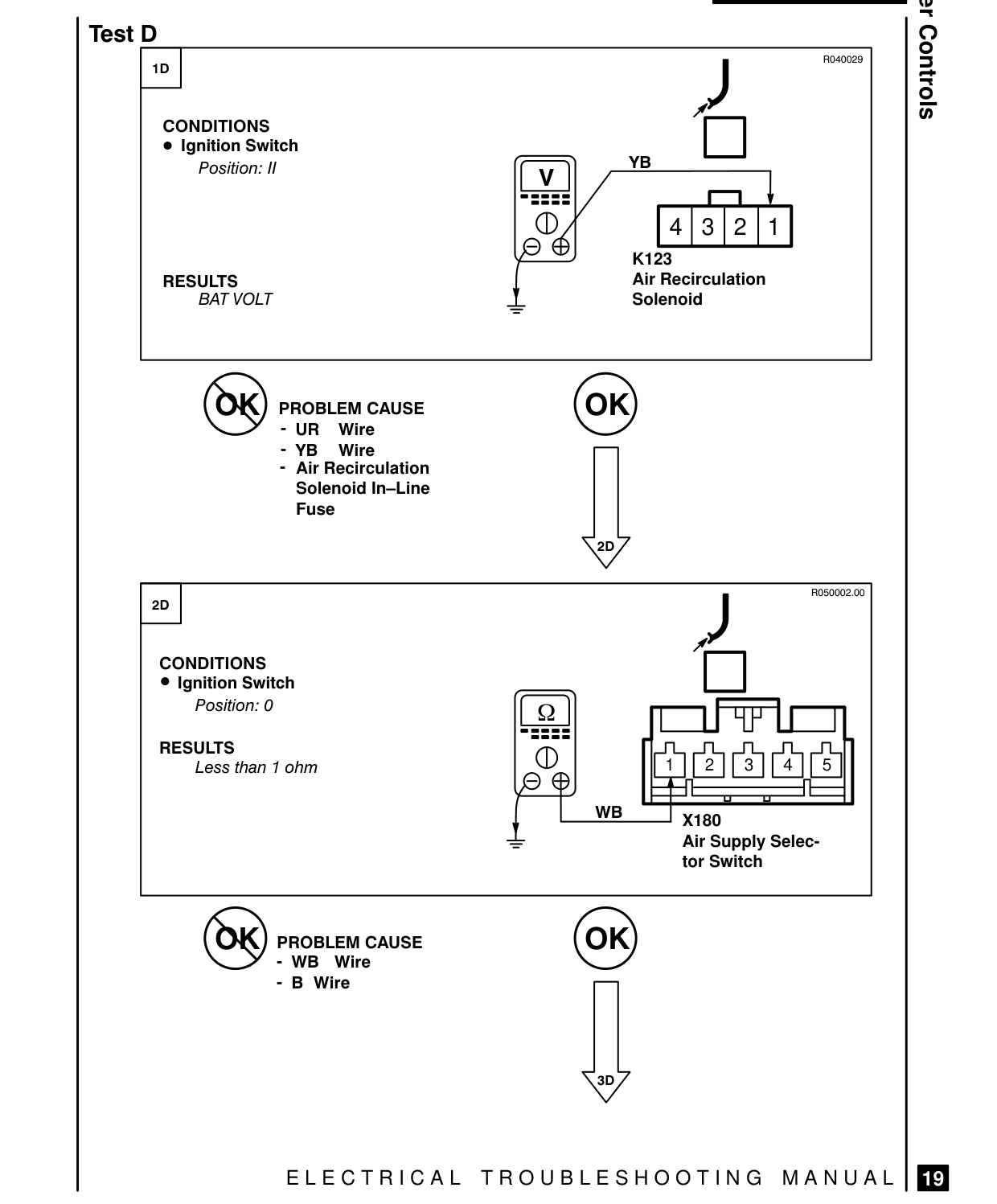

BLOWER CONTROLS – FAULT DIAGNOSIS
Test D
® Ignition Switch CONDITIONS
Position: Il
RESULTS BAT VOLT
(59) PROBLEM CAUSE - UR Wire - YB Wire Air Recirculation Solenoid In-Line Fuse
CONDITIONS ® Ignition Switch Position: 0
Less than 1 ohm RESULTS
(5) PROBLEM CAUSE - WB Wire - B Wire
ELECTRICAL TROUBLESHOOTING MANUAL | [8
R040029
YB
SAS K123 Air Recirculation Solenoid
R050002.00
1] [2] [5] [4] [5]
WB X180 Air Supply Selector Switch
