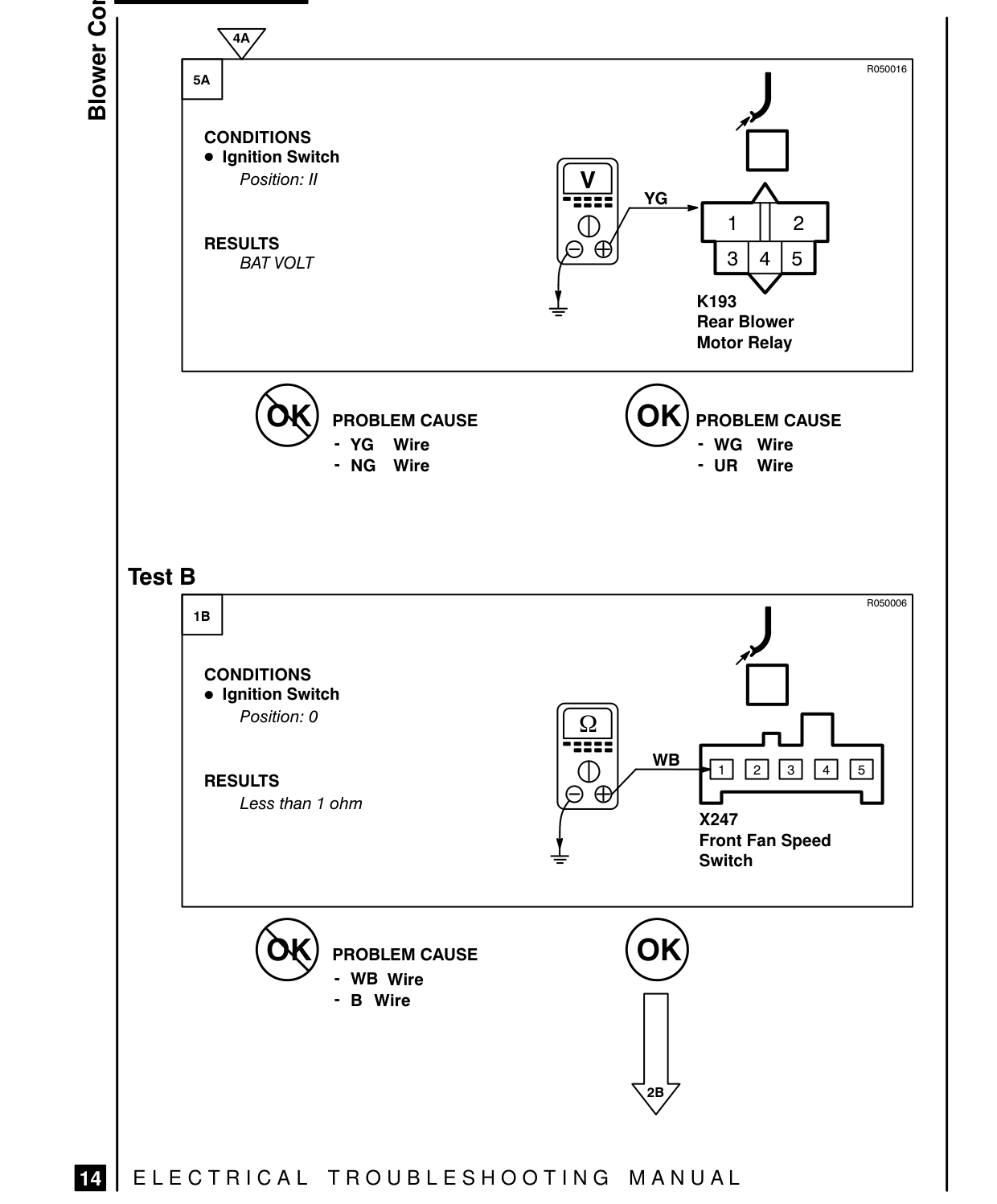

BLOWER CONTROLS – FAULT DIAGNOSIS

Cc 3S Sem

[a1] CONDITIONS ® |gnition Switch Position: Il

RESULTS BAT VOLT

(09) PROBLEM CAUSE - YG Wire - NG Wire

Test B 1s | 1B CONDITIONS ® Ignition Switch Position: 0

RESULTS Less than 1 ohm

(59) PROBLEM CAUSE - WB Wire Wire

BB} | ELECTRICAL TROUBLESHOOTING MANUAL

RO50016

YG ENIES SA

K193 Rear Blower Motor Relay

PROBLEM CAUSE - WG Wire - UR Wire

R050006

WB eae X247 Front Fan Speed Switch
