Blower controlsBlower controls – fault diagnosis

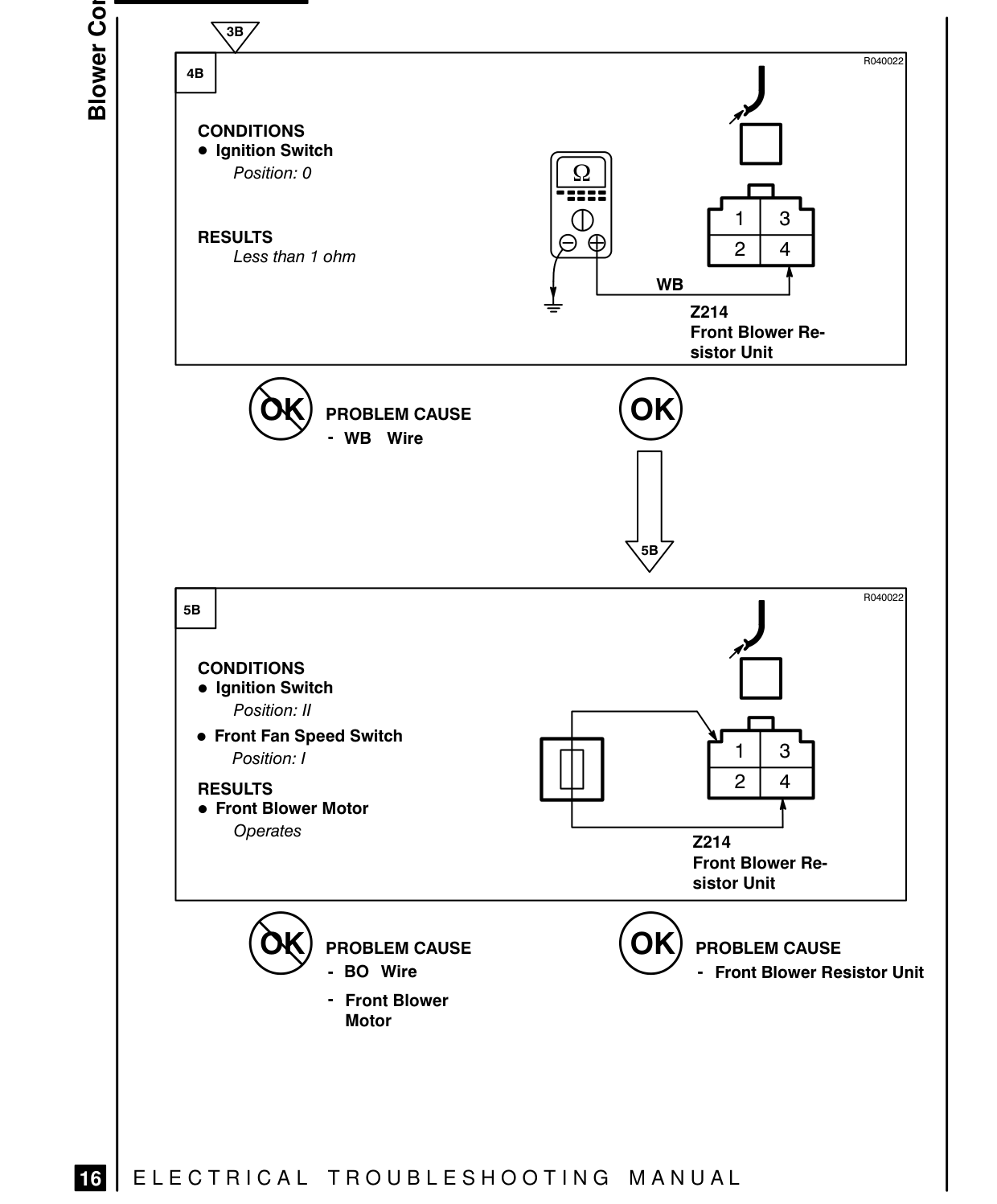

BLOWER CONTROLS – FAULT DIAGNOSIS
Cc
us | om CONDITIONS ® Ignition Switch Position: 0
RESULTS Less than 1 ohm
(59) PROBLEM CAUSE - WB Wire
EB
CONDITIONS ® Ignition Switch Position: Il
® Front Fan Speed Switch Position: | RESULTS eo Front Blower Motor Operates
(5) PROBLEM CAUSE - BO Wire
Front Blower Motor
EB | ELECTRICAL TROUBLESHOOTING MANUAL
R040022
| 2 4 | WB
Z214 Front Blower Resistor Unit
R040022
li} 7914 Front Blower Resistor Unit
PROBLEM CAUSE Front Blower Resistor Unit
