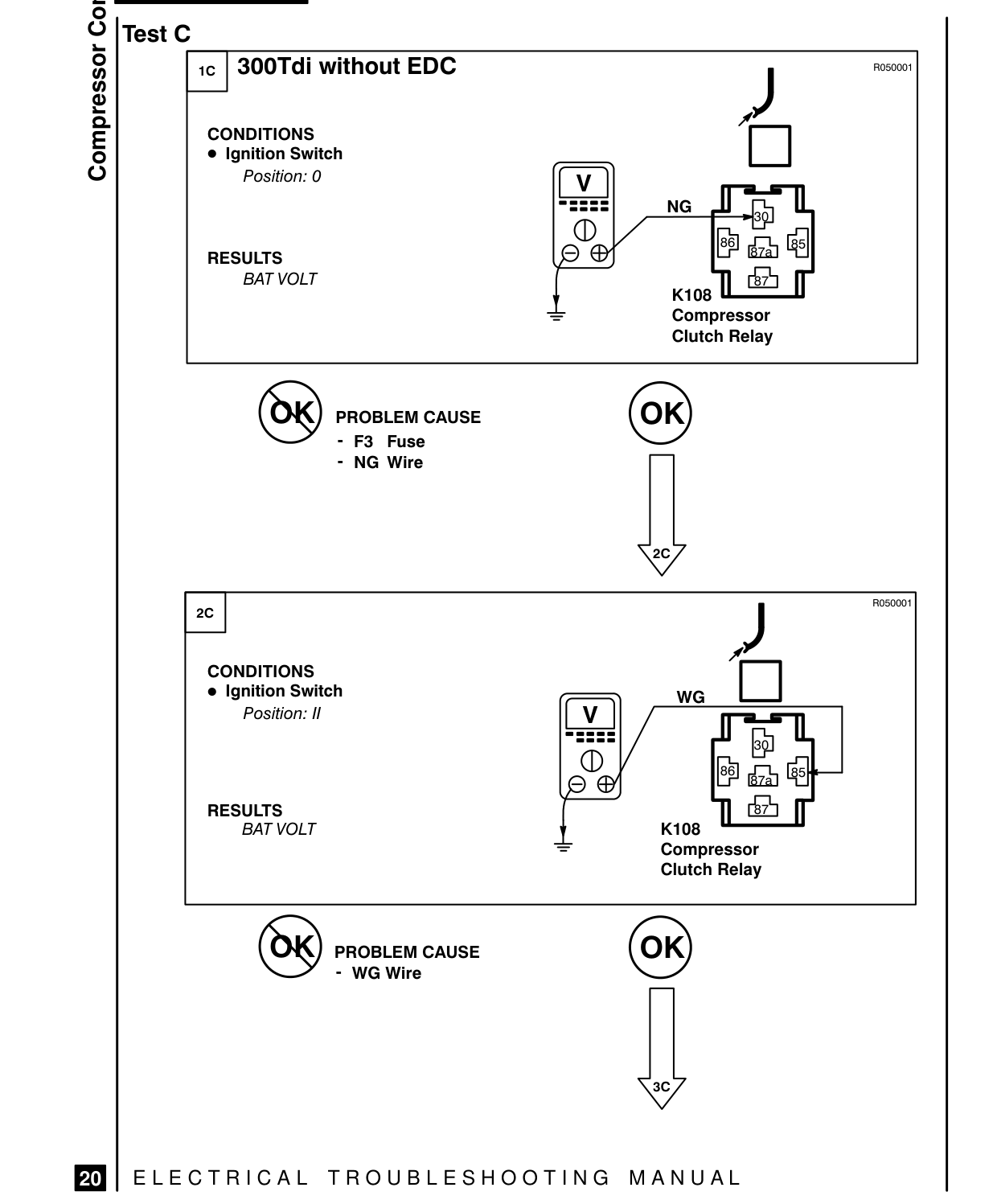

COMPRESSOR CONTROLS – FAULT DIAGNOSIS

Oo O|Test C 300Tdi without EDC

CONDITIONS oO ® Ignition Switch oO Position: 0

RESULTS BAT VOLT

(59) PROBLEM CAUSE F3 Fuse - NG Wire

® Ignition Switch CONDITIONS

Position: I

RESULTS BAT VOLT

(59) PROBLEM CAUSE - WG Wire

ELECTRICAL TROUBLESHOOTING MANUAL

Rosoo0

11-1 NG ag) xX fb oO @ 8) ih Gl 574 K108 Compressor Clutch Relay

R050001 WG []

AOR oh

K108 Compressor Clutch Relay
