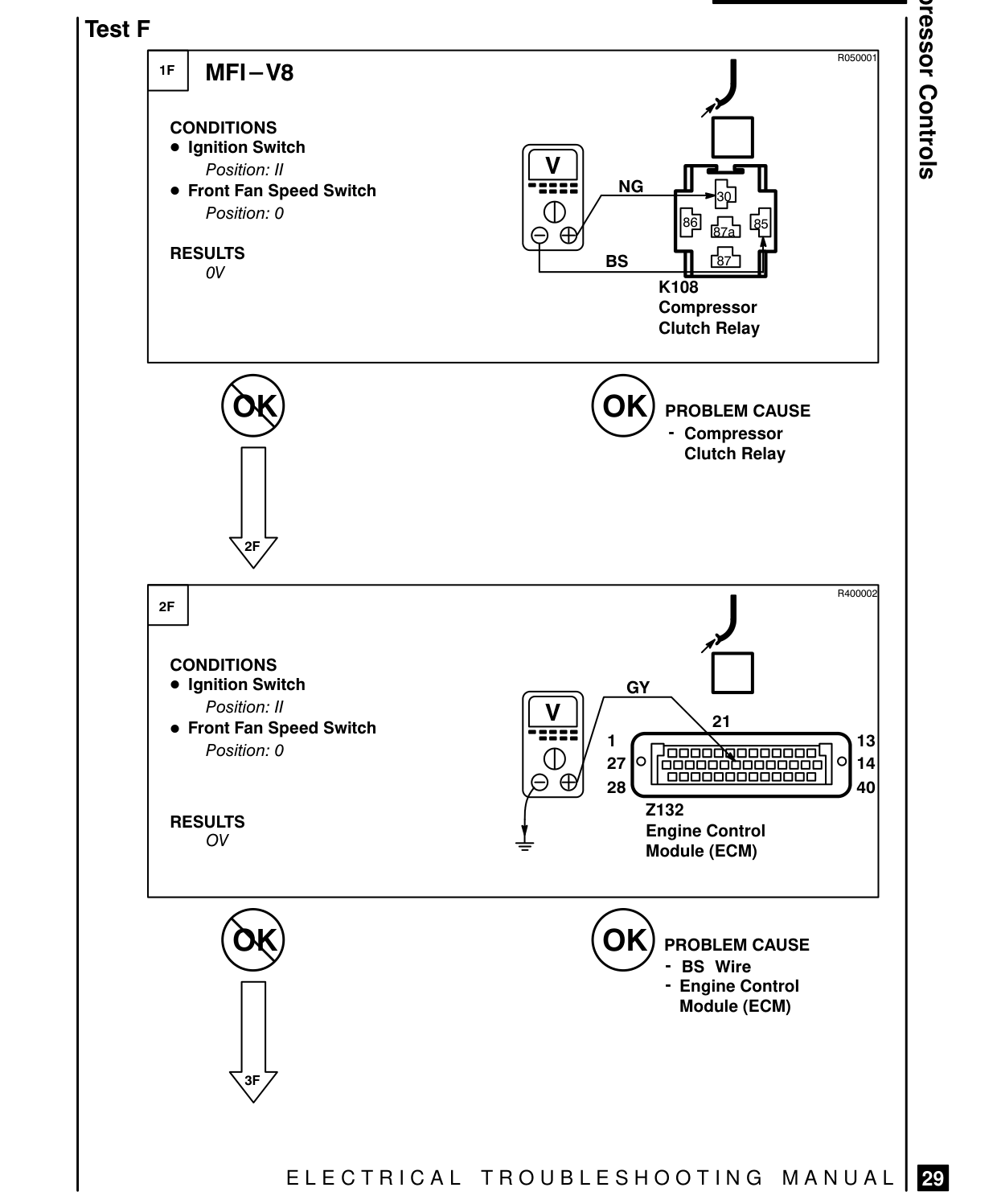

COMPRESSOR CONTROLS – FAULT DIAGNOSIS
Test F MFI-V8
CONDITIONS ® Ignition Switch Position: Il ® Front Fan Speed Switch Position: 0
ov RESULTS
(59)
BE CONDITIONS e Ignition Switch Position: Il ® Front Fan Speed Switch Position: 0
RESULTS
(59)
ELECTRICAL TROUBLESHOOTING MANUAL | EE]
R050001
NG ag]
| tb K108 Compressor Clutch Relay
PROBLEM CAUSE - Compressor Clutch Relay R400002)
GY
21 =zeee|/ 13 Df == iy
a8 0000000000000 40 2132 Engine Control Module (ECM)
PROBLEM CAUSE - BS Wire - Engine Control Module (ECM)
