Compressor controls – fault diagnosis
- Make
- Land Rover
- Model
- Discovery Electrical Troubleshooting Manual
- Year
- 1995
- Section
- Fault diagnosis › Compressor controls – fault diagnosis
Compressor controlsCompressor controls – fault diagnosis

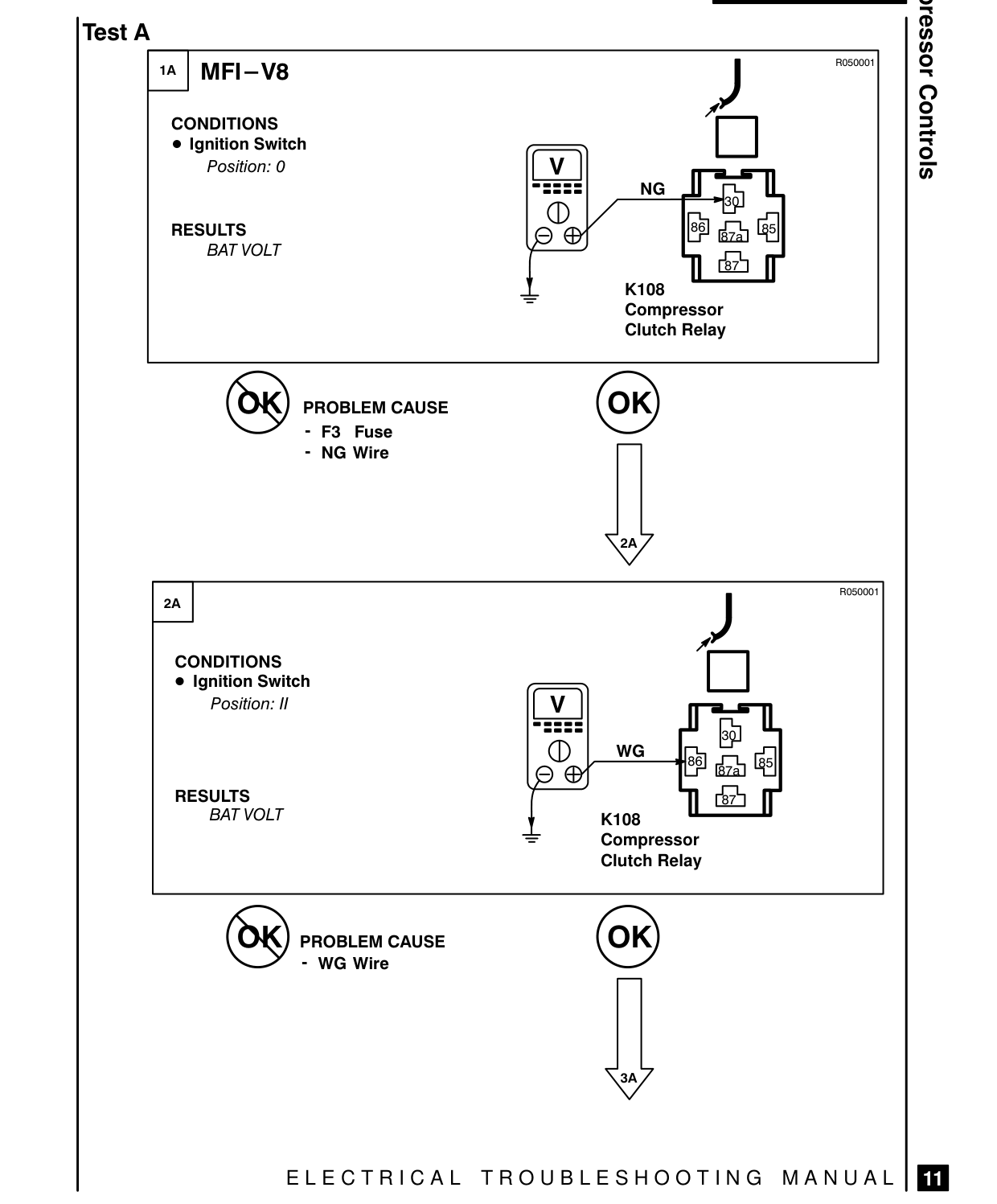

COMPRESSOR CONTROLS – FAULT DIAGNOSIS
Test A B MFEI-V8 ® Ignition Switch CONDITIONS
Position: 0
RESULTS BAT VOLT
(09) PROBLEM CAUSE F3 Fuse - NG Wire
e Ignition Switch CONDITIONS
Position: Il
RESULTS BAT VOLT
(59) PROBLEM CAUSE - WG Wire
ELECTRICAL TROUBLESHOOTING MANUAL | ki
RO50001
NG ah &
K108 Compressor Clutch Relay
R050001
WG +3 oh
K108 Compressor Clutch Relay
