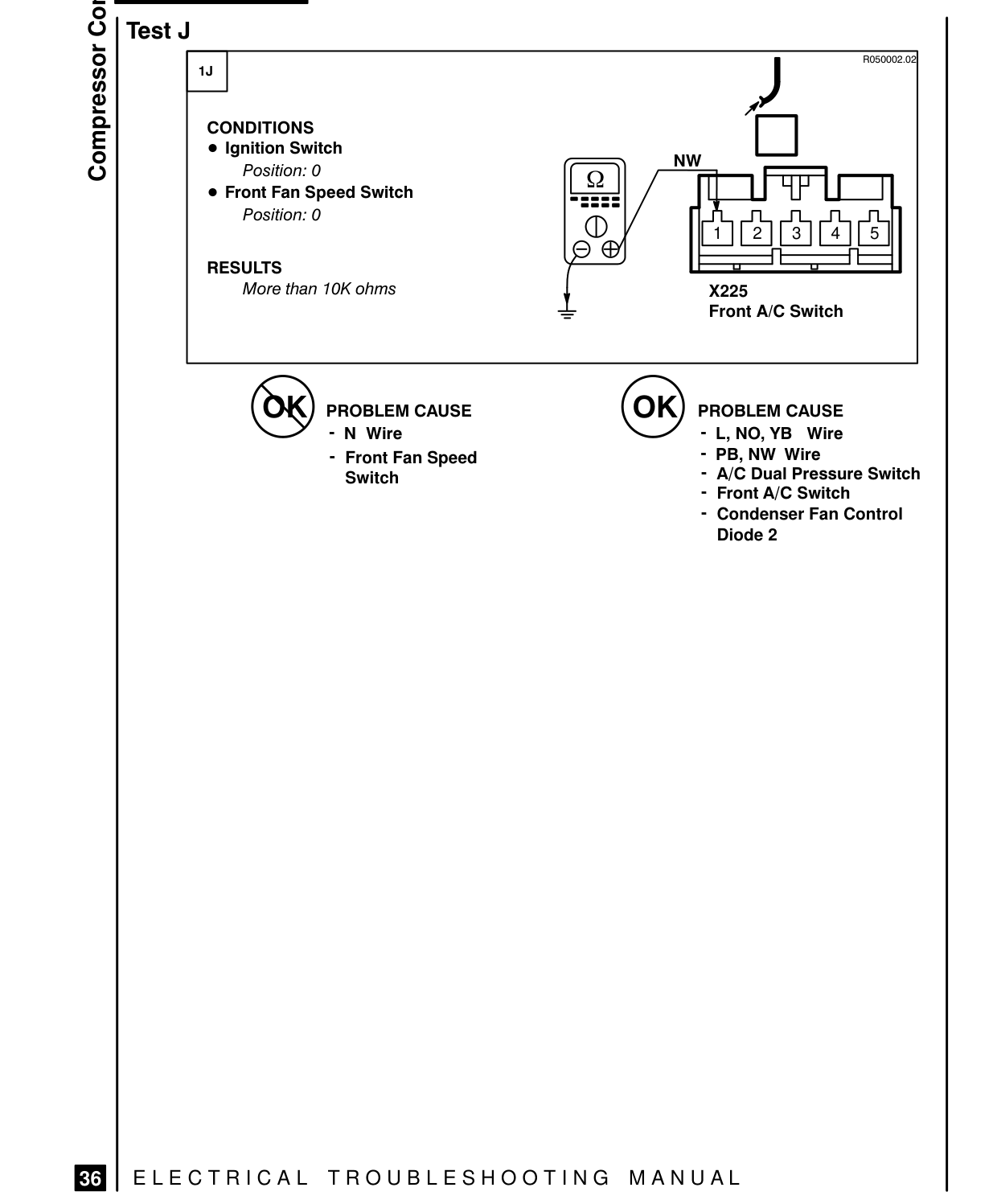

COMPRESSOR CONTROLS – FAULT DIAGNOSIS

O|TestdJ

CONDITIONS ® Ignition Switch Position: 0 ® Front Fan Speed Switch Position: 0 RESULTS More than 10K ohms

(59) PROBLEM CAUSE - N Wire - Front Fan Speed Switch

36 ELECTRICAL TROUBLESHOOTING MANUAL

R050002.02)

NW IN DO | 0 [2] [3] [4] =) SA el ge X225 Front A/C Switch

PROBLEM CAUSE - L,NO,YB Wire - PB, NW Wire - A/C Dual Pressure Switch - Front A/C Switch - Condenser Fan Control Diode 2
