Compressor controlsCompressor controls – fault diagnosis
COMPRESSOR CONTROLS – FAULT DIAGNOSIS

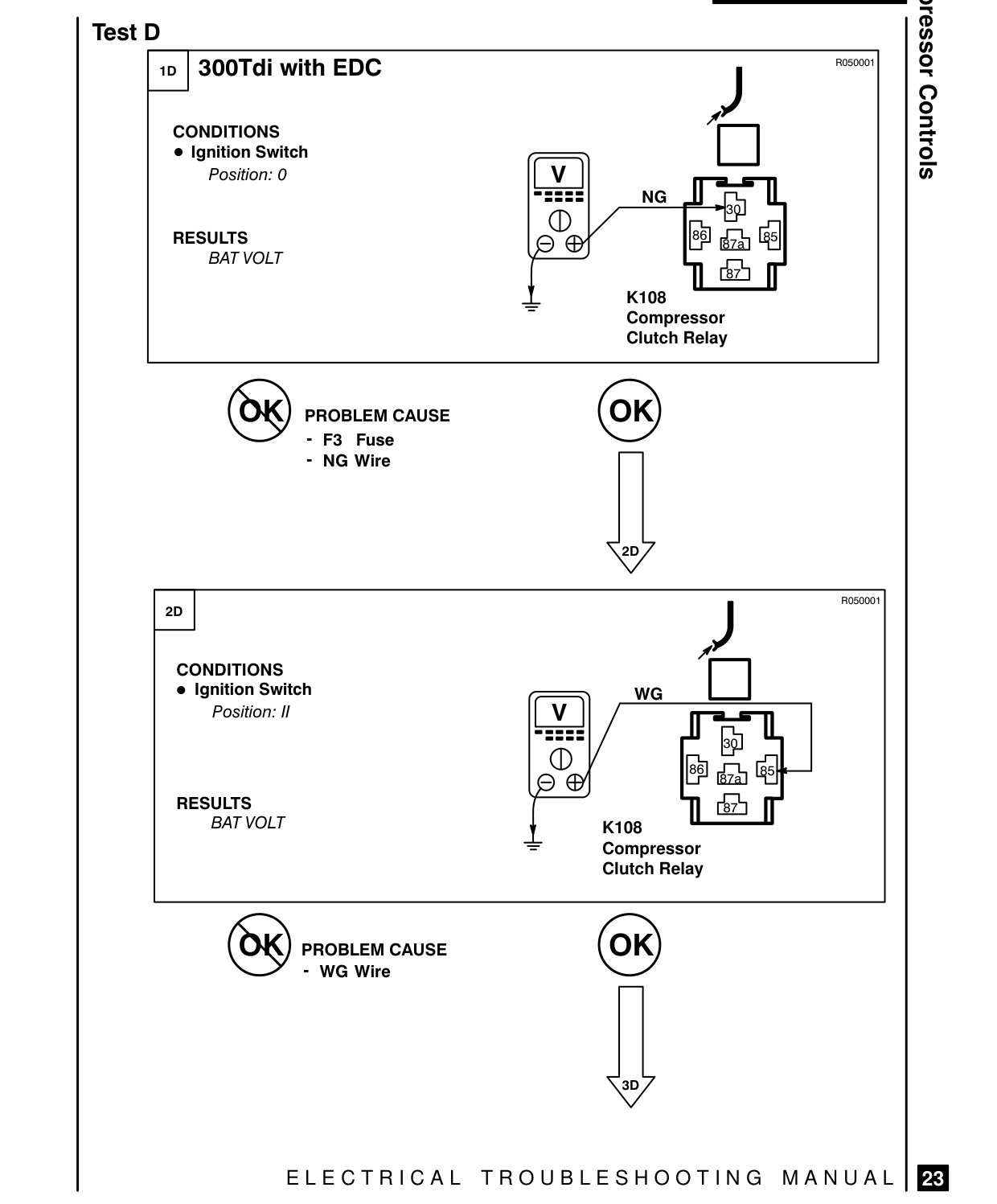

Test D 0 | 300Tdi with EDC CONDITIONS ® Ignition Switch Position: 0
RESULTS BAT VOLT
(09) PROBLEM CAUSE F3 Fuse - NG Wire
® Ignition Switch CONDITIONS
Position: II
RESULTS BAT VOLT
(59) PROBLEM CAUSE - WG Wire
ELECTRICAL TROUBLESHOOTING MANUAL | EH
snot]
NG O A Bra zs) IIE K108 Compressor Clutch Relay
R050001 WG
oh
K108 Compressor Clutch Relay
