Chassis and body dimensionsChassis body mounting points - front end
CHASSIS AND BODY DIMENSIONSCHASSIS DIMENSIONS
Chassis body mounting points - front end

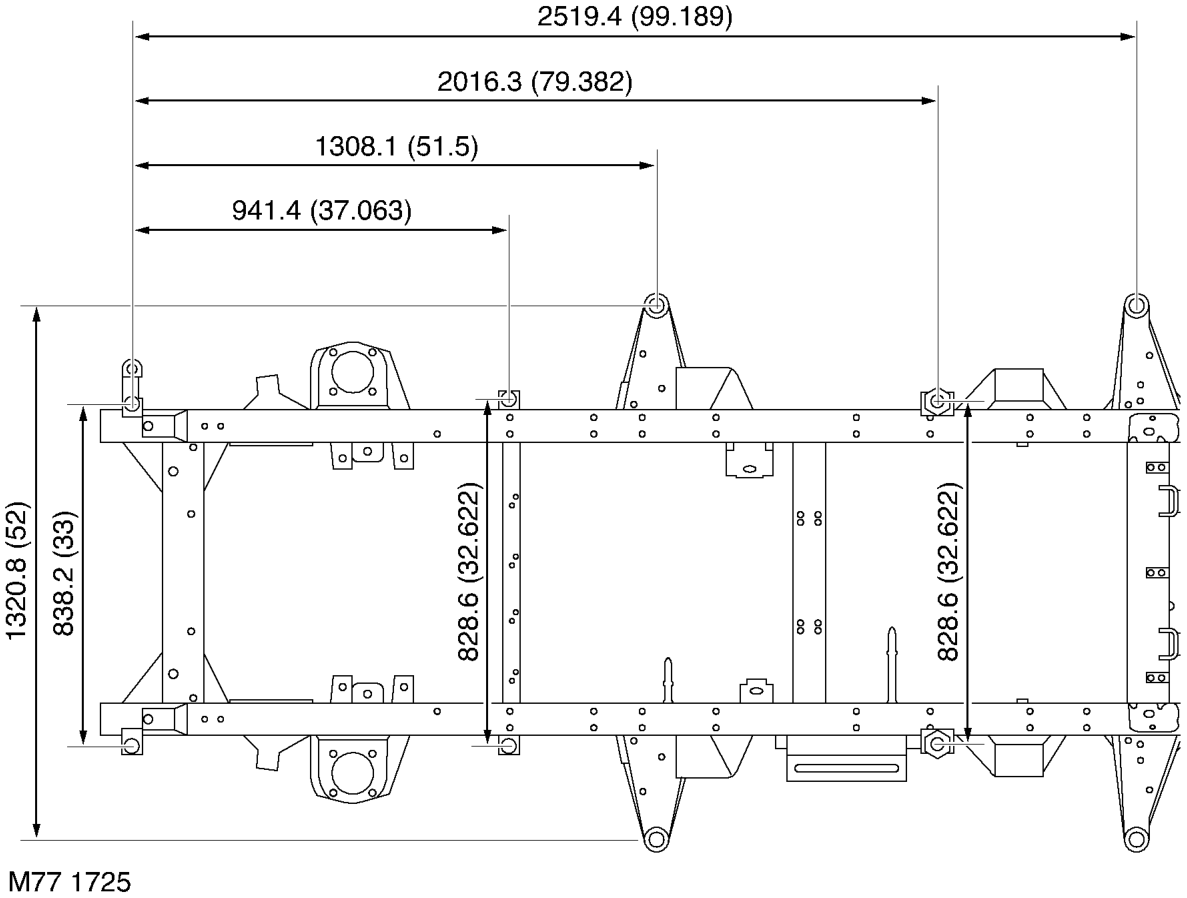

Plan view

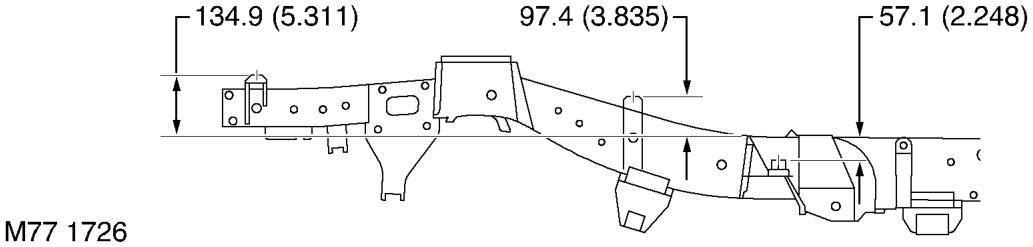

Side view
Figures shown outside brackets are metric measurements (millimetres) and those inside brackets are imperial measurements (inches).
